Option Modules NetVanta 4300/4400 Series
34 Copyright © 2019 ADTRAN, Inc. 61200890E2-34T
NetVanta Serial NIM (P/N 1200866E1)
The NetVanta Serial NIM (shown in Figure 14) can be configured by the user as a V.35, an X.21 (V.11), or
an EIA 530 interface. This module su
pports rates up to a maximum of 10 Mbps. An additional V.35
(ADTRAN P/N 1200873L1), X.21 (ADTRAN P/N 1200874L1), or EIA 530 (P/N 1200883L1) cable is
required (s
ee Caution below). See Table A-13 on page 60 for the Serial connector pinouts, and Table A-14
on page 61 for the DBU connector pinouts. An optional DIM is required
for dial backup applications.
Cable length for the Serial NIM should not exceed 25 feet.

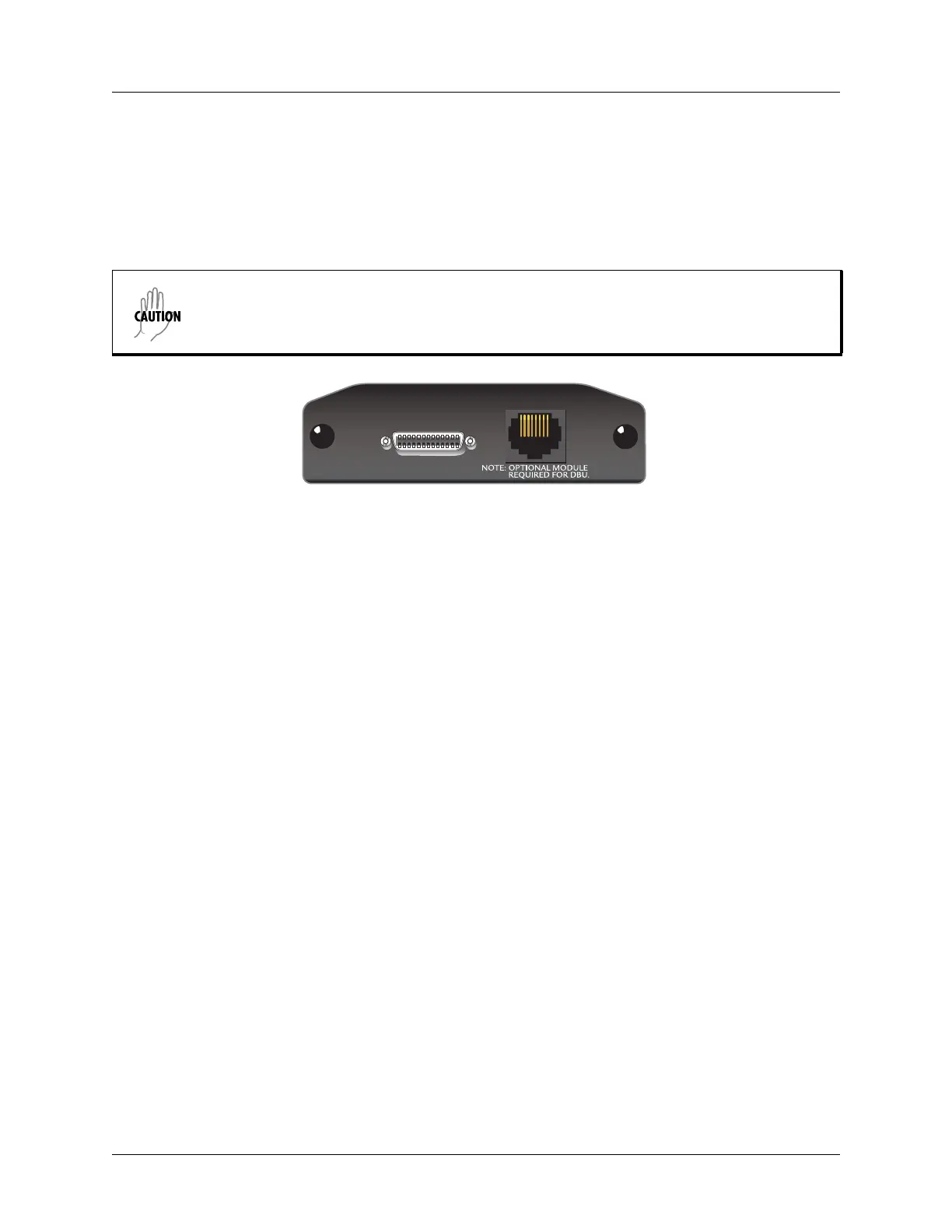

Figure 14. NetVanta Serial NIM
Features and Specifications
Operating Mode
• DTE only
Serial Interface
• Supported Standards: ISO 4903 (X.21),
CCITT V.35 Synchronous (V.35),
EIA 530 Synchronous
• Provides V.35, X.21 (V.11), or EIA 530
electrical interface
• Connector: 26-pin smart serial (DTE)
Compliance
• EMC - see Electromagnetic
Compatibility (EMC) Table on page 6.
• ETSI TBR1
• ETSI TBR2
• EN 60950-1
• IEC 60950-1
• UL/CUL 60950-1
• AS/NZS 60950-1
• RoHS Compliant (1200866E1 only)
(Telecommunications exemption)
Environmental
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 70°C
• Relative Humidity: Up to 95 percent,
noncondensing
Physical
• Dimensions: 2.75-inch W x 4.25-inch D
