NetVanta 4300/4400 Series Option Modules
61200890E2-34T Copyright © 2019 ADTRAN, Inc. 35
NetVanta ADSL NIM, Annex A (P/N 1202869E1)
The NetVanta ADSL, Annex A (see Figure 15) adds ADSL capability to the NetVanta 4300/4400 Series.
The module provides a single ADSL, ADSL2, or ADSL2+ network inte
rface to support rates up to 25
Mbps. See Table A-10 on page 59 for the pinouts. See Table A-14 on page 61 for the DBU connector
pinouts. An optional DIM is required for dial backup applications.

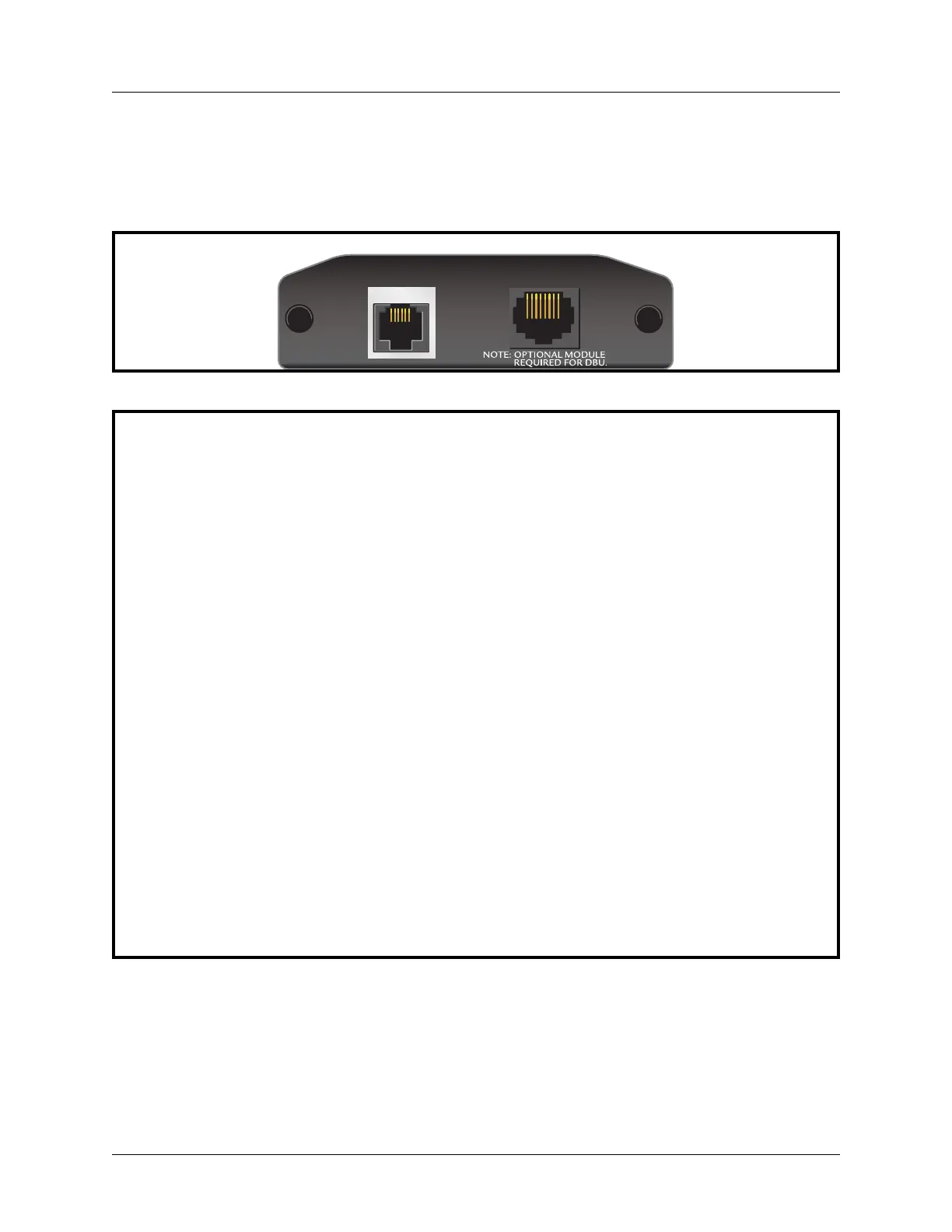

Figure 15. NetVanta ADSL NIM, Annex A
Features and Specifications
DSL Interface
• ADSL over POTS, Annex A
• Supported Standards:
– ITU-T G.992.1 Annex A (G.dmt)
– ITU-T G.992.2 Annex A (G.lite)
– ITU-T G.992.3 Annex A ADSL2
(G.dmt.bis)
– ITU-T G.992.5 Annex A ADSL2+
– ITU-T G.992.3 Annex L READSL2
– ANSI T1.413 Issue 2
• Connector: RJ-1C (6-pin jack, inner pair)
ATM
• Multiple Protocol over AAL5
(RFC 2684)
• PPP over ATM (RFC 2364)
• PPP over Ethernet (RFC 2516)
• ATM Forum UNI 3.1/4.0 PVC
• ATM class of service (UBR)
• ATM F5 OAM
• Up to 16 virtual circuits
Compliance
• EMC - see Electromagnetic
Compatibility (EMC) Table on page 6.
• ACTA/FCC Part 68
• AS/ACIF S043
• AS/ACIF S002
• IC CS-03
• EN 60950-1
• IEC 60950-1
• UL/CUL 60950-1
• AS/NZS 60950-1
• RoHS Compliant (1200869E1 only)
(Telecommunications exemption)
Environmental
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 70°C
• Relative Humidity: Up to 95 percent,
noncondensing
Physical
• Dimensions: 2.75-inch W x 4.25-inch D
