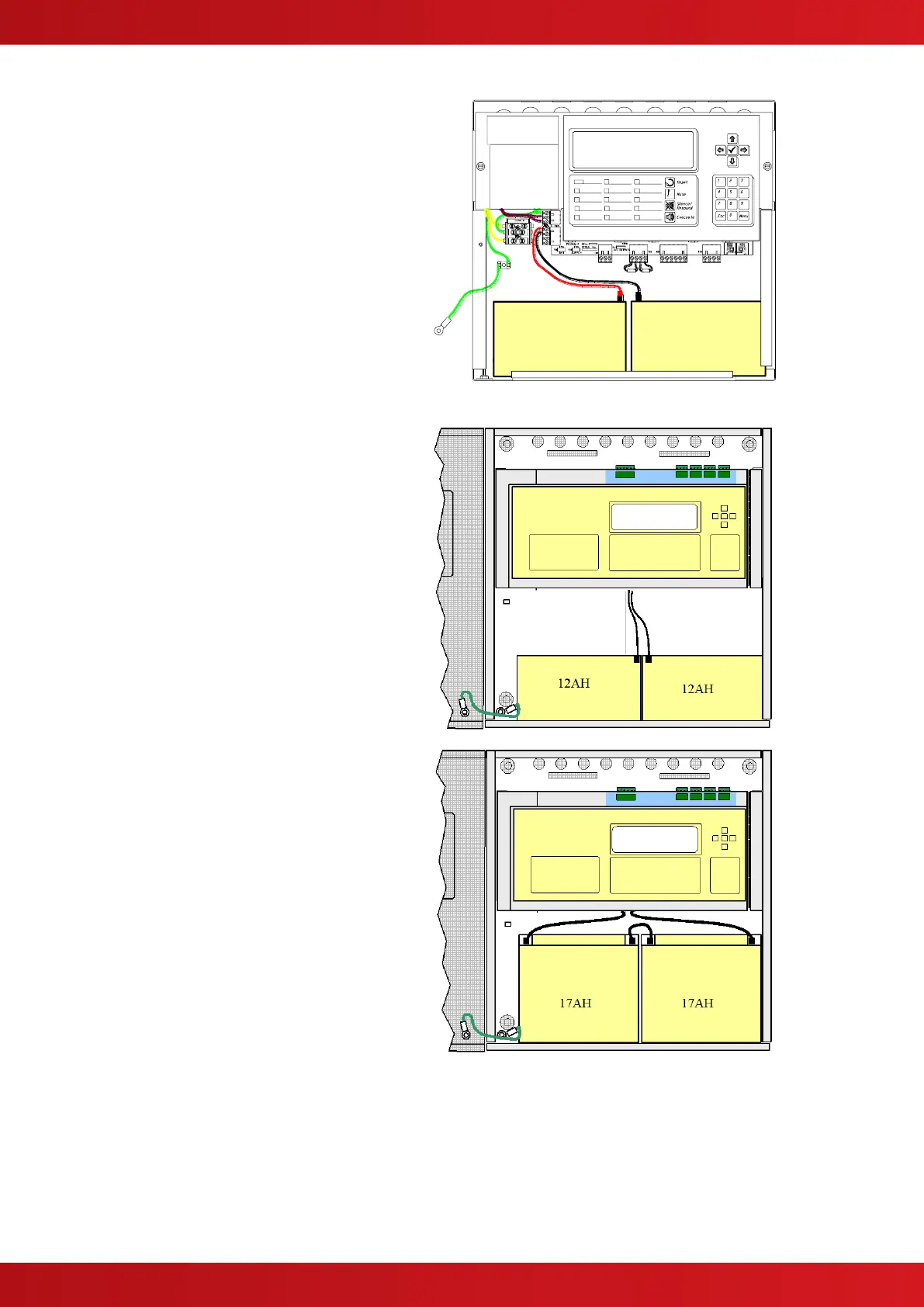

The diagram opposite shows the
recommended location and orientation
for the 7AH batteries within the panel.
For battery sizes greater than 7AH, the
batteries must be installed in a separate
enclosure suitable for fire protection use
with wiring connected to the panel
through rigid conduit.
Replacement Fuses
FS1 T5A 125V Anti-Surge
FS2 T5A 125V Anti-Surge
The diagrams opposite show the
recommended location and orientation
for the 12AH and 17AH batteries within
the panel.
For battery sizes greater than 17AH, use
the Mx-4400/D for batteries up to 38AH
and use the Mx-4400/LE large enclosure
variant for up to 48AH.
For battery sizes greater than 12AH, it
will be necessary to remove the spade
terminals fixed to the battery leads and
replace these with connection fixings
suitable for the installed batteries.
