Chapter 5 Troubleshooting and service
25
Anoxomat® III User’sGuide
5.3 To return an instrument for repair or replacement
1. Notify our service department to obtain an RMA
(Returned Material Authorization).
2. Remove the power cord and other accessories (printer
cables, etc.) from the instrument.
3. Remove the clamp(s) from the Gas Supply tubing
and slide the Gas Supply tubing o the fittings
on the instrument. Do not remove any fittings or
jar tubes from the instrument.
4. Carefully pack and send everything except supply
items. Be sure to prepay for any shipment to the
factory. Advanced Instruments cannot accept collect
shipments without prior factory approval. Please
insure the shipment or accept the damage risk.
5.4 Troubleshooting checks
Check operational requirements. If your instrument is
not operating as expected, review the operational
requirements listed in the product specifications and
recommended setup and operating procedures.
Check fuses. The power switch and fuse holder are
beside the power cord connector on the left side of the
instrument. Turn the power switch o and disconnect
the power cord. Use a small flat-bladed screwdriver to
pry open the fuse compartment door. Slide out each fuse
holder. Check for a blown fuse. Test the fuses with a
continuity checker or ohmmeter or replace with new
fuses.
Check error messages. The software of your instrument
is designed to display specific error messages that help
you discover the source of your problem.

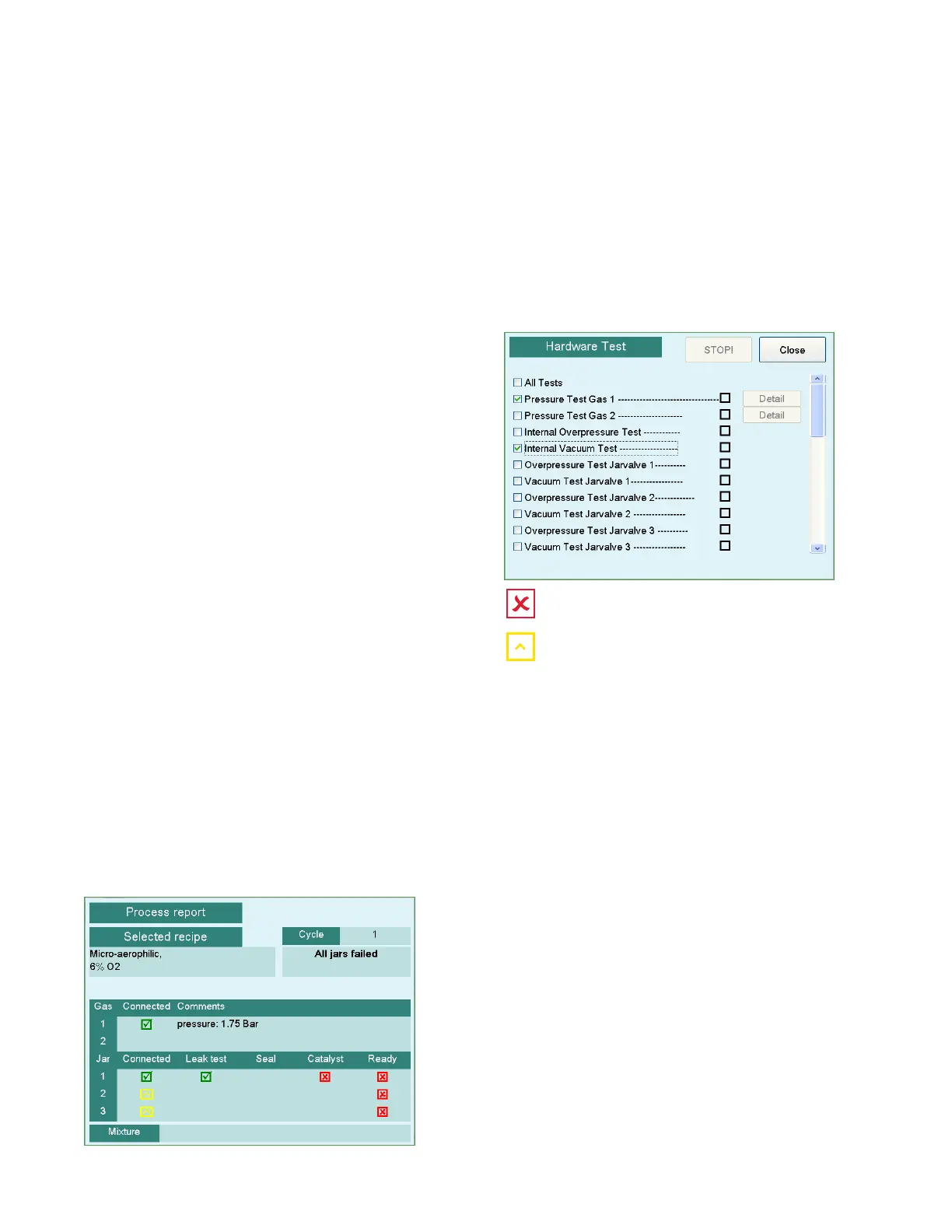

Process report errors
During a recipe run and after its finished, a “Process
report” appears on the screen.
5.5 Hardware test program
You may need to perform hardware tests on the system.
Hardware tests are performed without jars so that
system failures can be identified. Contact your Anoxomat
dealer or Advanced Instruments before performing
hardware tests.
Appears if a jar connection is not used or cannot
be used.
Appears if vacuum is detected in the jar.
5.6 Fuse replacement
If your instrument is not functioning because of blown
fuses, you need to replace the fuses:
1. Switch the power switch to the o position and
disconnect the power cord.
2. Open the door covering the fuses.
3. Check continuity of each fuse with a digital multimeter.
4. Replace fuses that show open circuit.
5. Close fuse door, attach power cord and switch
power on.
