Fuse Replacement
70013R
Reference: Use this instruction with replace-
ment part 70013R.
Tools Needed: Small flat-bladed screwdriver.
Warning-Hazardous Voltage
CAUTION: Improper connections
may cause damage to the instrument.
Instruction:
1. Turn off the power and unplug the instru-
ment.
2. Insert a small flat-bladed screwdriver into
the recesses between the fuse holder and
the power entry module. Carefully pry
open the fuse holder and remove it from
the power entry module.
Note: Use caution when removing the fuse
holder from the power entry module.
3. Remove the old fuses. Install the new
fuses by placing them in the fuse holder
brackets.
4. Reinstall the fuse holder in the power
entry module. Make sure that the fuse
holder is fully seated in the recess.
5. Reconnect the power cord and turn on the
instrument.
332P013 Rev0
(3325 Service Manual)
Page 1 of 1

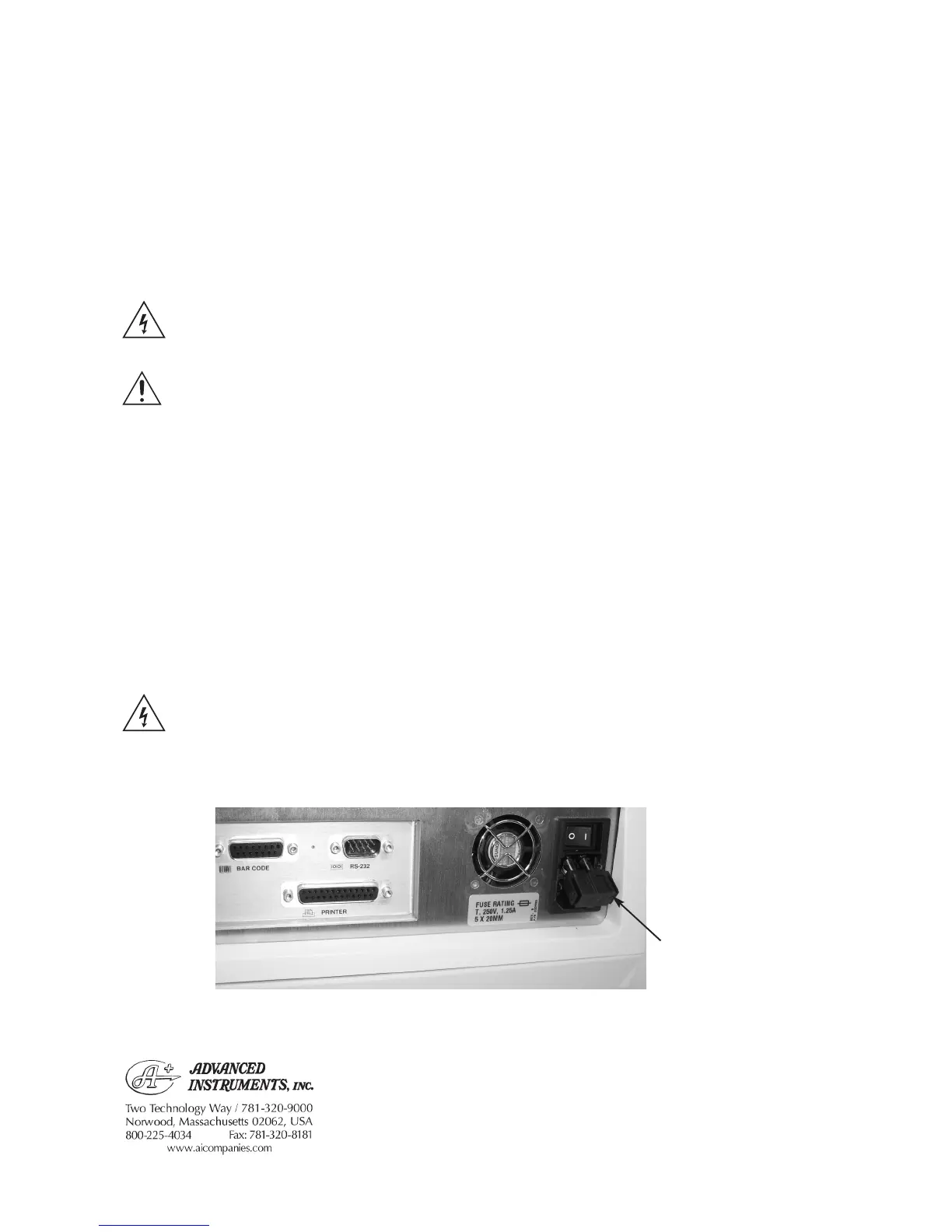

FUSE HOLDER
For additional information or technical assistance, please
contact Advanced Instruments Hot-Line
®
Service Center.
(U.S. 1-800-225-4034, outside North America +US 1-781-
320-9000. After normal business hours, dial extension 2191.)
