Actuator Switch Replacement
332318R
Reference: Use this instruction with replace-
ment part 332318R.
Tools Needed: Cross-point screwdrivers,
3/16-inch nut driver or
wrench.
Warning-Hazardous Voltage
CAUTION: Improper connections
may cause damage to the instrument.
Instruction:
1. Turn off the power and unplug the instru-
ment.

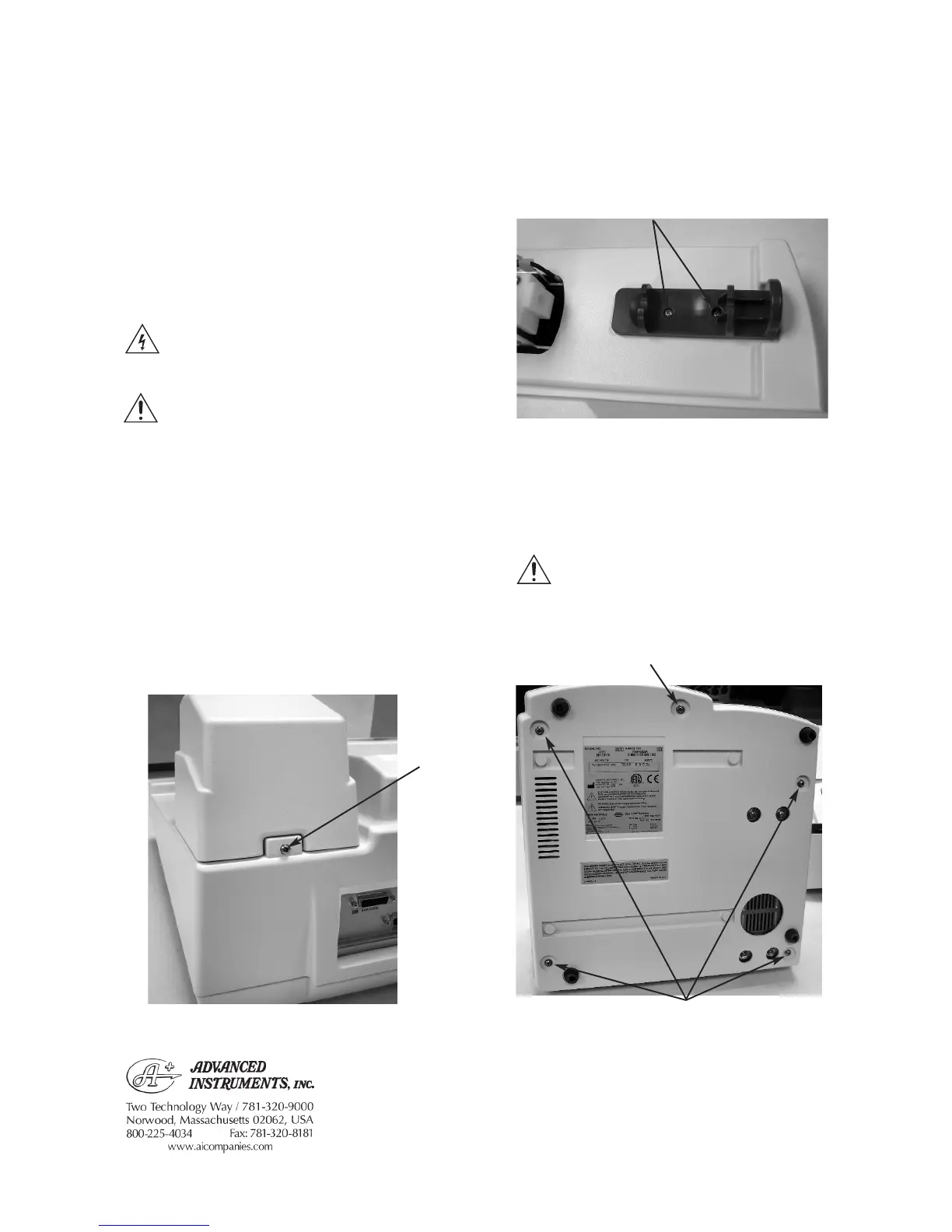

2. Remove the screw (A) securing the sole-
noid cover, and remove the cover.
3. Remove the two screws (B) securing the
sampler cradle, and remove the cradle.
4. Carefully tip the instrument to rest on the
back panel and remove the five screws
(C) securing the top cover.
Note: Use caution when separating the top
and bottom covers to avoid damaging
the display and keypad cable connec-
tions.
332P318 Rev1
(3325 Service Manual)
Page 1 of 3
A
B
For additional information or technical assistance, please
contact Advanced Instruments Hot-Line
®
Service Center.
(U.S. 1-800-225-4034, outside North America +US 1-781-
320-9000. After normal business hours, dial extension 2191.)
C
C (Some units may not have this screw.)
To Next Page
