332P725 Rev1
(3325 Service Manual)
Page 2 of 3

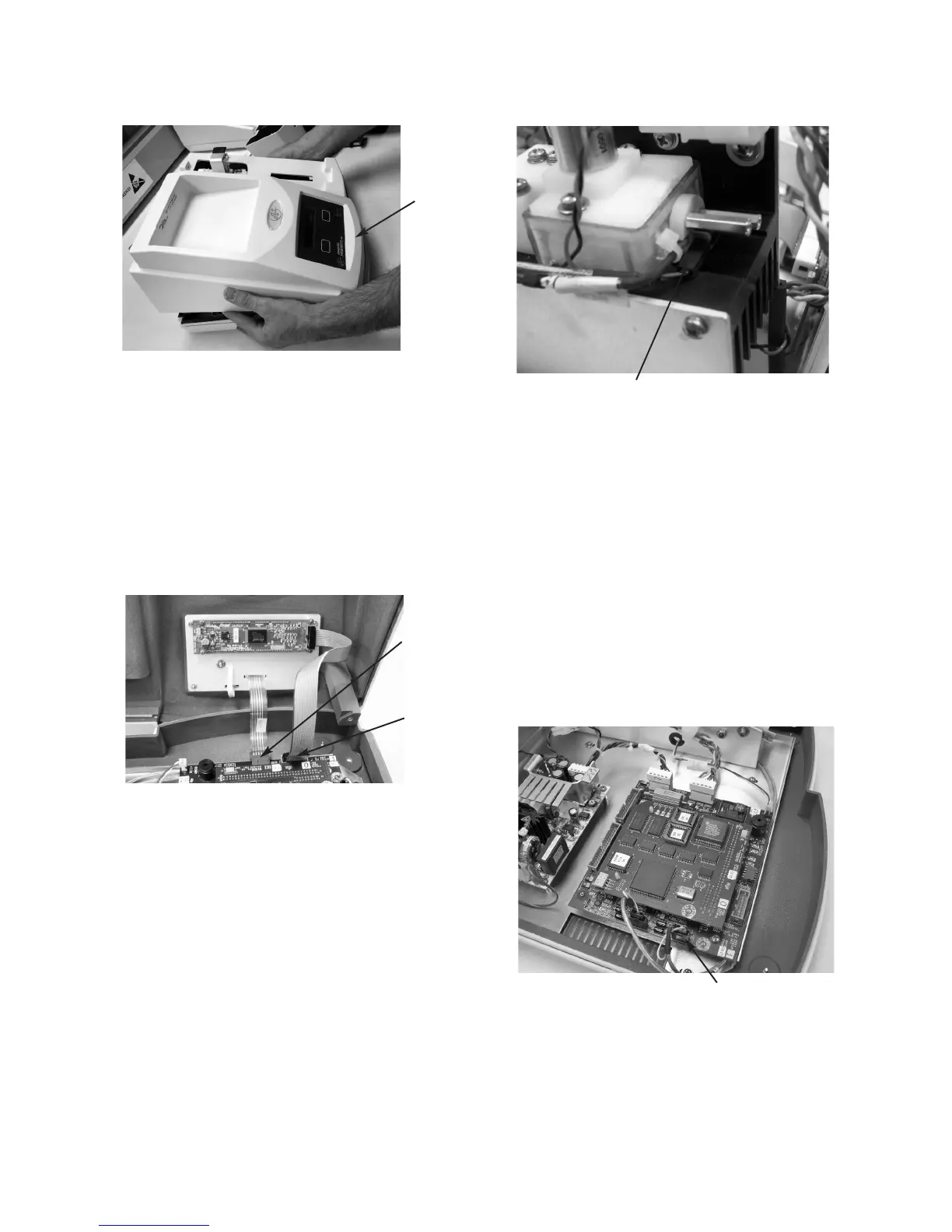

5. Return the instrument to its upright posi-
tion and carefully rotate the rear of the
cover up and away from the bottom cover
while keeping the front portion close to
the bottom cover (D).
6. Unplug the keypad cable (E) and the dis-
play cable (F) from the connectors on the
circuit board assembly, and remove the
instrument cover.
7. Disconnect the sample probe cable from
the sample probe (G) and from the circuit
board assembly (H). Remove the cable.
8. Connect the new sample probe cable to
the connector on the circuit board assem-
bly (H).
9. Route the cable under the front of the cir-
cuit board assembly and into the front of
the sample handling assembly. Pass the
end of the cable through the grommet in
the right side of the sample handling
assembly bracket, and through the cable
clamp (I) on the right side of the cooling
assembly.
10. Plug the sample probe cable into the sam-
ple probe connector (G).
11. Reassemble the instrument by reversing
steps 1 - 6, noting the proper pin 1 orien-
tations for all cable assemblies and their
connectors.
G
H
D
E
F
To Next Page
