ADAM-2000 Series User Manual 8
1.4 Mounting
ADAM-2000 series modules are designed as compact units and are allowed to be
installed in the field site with the following method.
1.4.1 Panel Mounting
Each ADAM-2000 Module is packed with a plastic panel mounting bracket. Users
can refer the dimensions of the bracket to configure an optimal placement in a panel
or cabinet. Fix the bracket first, then, fix the ADAM-2000 module on the bracket.

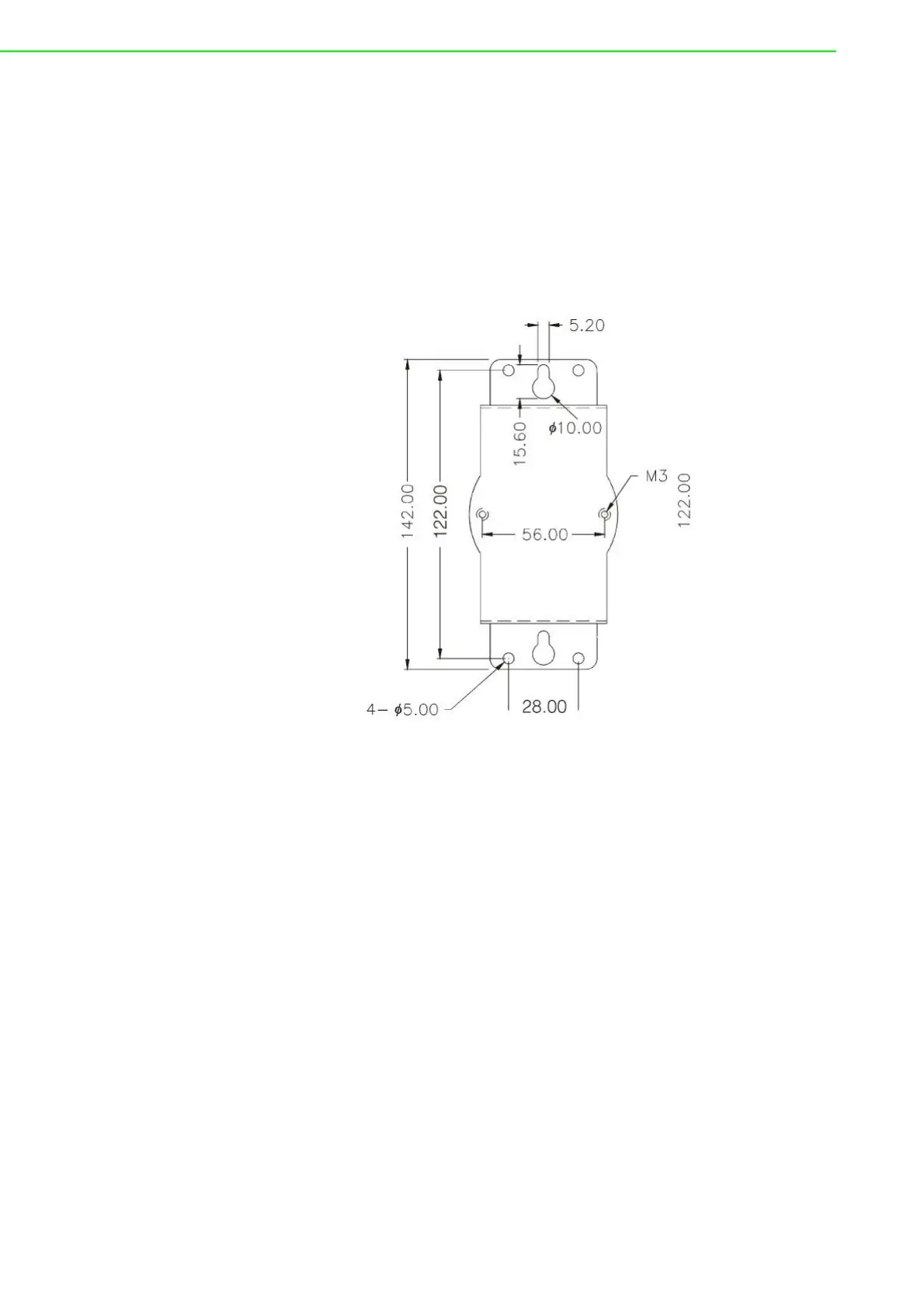

Figure 1.5 Panel Mounting Dimensions
