Advantech ADAM-2510Z User Manual

25 ADAM-2000 Series User Manual
Chapter 3 Installation Guide

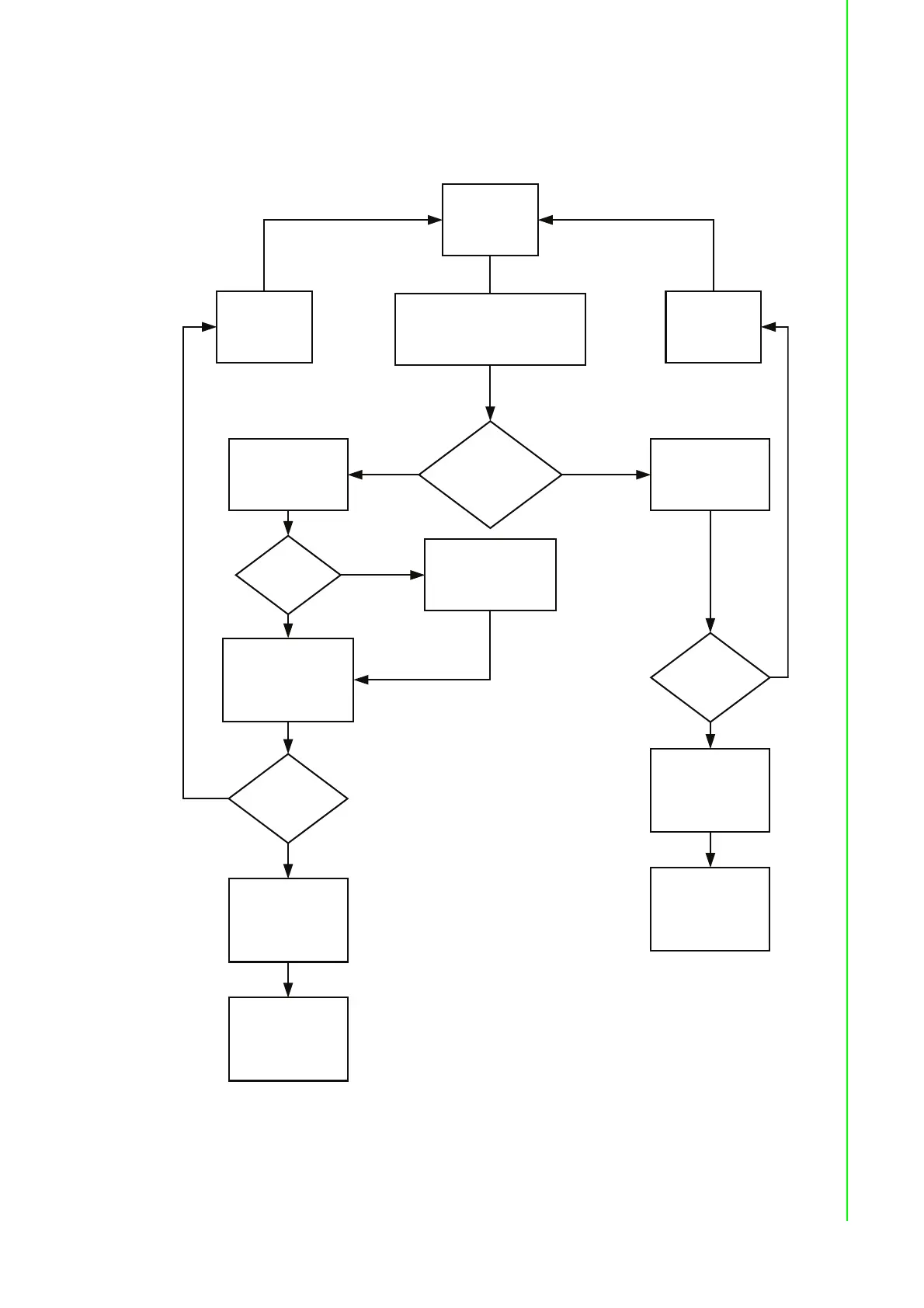

3.2.2.3 Router Configuration Flowchart
The section tells the user how to setup the Router to enhance the wireless communi-
cation range and coverage of a PAN for a wireless sensor network.
Install Power
Press Function Button 3
times to join the PAN,
refer to the Section 3.5
for more information.
Amber LED turns on.
Error LED blinks.
Please refer to
Appendix C for
troubleshooting.
Please refer to
Appendix C for
troubleshooting.
All LEDs turn On
(Green LED turns on while powering by
external power)
Configured ready for
Normal Mode
Initial Mode:
Status LED turns on
Normal Mode:
Status LED turns off,
Error LED blinks.
Error LED turns off
Successfully join a PAN
with default PAN ID and
RF channel. Amber
LED indicating Pair ID.
Successfully join a PAN
with user defined PAN
ID and RF channel.
Open ADAM .NET
Utility to configure the
ADAM-2000 series,
refer to Chapter 4 for
more information.
Repeat and pass data/
signal from end nodes
to coordinator.
Error LED turns off
Join PAN with
Pair ID 1
Press Function Button 5
times to change Pair ID,
refer to Section 3.5 for
more information.
No Yes
No
No
No
Yes
Yes
Yes
