45 ADAM-2000 Series User Manual
Chapter 4 Software Configuration Guide
The function allows user to put a picture on the background and drag the compo-
nents to any positions of the background. With the function, user can easily maintain
and check the status of the ADAM-2000 network.

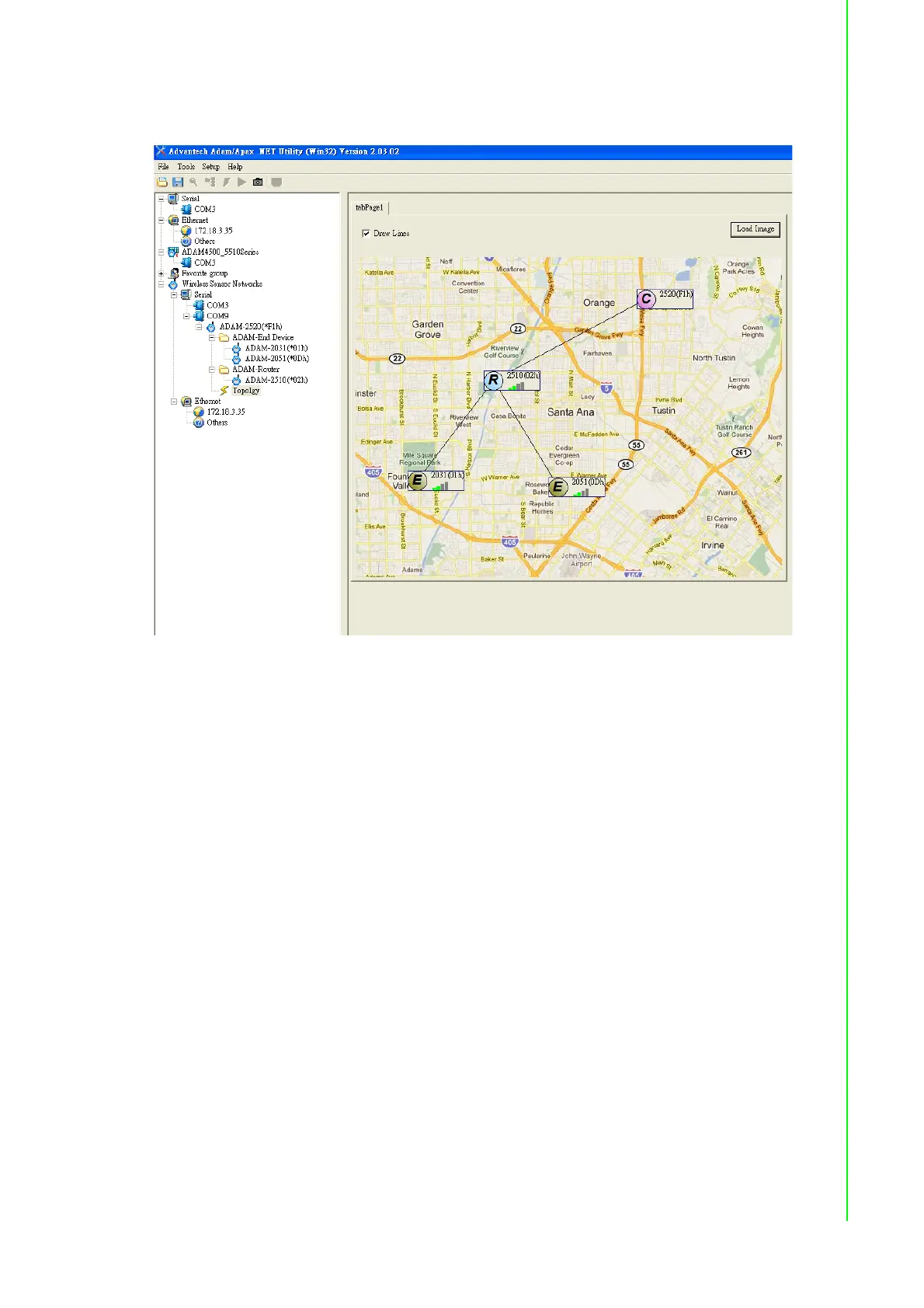

Figure 4.25 Topology of ADAM-2000 network with specific background image
