ADAM-4000 Series User Manual 42
3.7.1 Application Wiring

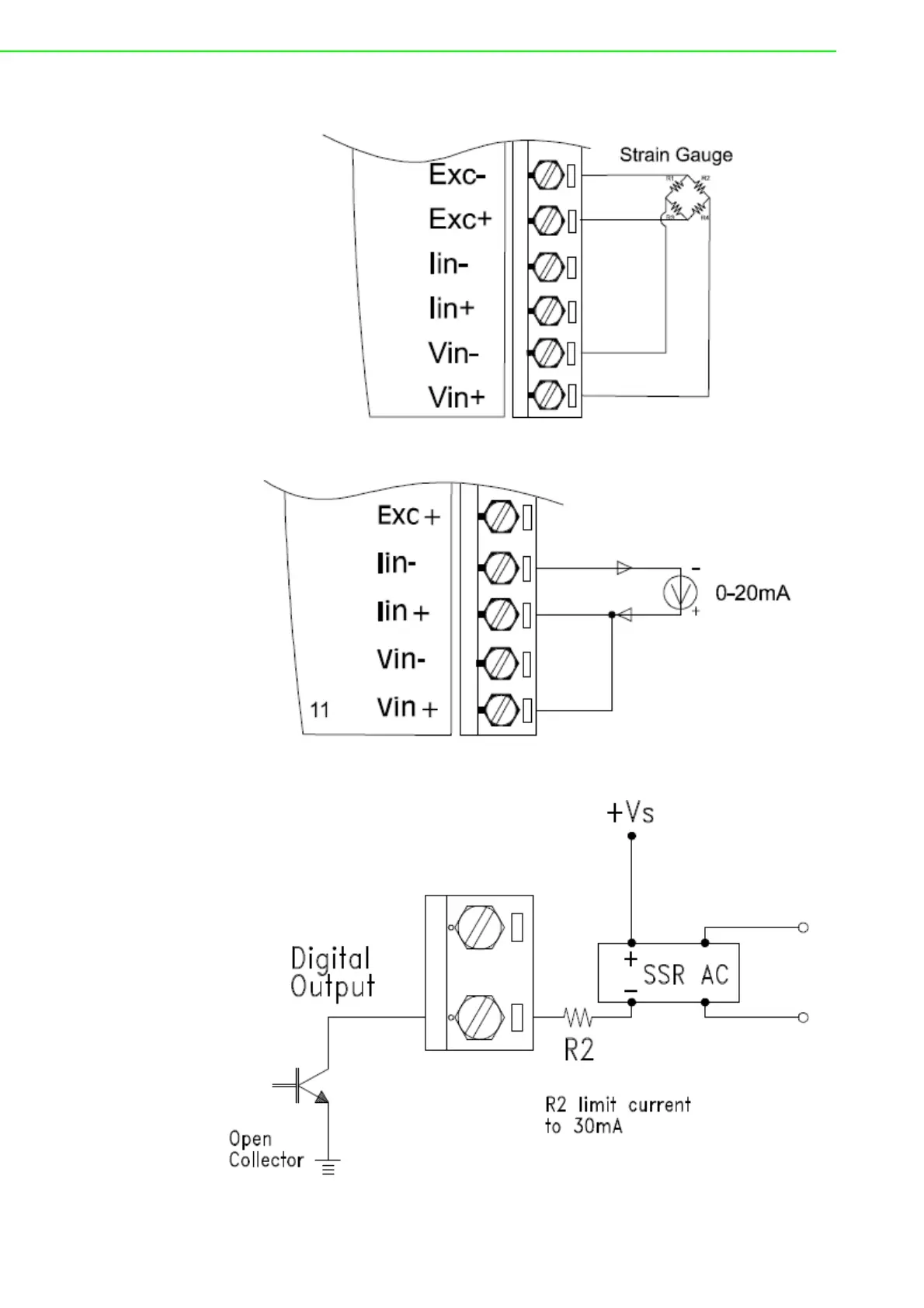

Figure 3.22 ADAM-4016 Strain Gauge Voltage Input Wiring Diagram
Figure 3.23 ADAM-4016 Strain Gauge Current Input Wiring Diagram
Figure 3.24 ADAM-4016 Digital Output Wiring Diagram Used with SSR
