AIMB-742 User’s Manual 20
2.5 USB Ports (CN6/CN63)
The AIMB-742 provides up to eight ports of USB (Universal Serial Bus)
interface, which gives complete Plug & Play and hot swapping for up to
127 external devices.The USB interface complies with USB Specification
Rev. 2.0 support transmission rate up to 480 Mbps and is fuse-protected.
The USB interface can be disabled in the system BIOS setup.
2.6 VGA Connector (CN7)
The AIMB-742 includes a VGA interface that can drive conventional
CRT displays. CN7 is a standard 15-pin D-SUB connector commonly
used for VGA. Pin assignments for CRT connector CN7 are detailed in
Appendix B.

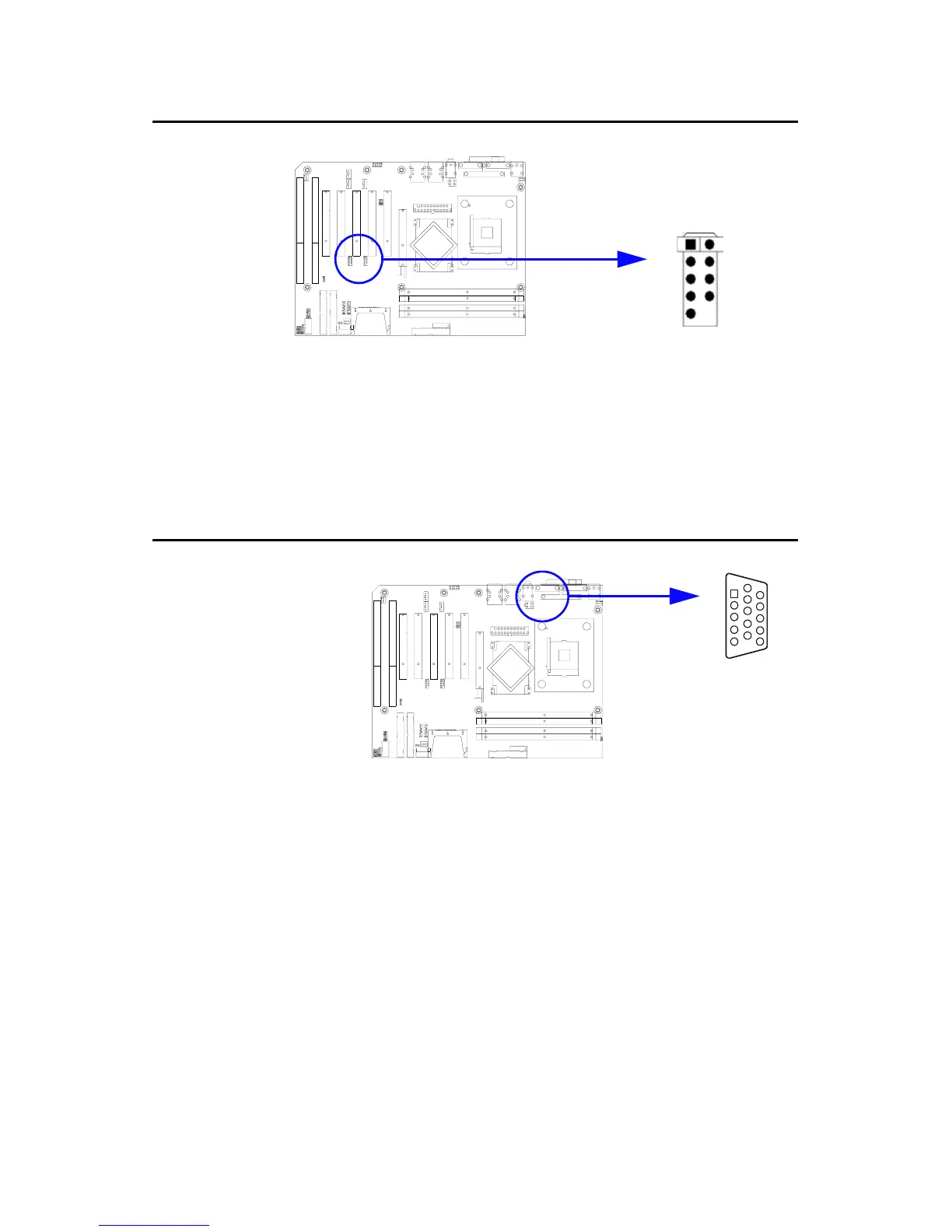

CN6/CN63
CN7
