Chapter 7
7.2 Windows XP Driver Setup
1.

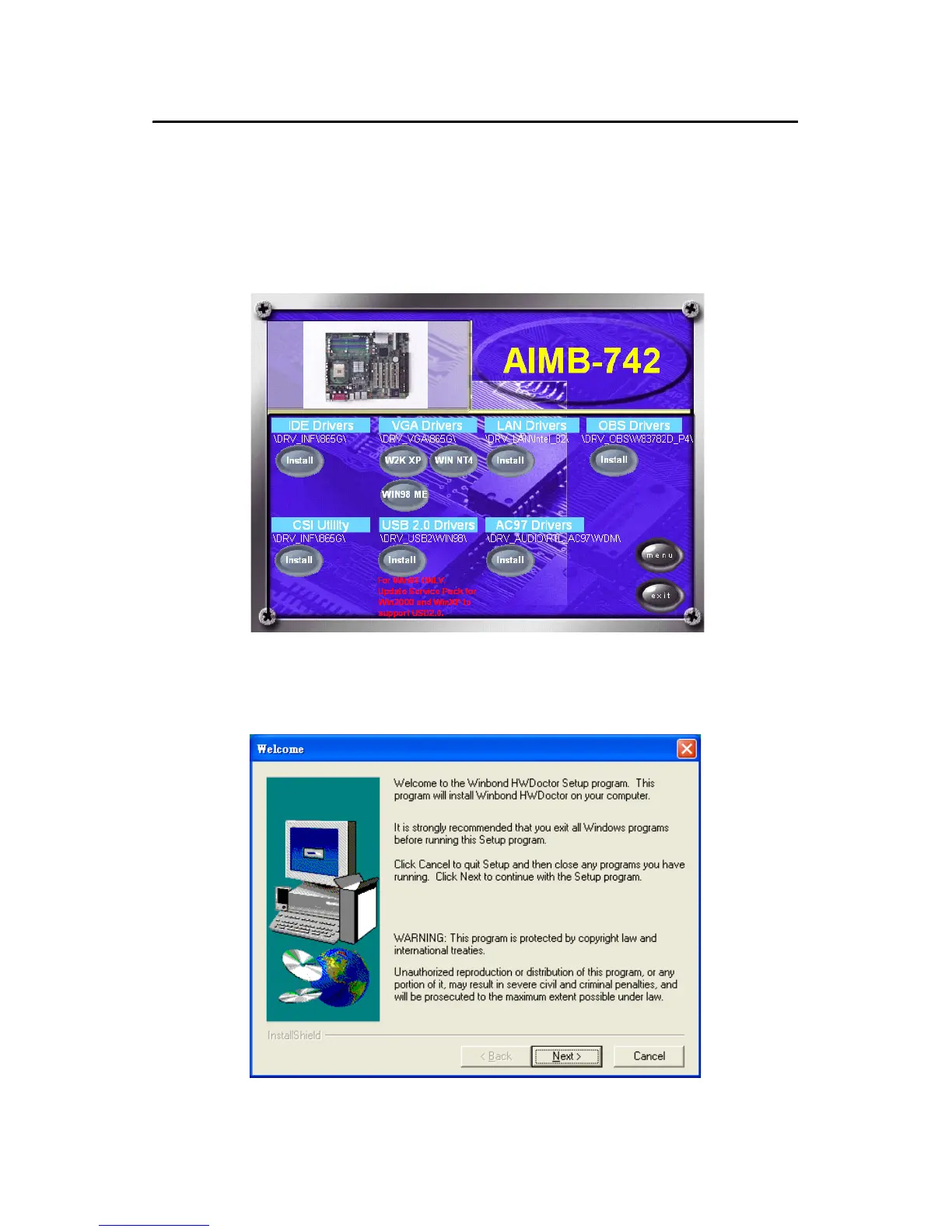

Insert the driver CD int
o your system's CD-ROM drive. In a few
seconds, the software installation main menu appears, as shown in
the following figure. Clic
k on the "Install" button under the "OBS
DRIVERS" heading.
2.
Click "Next
" when you
see the following message.
86
88
