2.6 Integrated Peripherals

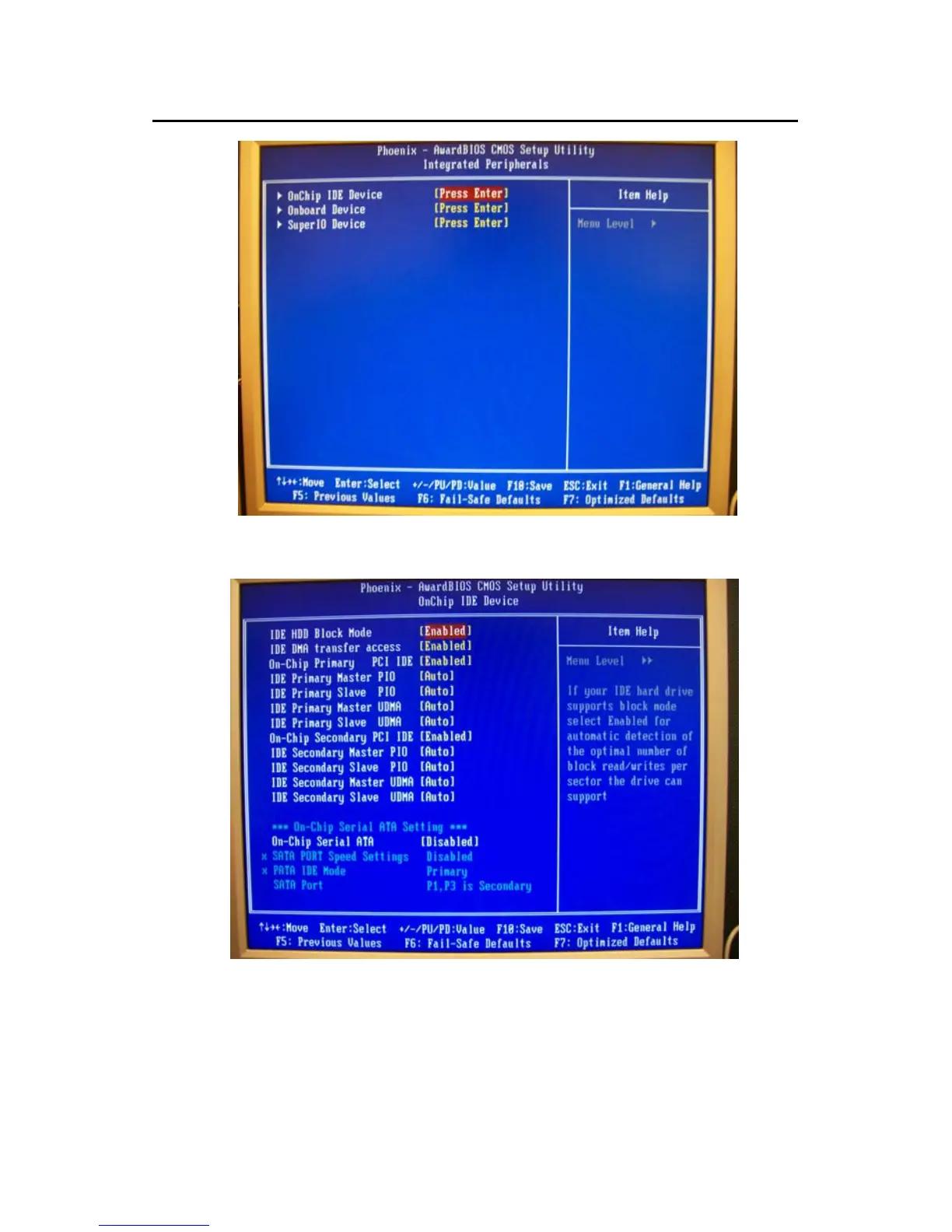

Figure 2.5: Integrated peripherals
Figure 2.6: On-Chip IDE Device
2.6.1 IDE HDD Block Mode
If your IDE hard drive supports block mode select Enabled for automatic detection
of
the optimal number of block read/writes per sector the drive can support.
AIMB-763 2-11
