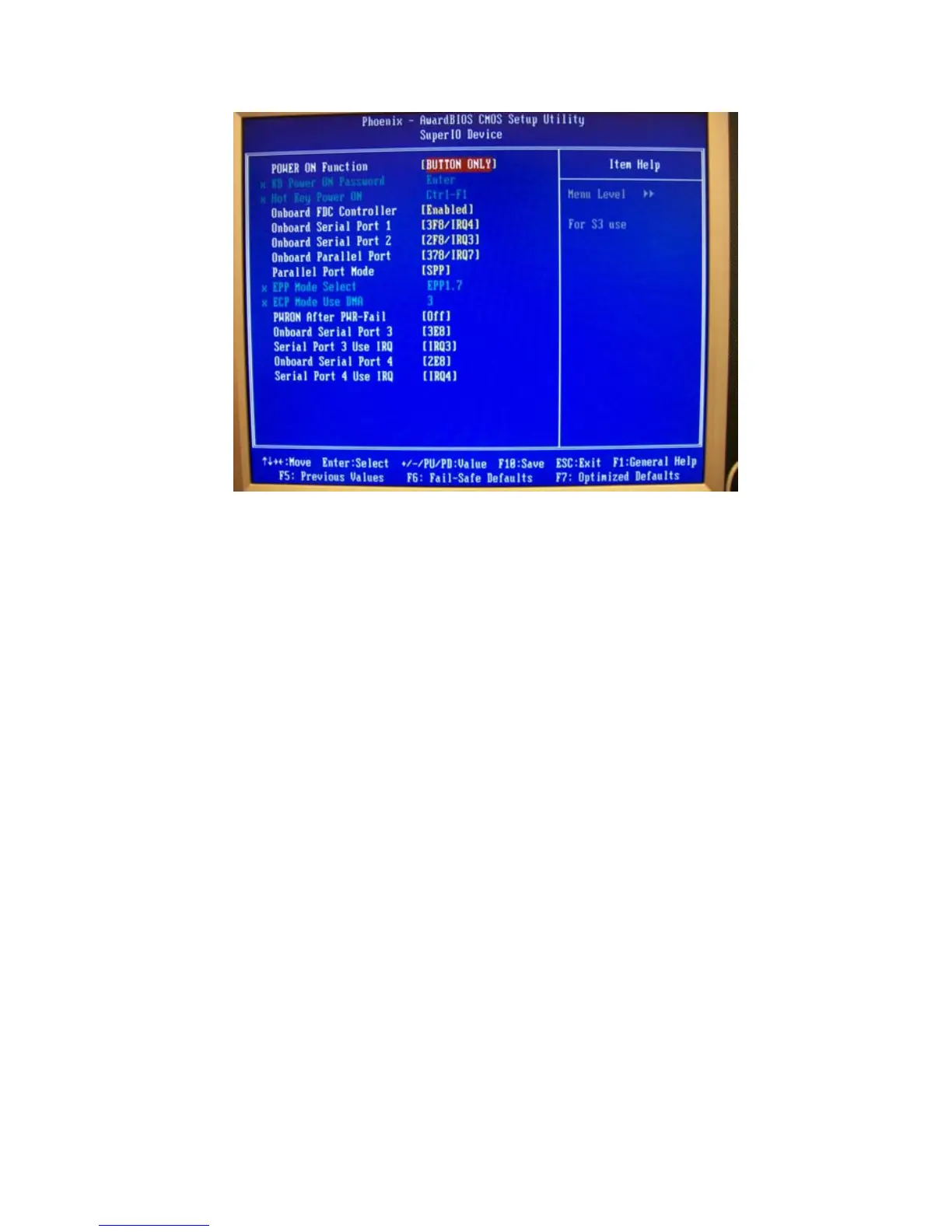

Figure
2.8: Super I/O Device
2.6.14
POWER ON Function
This feature allows you to wake up the system using any of the listed options. The
selections are “Hot KEY”, “Mouse Left”, “Mouse Right”, “Any KEY” and “BUTTON
ONLY”.
2.6.15
Hot Key Power On
Awaken the system by pressing the hot key button. The choices are “Ctrl-F1”, “Ctrl-
F2”, “Ctrl-F3” to “Ctrl-F8”.
2.6.16
Onboard FDC Controller
When enabled, this field allows you to connect your floppy disk drives to the onboard
floppy disk drive connector instead of a
separate controller card.
If you want to
use
a different
controller card
to connect
the floppy disk
drives, set
this field to
Disabled.
2.6.17
Onboard Serial Port 1
The settings are “3F8/IRQ4”, “2F8/IRQ3”, “3E8/IRQ4”, “2E8/IRQ3”, and
“Disabled” for the on-board serial connector.
2.6.18
Onboard Serial Port 2
The settings are “3F8/IRQ4”, “2F8/IRQ3”, “3E8/IRQ4”, “2E8/IRQ3”, and
“Disabled” for the on-board serial connector.
2-14 Chapter 2: BIOS setup
