1.6.2 Installing the CPU heatsink and fan
The Intel
®
Pentium
®
D / Pentium
®
4 / Celeron
®
/ Core™2 Duo LGA775 processor
requires a specially designed heatsink and fan assembly to ensure optimum
thermal condition and performance.
• Install the motherboard to the chassis before you install the CPU fan and
heatsink assembly
• When you buy a boxed Intel
®
Pentium
®
D / Pentium
®
4 / Celeron
®
/ Core™
2 Duo processor, the package
includes the CPU fan and heatsink assembly. If you buy a CPU separately,
make sure that you use only Intel
®
-certied multi-directional heatsink and
fan.
• Your Intel
®
Pentium
®
D / Pentium
®
4 / Celeron
®
/ Core™2 Duo LGA775
heatsink and fan assembly comes in a push-pin design and requires no
tool to install.
If you purchased a separate CPU heatsink and fan assembly, make sure that
a Thermal Interface Material is properly applied to the CPU heatsink or CPU
before you install the heatsink and fan assembly.
To install the CPU heatsink and fan:

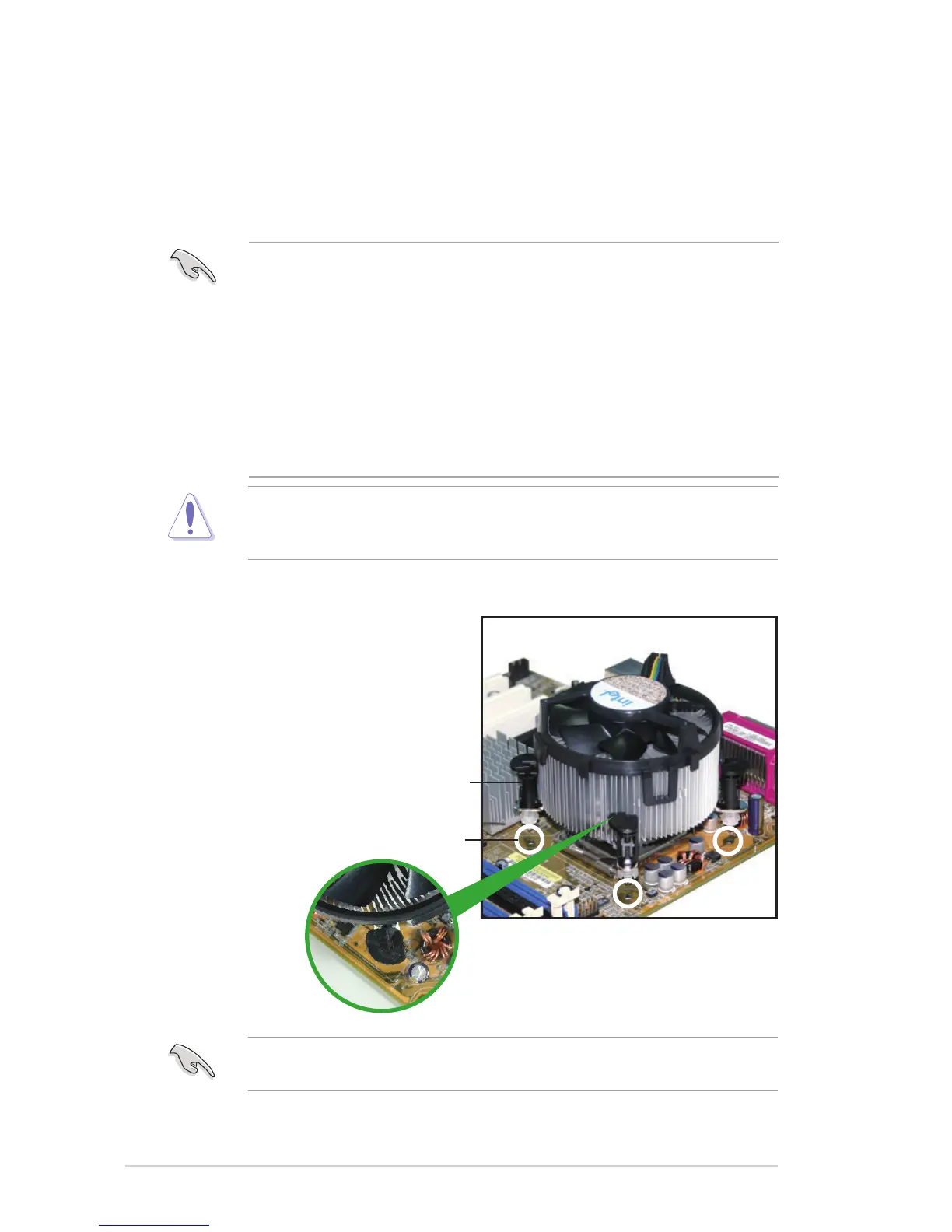

1. Place the heatsink on top of the
installed CPU, making sure that the
four fasteners match the holes on
the motherboard.
Fastener
Motherboard hole
Make sure each fastener is oriented as shown, with the narrow groove directed
outward.
