Chapter 2 Hardware Installation

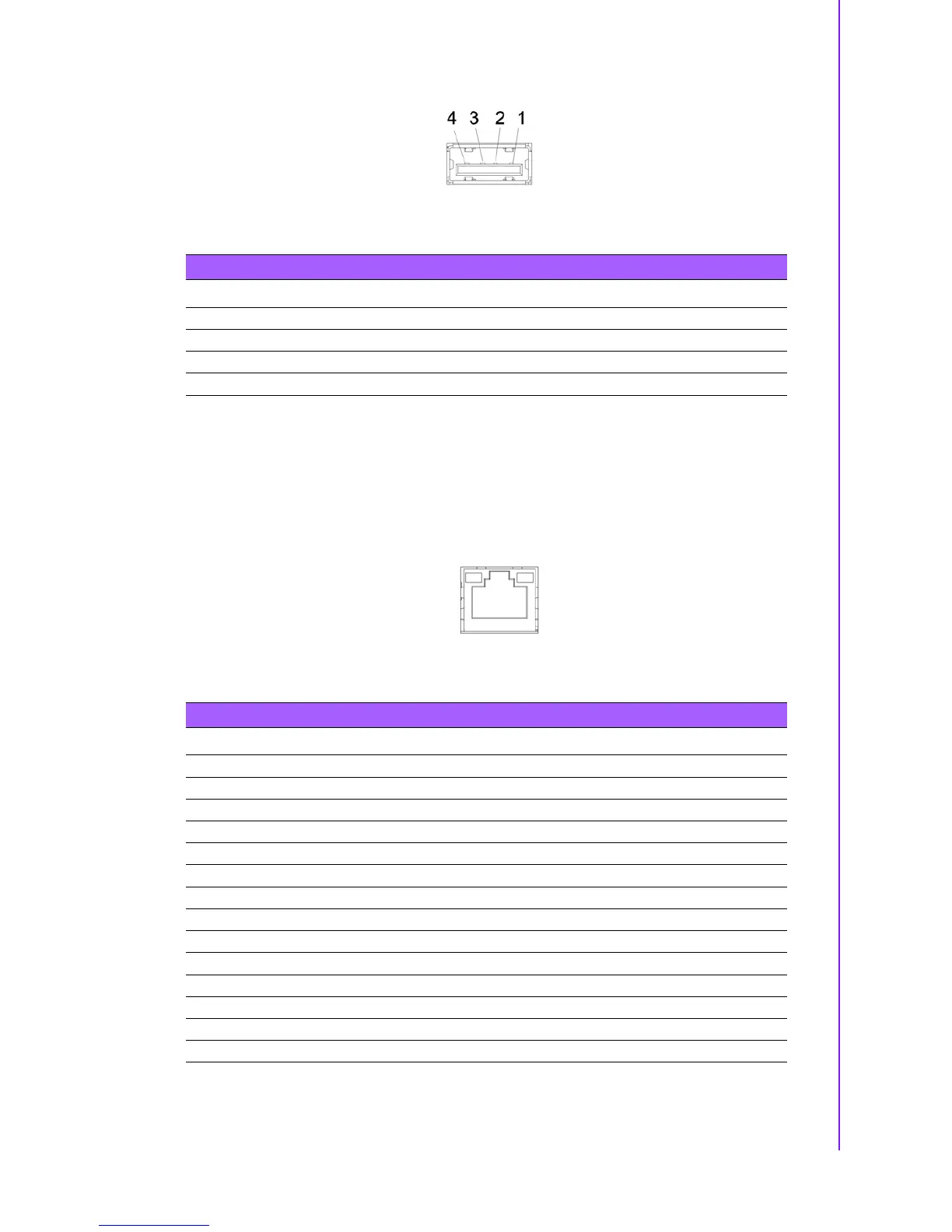

Figure 2.4 USB connector
2.2.3 Ethernet Connector (LAN)
DS-570 provides two RJ45 LAN interface connectors (1 x LAN in front-side; 1 x LAN
in rear-side), they are fully compliant with IEEE 802.3u 10/100/1000 Base-T CSMA/
CD standards. The Ethernet port provides a standard RJ-45 jack connector with LED
indicators on the front side to show its Active/Link status and speed status.
Figure 2.5 LAN connector
Table 2.1: USB Port Pin Assignments
Pin Signal Name
1VCC
2 USB Data-
3 USB Data+
4GND
Table 2.2: LAN Connector Pin Assignments
Pin Signal Name
1MDI0+
2MDI0-
3MDI1+
4MDI1-
5GND
6GND
7MDI2+
8MDI2-
9 M D I 3 +
10 MDI3-
11 VCC
12 ACT
13 L in k1 00 #
14 Link1000#
