DS-570 User Manual 14
2.4.2 HDD Installation
1. Assemble the 2.5-inch SATA HDD on HDD bracket with 4 HDD screws.
2. Install the HDD module into the system.
3. Assemble the HDD cover back with 2 screws.

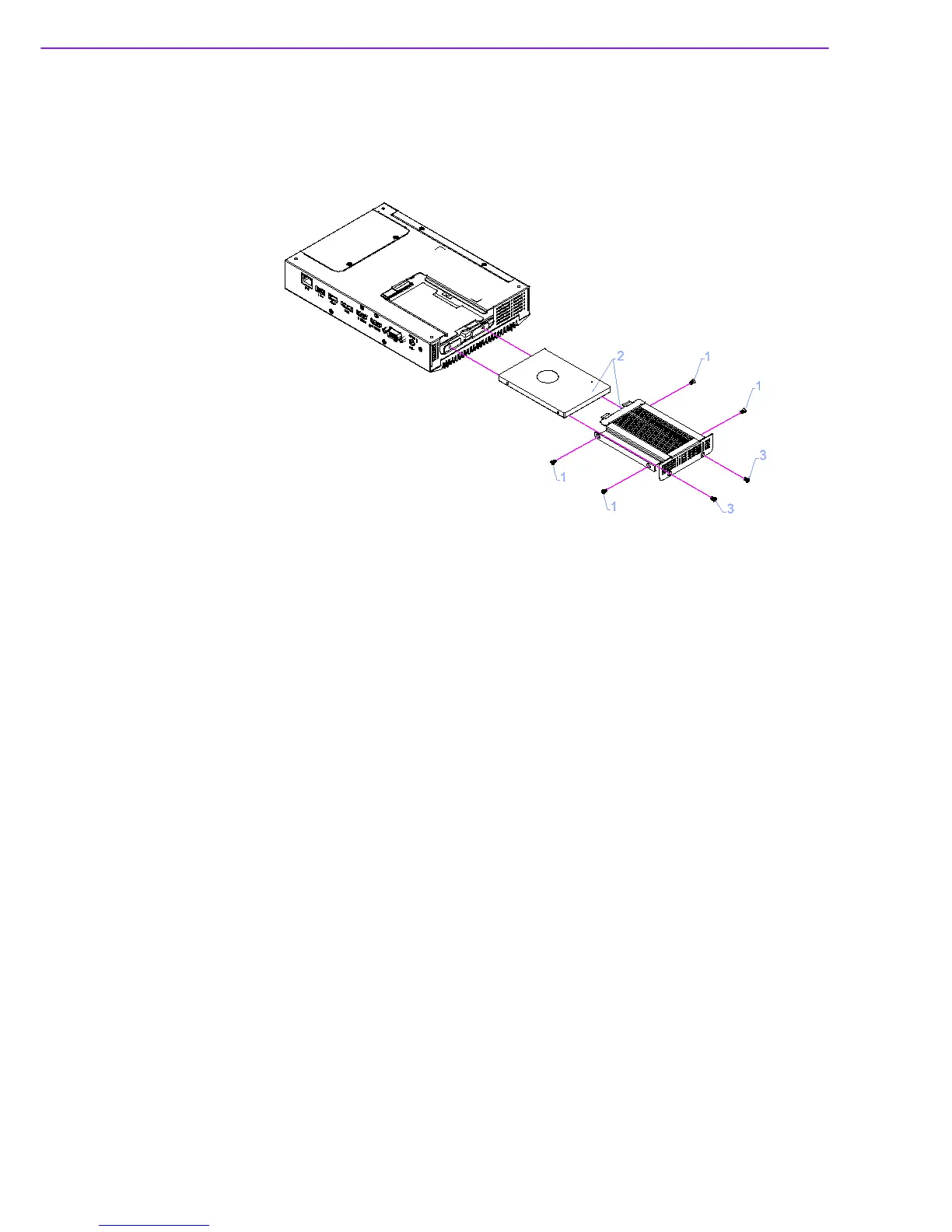

Figure 2.15 HDD installation
