13
DS-570 User Manual
Chapter 2
Hardware
Installation
2.4
Hardware Inst
allation
2.4.1
Memory Inst
allation
1.
Remove Mini-PCIe cover
, HDD cover
by loosening the 5 fixing screws
2.
Remove the heatsink by lo
osening the 4 fixing screws
on front and rear panels,
and 2 fixing screws inside the chassis
3.
Insert the memory module into memory socket
s
4.
Reverse the above-mentioned step
s to assemble the system

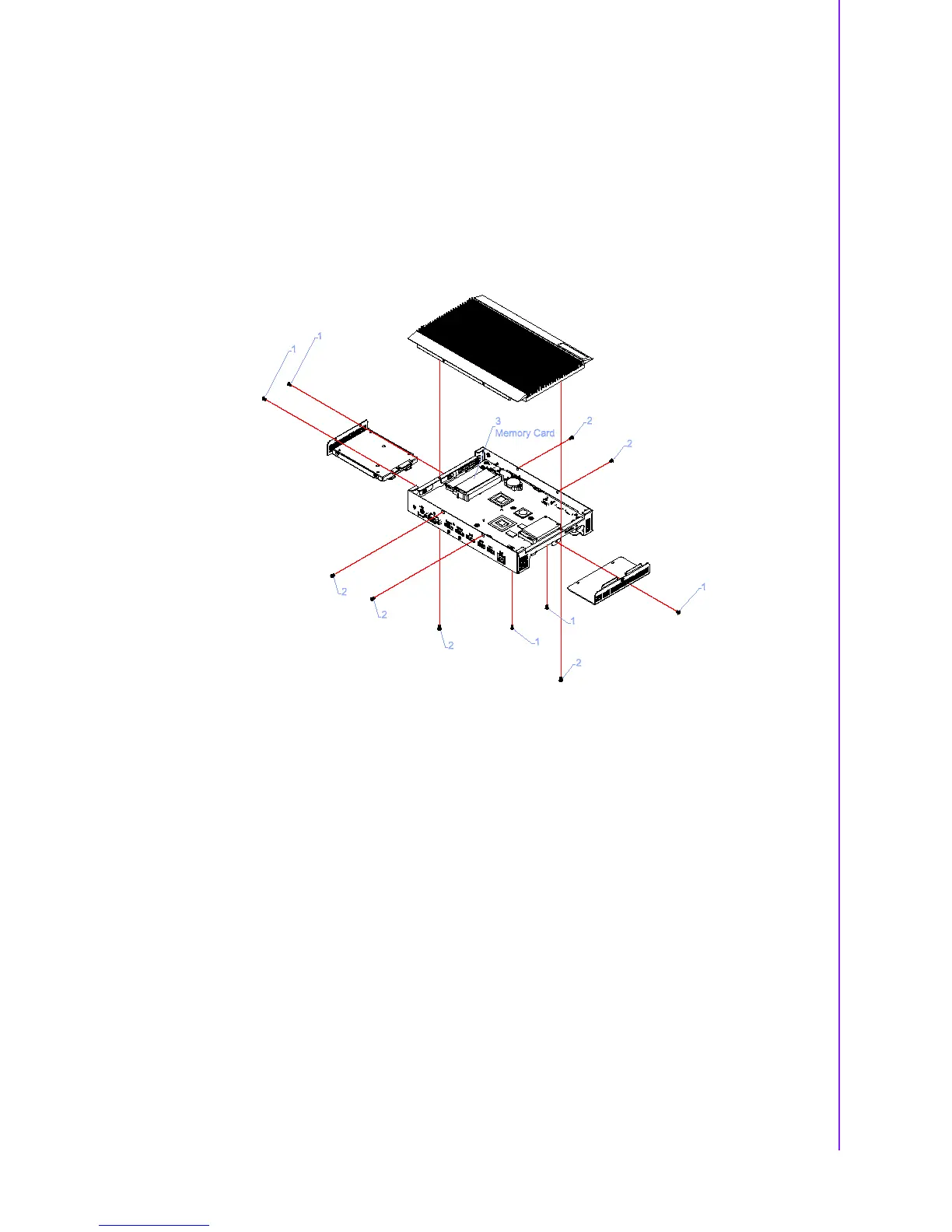

Figure 2.14 Memory module
installation
