DS-570 User Manual
Chapter 3
BIOS Settings

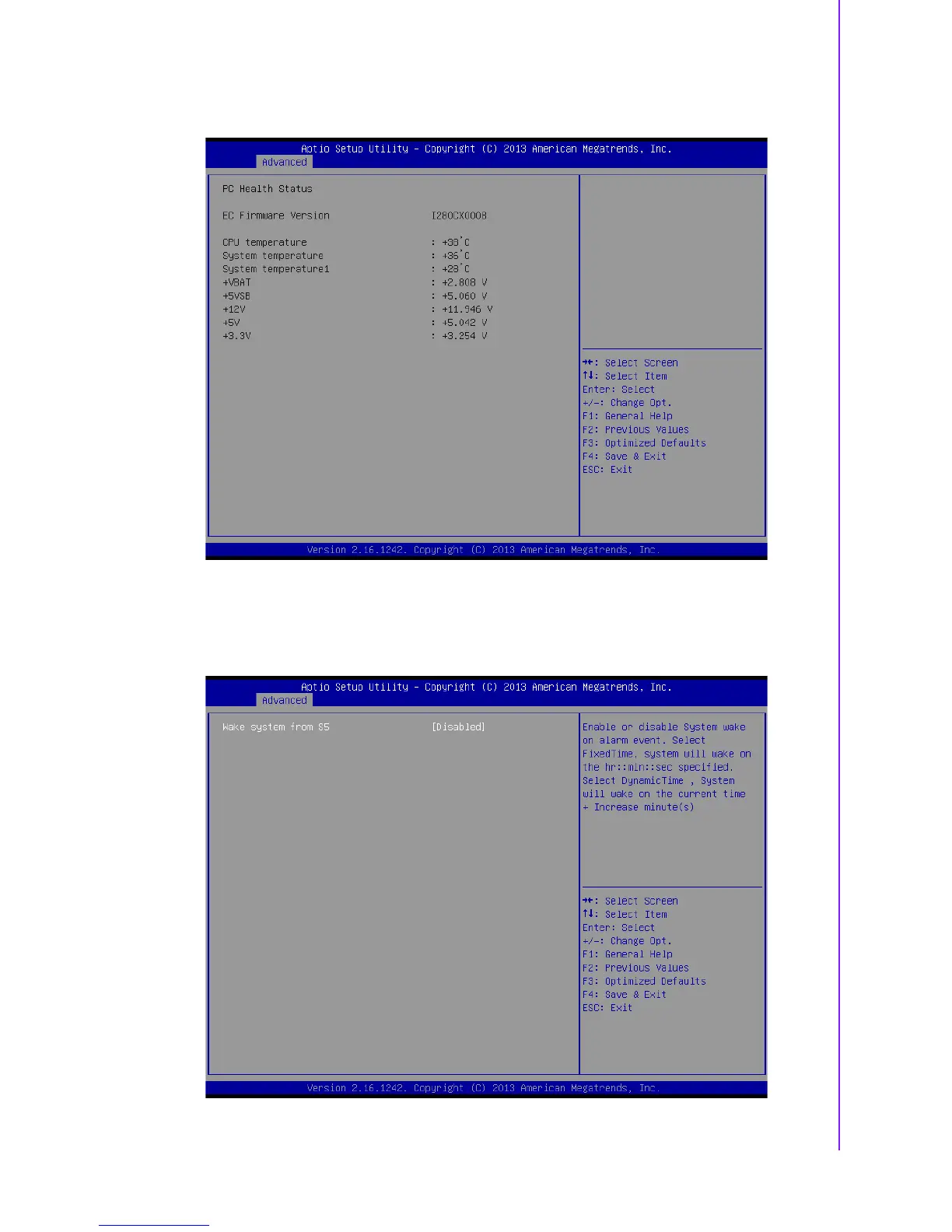

ITE8528E HW Monitor
Monitor hardware st
atus (PC health status)
Figure 3.4 HW Monitor Scre
en
S5 RTC W
ake Settings
Enable system to wake from S5 using R
TC alarm
Figure 3.5 S5 RTC W
ake setup screen
28
30
