Advantech DS-570 - Figure 3.7 IDE Configuration Setup Screen

23 DS-570 User Manual
Chapter 3 BIOS Settings
 IDE Configuration
IDE device configuration.

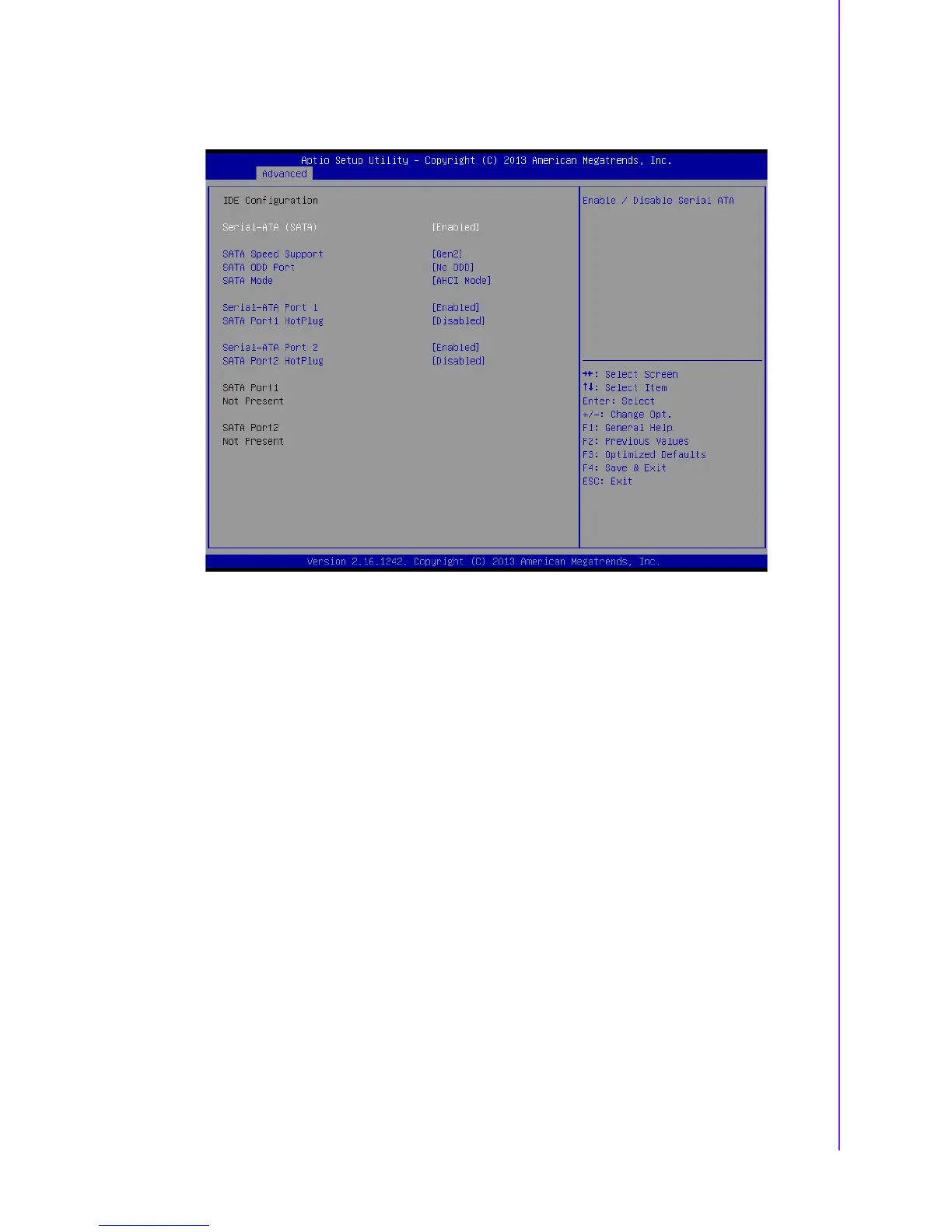

Figure 3.7 IDE configuration setup screen
 Miscellaneous Configuration
Enable/Disable miscellaneous features
– High Precision Timer
Enable/Disable the high precision event timer
– PCI Express Dynamic Clock Gating
Enable/Disable PCIE dynamic clock gating
– OS Selection
OS Selection. The OS selection should be set and matched what OS
applied.
