Chapter 2 Hardware Installation
2.3.4 DP++ Connector
DS-570 DP++ connector not only supports DP output but also can direct output sin-
gle-link HDMI and DVI signals using a simple passive adapter. It can support a maxi-
mum resolution of 3840 x 2160p but the actual resolutions supported depend on the
monitor being used.

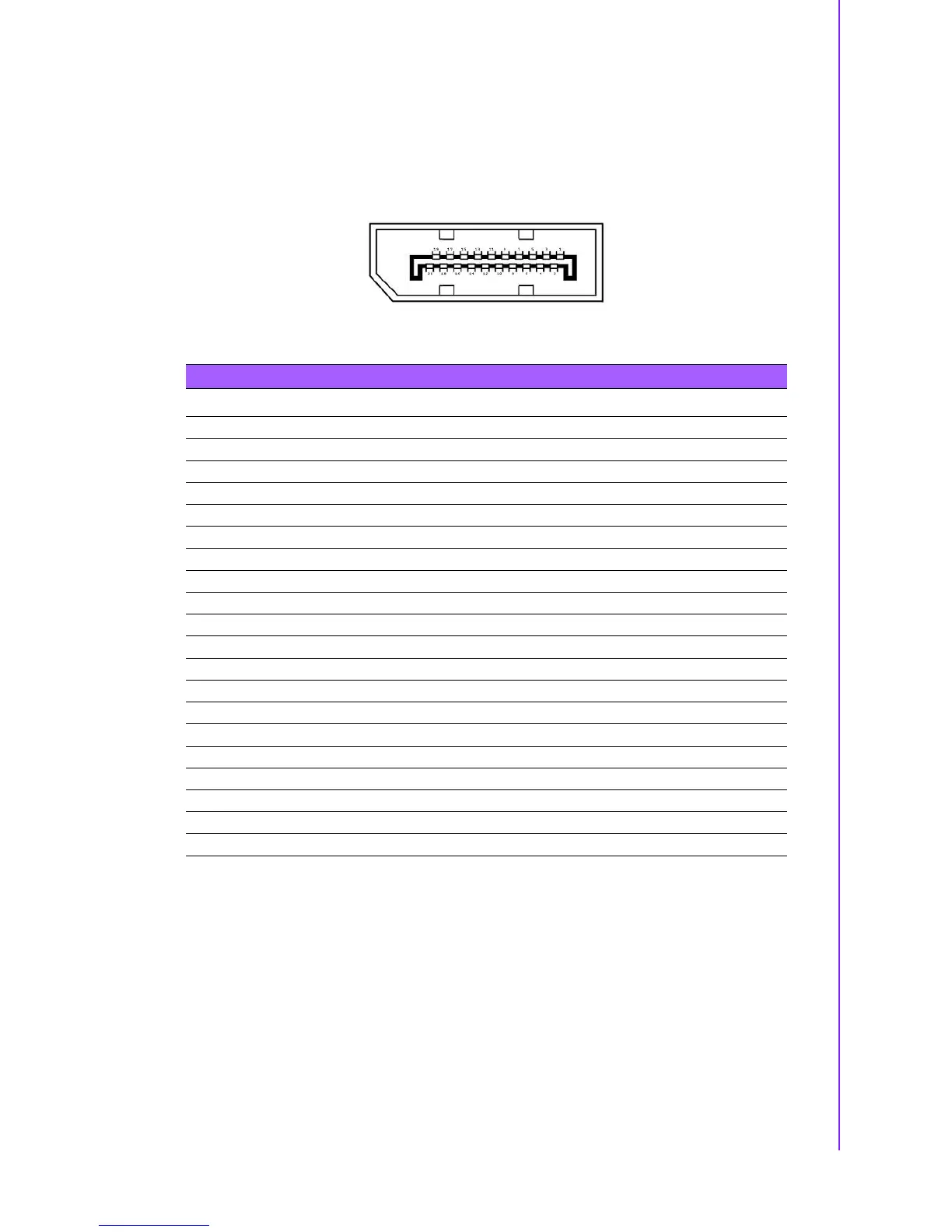

Figure 2.12 DP++ connector
Table 2.6: DP++ Connector Pin Assignments
Pin Signal Name
1 ML_Lane 0 (p)
2GND
3 ML_Lane 0 (n)
4 ML_Lane 1 (p)
5GND
6 ML_Lane 1 (n)
7 ML_Lane 2 (p)
8GND
9 ML_Lane 2 (n)
10 ML_Lane 3 (p)
11 GND
12 ML_Lane 3 (n)
13 CONFIG1
14 CONFIG2
15 AUX CH (p)
16 GND
17 AUX CH (n)
18 Hot Plug
19 Return
20 DP_PWR
