Chapter 2 Hardware Installation
2.4.3 Mini Card & SIM Card Installation
1. Remove the Mini PCIe cover by loosening the 3 fixing screws.
2. Insert the Mini card into Mini PCIe card slot. Place the SIM card into SIM card
socket (Note: The SIM card slot is under the Mini PCIe slot-do not mix them up).
3. Assemble back the Mini PCIe cover with the screws.

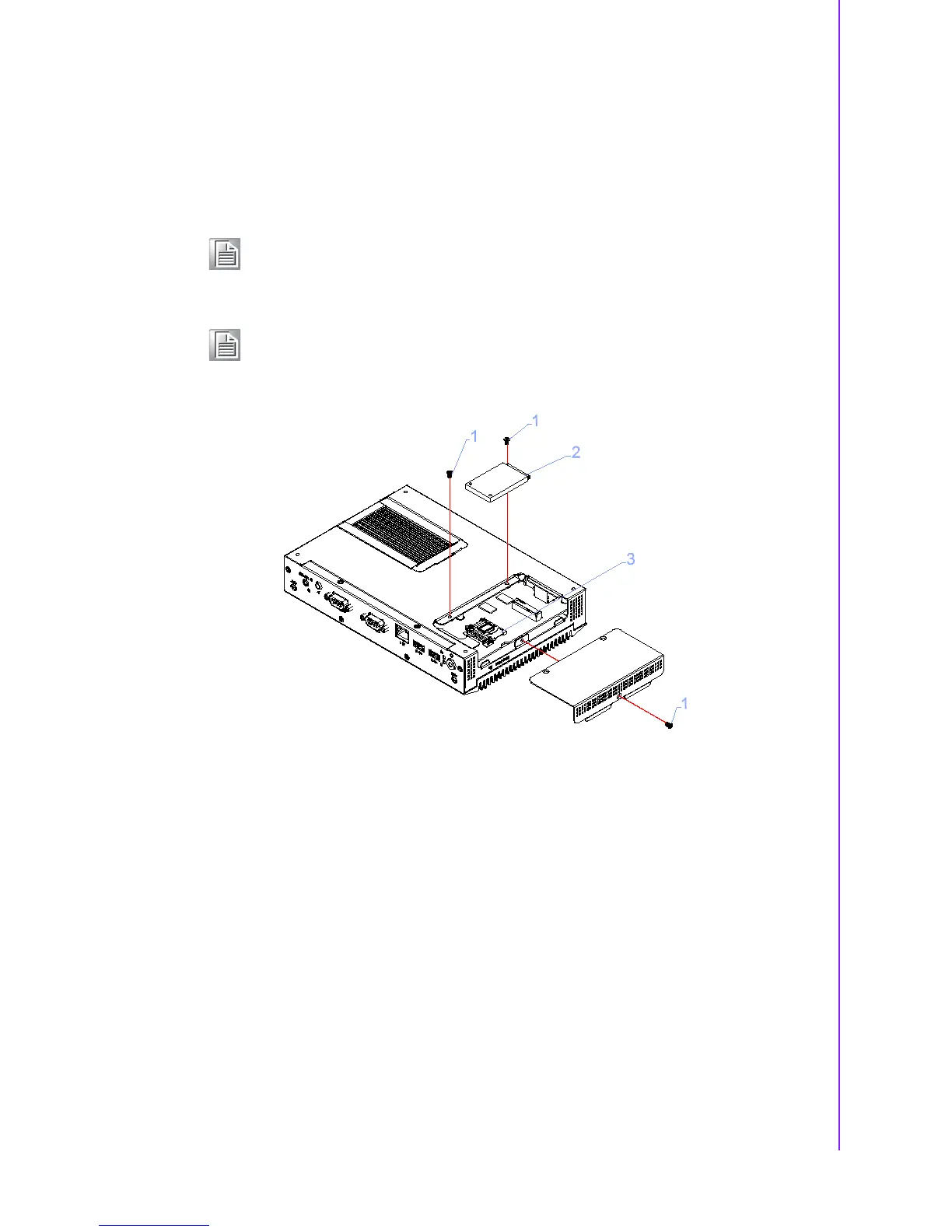

Figure 2.16 Mini PCIe and SIM card installation
Note! Mini PCIe1 supports mSATA and mini PCIE cards.
Note! The SIM Card slot is under the Mini PCIE2 slot.
