Advantech DS-780 User Manual

DS-780 User Manual 4
1.4 Mechanical Specifications
1.4.1 Dimensions
235 x 175 x 35 mm (9.25" x 6.89" x 1.38") (W x D x H)

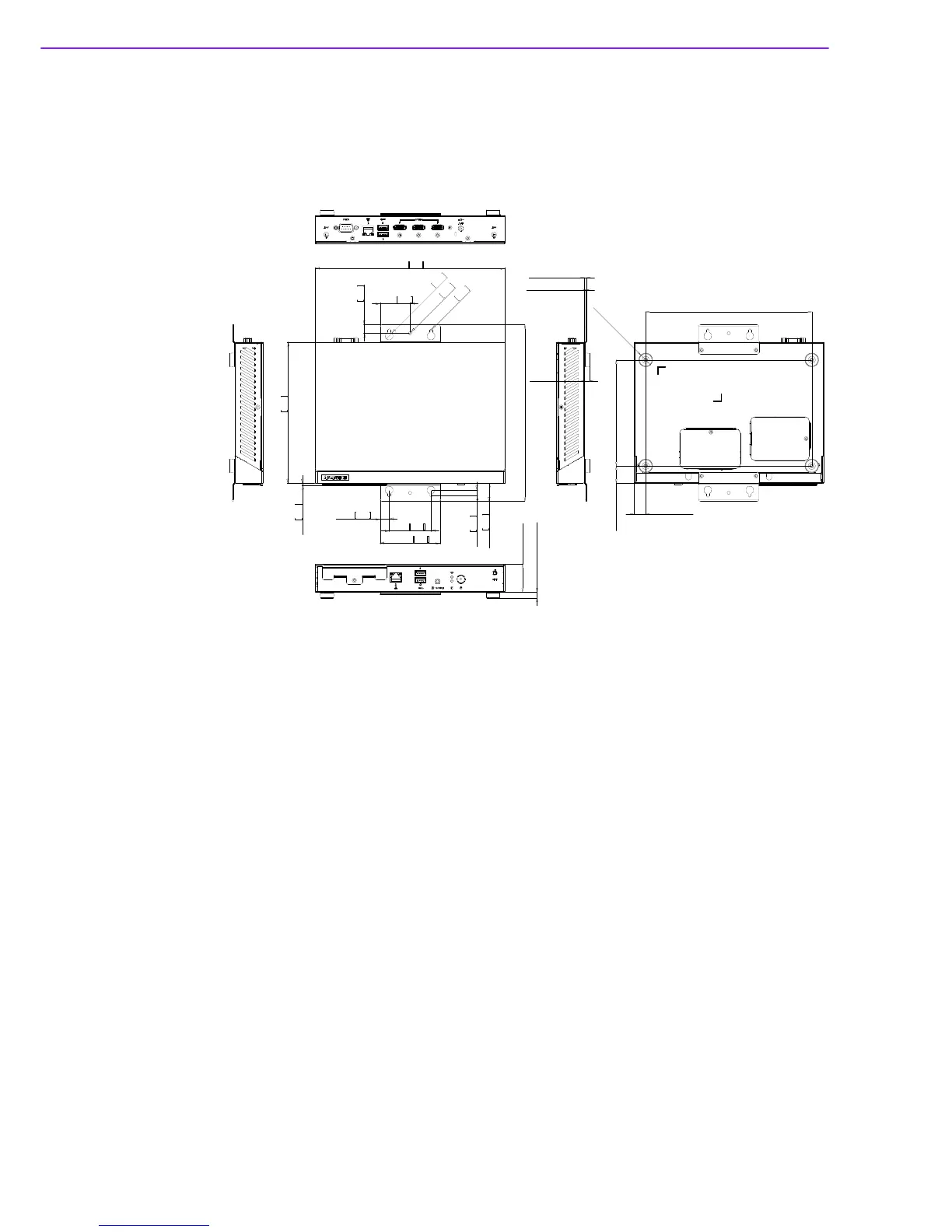

Figure 1.1 DS-780 mechanical dimensions
1.4.2 Weight
1.5 kg (3.3 lb)
1.5 Power Requirements
1.5.1 System Power
Minimum power input: DC 19V, 3.42A
1.5.2 RTC Battery
3V/220 mAh CR2032
37.25 1.47
10.50 0.41
ø
4
0.16
ø
10 0.39
ø
3.50 0.14
235 9.25
175 6.89
2.61 0.10
219 [8.622]
74.50 2.93
11.25 0.44
52 2.05
22.50 0.89
7.25 0.29
35 [1.378]
7 [0.276]
3 [0.118]
1.20 [0.047]
7 [0.276]
206 [8.110]
131.50 [5.177]21.40 [0.843]
14.50 [0.571]
ø17.20 [ø0.677]

Advantech DS-780 Specifications

General

Bus type	OPI
Stepping	K1
Tjunction	100 °C
Processor cache	4 MB
Processor cores	2
Processor model	i5-6360U
System bus rate	- GT/s
Processor family	6th gen Intel® Core™ i5
Processor series	Intel® Core™ i5-6300 Mobile Series
Processor socket	BGA 1356
Processor threads	4
Processor codename	Skylake
Processor frequency	2 GHz
Processor cache type	Smart Cache
Configurable TDP-down	9.5 W
Processor lithography	14 nm
Conflict-Free processor	Yes
PCI Express slots version	3.0
Processor boost frequency	3.1 GHz
Processor operating modes	64-bit
ECC supported by processor	No
PCI Express configurations	1x2+2x1, 1x4, 2x2, 4x1
Thermal Design Power (TDP)	15 W
Number of processors installed	1
Maximum number of PCI Express lanes	12
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM, LPDDR3-SDRAM
Memory clock speeds supported by processor	1600, 1866, 2133 MHz
Memory bandwidth supported by processor (max)	34.1 GB/s
Maximum internal memory supported by processor	32 GB
On-board graphics card ID	0x1926
Discrete graphics card model	Not available
On-board graphics card model	Intel® Iris™ Graphics 540
On-board graphics card OpenGL version	4.4
On-board graphics card base frequency	300 MHz
On-board graphics card DirectX version	12.0
On-board graphics card dynamic frequency (max)	1000 MHz
Number of displays supported (on-board graphics)	3
Memory slots	2x SO-DIMM
Internal memory	8 GB
Memory channels	Dual-channel
Memory clock speed	2133 MHz
Internal memory type	DDR4-SDRAM
HDD size	2.5 \
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
SSD interface	SATA III
Storage media	SSD
Total storage capacity	64 GB
Operating system installed	-
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
USB 2.0 ports quantity	0
Chassis type	1.43L sized PC
Product color	Black, Orange
BIOS type	EFI AMI
Product type	Embedded PC
BIOS memory size	128 Mbit
Power supply input voltage	19 V
Certification	CE/FCC Class B, CCC, BSMI UL, CB, CCC, BSMI
Processor code	SR2JM
Processor ARK ID	91156
Processor package size	42 x 24 x 1.3 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Intel Identity Protection Technology version	1.00

Weight and Dimensions

Depth	175 mm
Width	235 mm
Height	35 mm
Weight	1500 g
