DS-780 User Manual 18
2.4.4 Mount Brackets Installation
1. Loosening the fixing screws on the bottom side.
2. Fixing the two mount brackets with 4 screws directly.

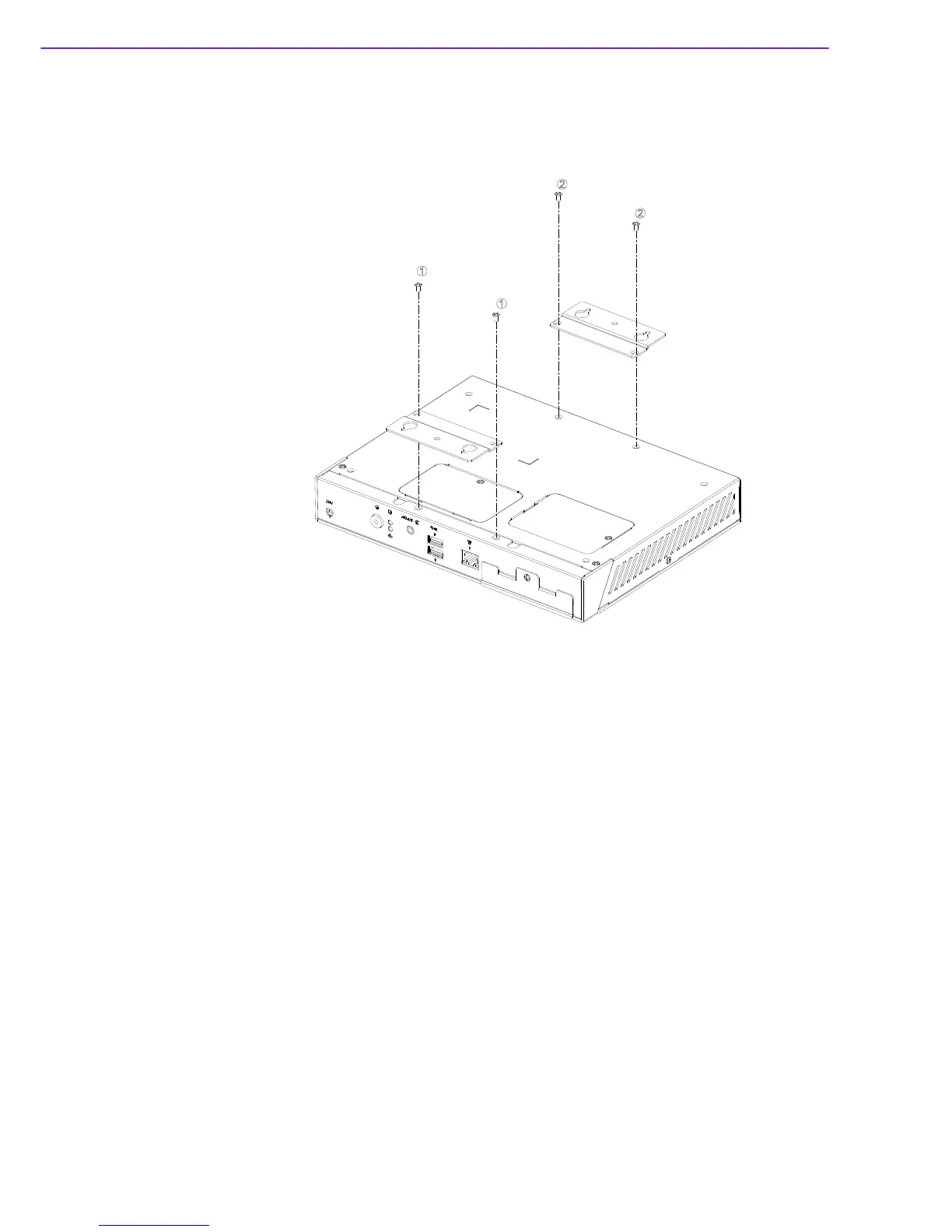

Figure 2.16 Mount brackets installation
