15 DS-780 User Manual
Chapter 2 Hardware Installation
2.4.2 HDD/SSD Installation
1. Loosening the screw on the front view and move out the drive bay.
2. Fixing the 4 screws with HDD/SSD and storage bracket.
3. Insert the storage bracket into chassis
4. Fixing the screw back.

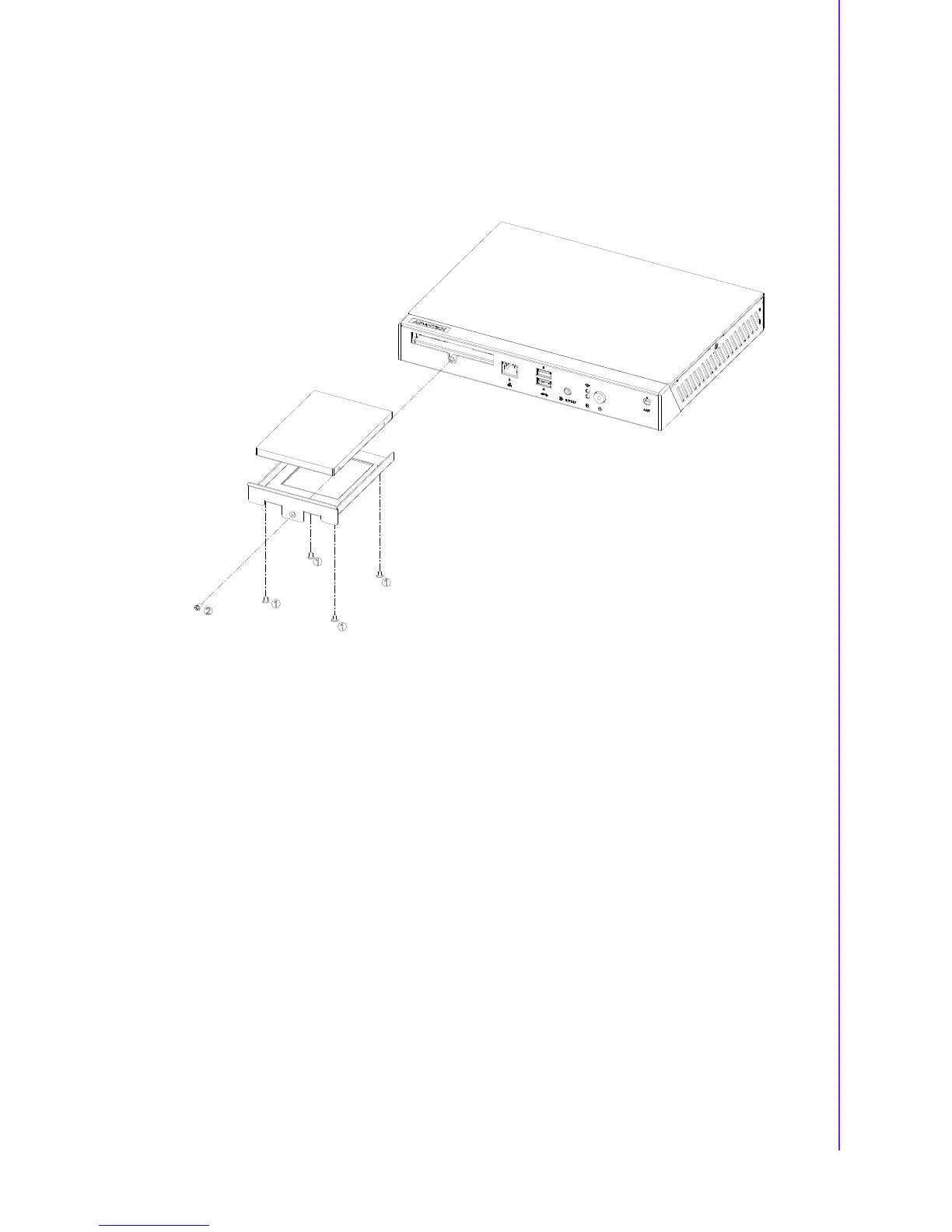

Figure 2.13 HDD/SSD installation
