Advantech DS-780 User Manual

23 DS-780 User Manual
Chapter 3 BIOS Settings
3.2.2 Advanced BIOS Setup
Select the Advanced tab from the DS-780 setup screen to enter the Advanced BIOS
setup screen. You can select any of the items in the left frame of the screen, such as
CPU configuration, to go to the sub menu for that item. You can display an Advanced
BIOS Setup option by highlighting it using the <Arrow> keys. All Advanced BIOS
Setup options are described in this section. The Advanced BIOS Setup screens are
shown below. The sub-menus are described on the following pages.

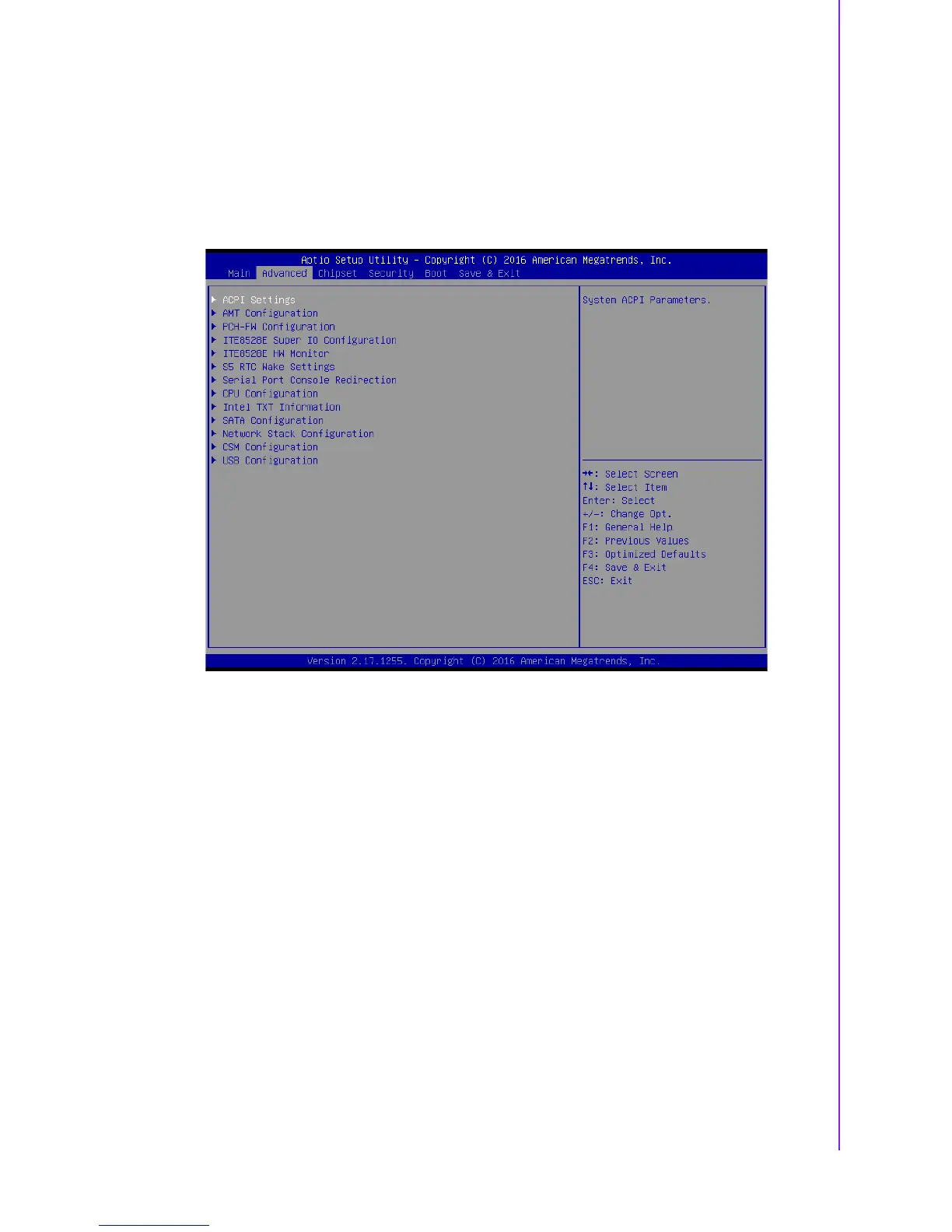

Figure 3.2 Advanced BIOS setup screen

Advantech DS-780 Specifications

General

Bus type	OPI
Stepping	K1
Tjunction	100 °C
Processor cache	4 MB
Processor cores	2
Processor model	i5-6360U
System bus rate	- GT/s
Processor family	6th gen Intel® Core™ i5
Processor series	Intel® Core™ i5-6300 Mobile Series
Processor socket	BGA 1356
Processor threads	4
Processor codename	Skylake
Processor frequency	2 GHz
Processor cache type	Smart Cache
Configurable TDP-down	9.5 W
Processor lithography	14 nm
Conflict-Free processor	Yes
PCI Express slots version	3.0
Processor boost frequency	3.1 GHz
Processor operating modes	64-bit
ECC supported by processor	No
PCI Express configurations	1x2+2x1, 1x4, 2x2, 4x1
Thermal Design Power (TDP)	15 W
Number of processors installed	1
Maximum number of PCI Express lanes	12
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM, LPDDR3-SDRAM
Memory clock speeds supported by processor	1600, 1866, 2133 MHz
Memory bandwidth supported by processor (max)	34.1 GB/s
Maximum internal memory supported by processor	32 GB
On-board graphics card ID	0x1926
Discrete graphics card model	Not available
On-board graphics card model	Intel® Iris™ Graphics 540
On-board graphics card OpenGL version	4.4
On-board graphics card base frequency	300 MHz
On-board graphics card DirectX version	12.0
On-board graphics card dynamic frequency (max)	1000 MHz
Number of displays supported (on-board graphics)	3
Memory slots	2x SO-DIMM
Internal memory	8 GB
Memory channels	Dual-channel
Memory clock speed	2133 MHz
Internal memory type	DDR4-SDRAM
HDD size	2.5 \
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
SSD interface	SATA III
Storage media	SSD
Total storage capacity	64 GB
Operating system installed	-
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
USB 2.0 ports quantity	0
Chassis type	1.43L sized PC
Product color	Black, Orange
BIOS type	EFI AMI
Product type	Embedded PC
BIOS memory size	128 Mbit
Power supply input voltage	19 V
Certification	CE/FCC Class B, CCC, BSMI UL, CB, CCC, BSMI
Processor code	SR2JM
Processor ARK ID	91156
Processor package size	42 x 24 x 1.3 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Intel Identity Protection Technology version	1.00

Weight and Dimensions

Depth	175 mm
Width	235 mm
Height	35 mm
Weight	1500 g
