3.2.5 BIOS Boot setup
Select the Boot tab from the DS-780 setup screen to enter the BIOS Boot setup
screen. Users can select any item in the left frame of the screen.

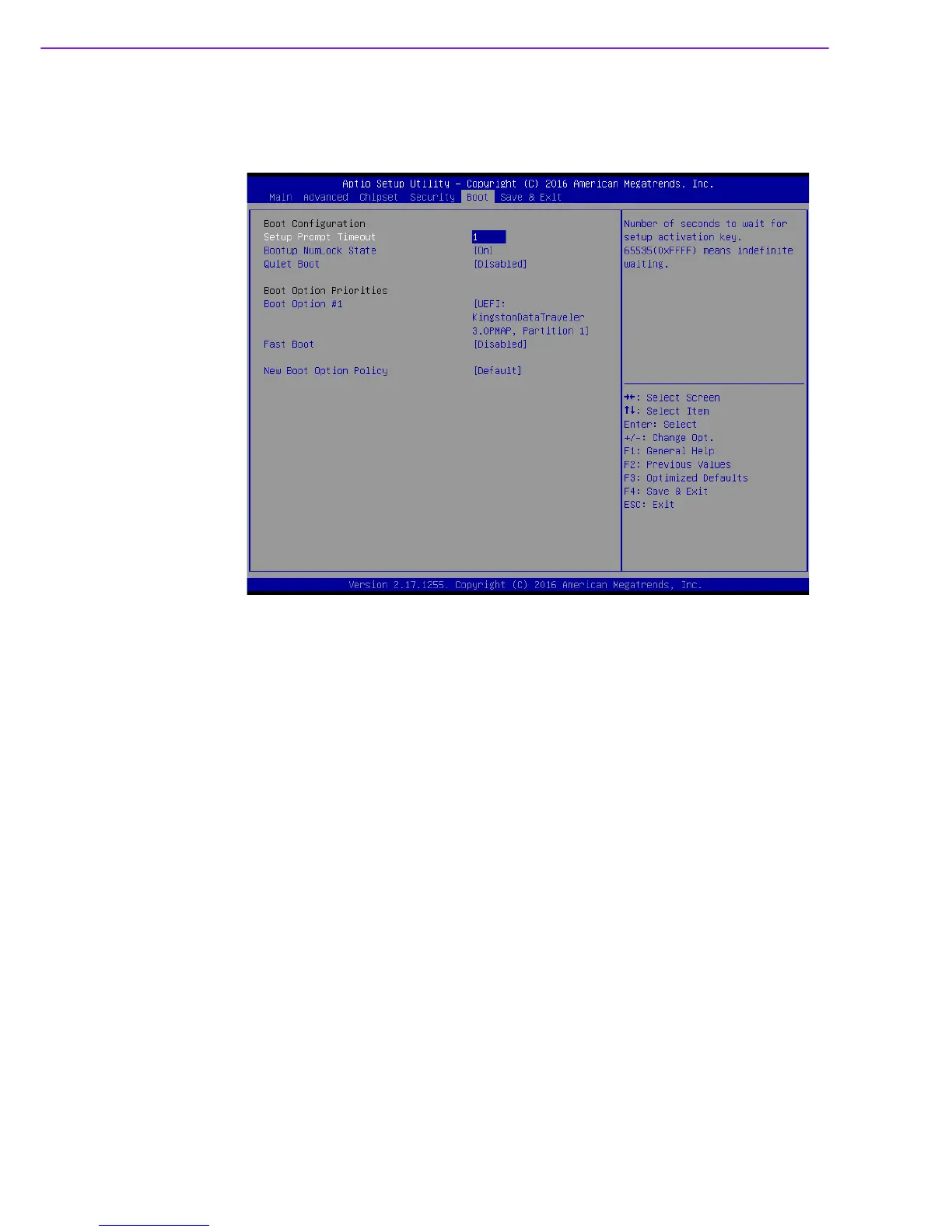

Figure 3.6 BIOS Boot setup
 Setup Prompt Timeout
Allows users to set the number of seconds to wait for a setup activation key. A
value of 65535 (0xFFFF) means wait indefinitely.
 Bootup NumLock State
Allows users to select the keyboard NumLock state
 Quiet Boot
Enable/disable quiet booting
 Boot Option #1
Set the system boot order
 Fast Boot
Enable/disable rapid booting by initializing the minimum number of devices nec-
essary for launching the active boot option.
 New boot option policy
Controls the placement of newly detected UEFI boot options.

Advantech DS-780 Specifications

General

Bus type	OPI
Stepping	K1
Tjunction	100 °C
Processor cache	4 MB
Processor cores	2
Processor model	i5-6360U
System bus rate	- GT/s
Processor family	6th gen Intel® Core™ i5
Processor series	Intel® Core™ i5-6300 Mobile Series
Processor socket	BGA 1356
Processor threads	4
Processor codename	Skylake
Processor frequency	2 GHz
Processor cache type	Smart Cache
Configurable TDP-down	9.5 W
Processor lithography	14 nm
Conflict-Free processor	Yes
PCI Express slots version	3.0
Processor boost frequency	3.1 GHz
Processor operating modes	64-bit
ECC supported by processor	No
PCI Express configurations	1x2+2x1, 1x4, 2x2, 4x1
Thermal Design Power (TDP)	15 W
Number of processors installed	1
Maximum number of PCI Express lanes	12
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM, LPDDR3-SDRAM
Memory clock speeds supported by processor	1600, 1866, 2133 MHz
Memory bandwidth supported by processor (max)	34.1 GB/s
Maximum internal memory supported by processor	32 GB
On-board graphics card ID	0x1926
Discrete graphics card model	Not available
On-board graphics card model	Intel® Iris™ Graphics 540
On-board graphics card OpenGL version	4.4
On-board graphics card base frequency	300 MHz
On-board graphics card DirectX version	12.0
On-board graphics card dynamic frequency (max)	1000 MHz
Number of displays supported (on-board graphics)	3
Memory slots	2x SO-DIMM
Internal memory	8 GB
Memory channels	Dual-channel
Memory clock speed	2133 MHz
Internal memory type	DDR4-SDRAM
HDD size	2.5 \
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
SSD interface	SATA III
Storage media	SSD
Total storage capacity	64 GB
Operating system installed	-
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
USB 2.0 ports quantity	0
Chassis type	1.43L sized PC
Product color	Black, Orange
BIOS type	EFI AMI
Product type	Embedded PC
BIOS memory size	128 Mbit
Power supply input voltage	19 V
Certification	CE/FCC Class B, CCC, BSMI UL, CB, CCC, BSMI
Processor code	SR2JM
Processor ARK ID	91156
Processor package size	42 x 24 x 1.3 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Intel Identity Protection Technology version	1.00

Weight and Dimensions

Depth	175 mm
Width	235 mm
Height	35 mm
Weight	1500 g
