Advantech DS-780 - Figure 2.12 Memory Module Installation-Bottom Side

DS-780 User Manual 14
[Bottom side]
1. Loosening the 1 fixing screw on the memory cover in bottom side.
2. Remove the memory cover.
3. Insert the memory module into memory socket
4. Assemble back the memory cover with the 1 screw.

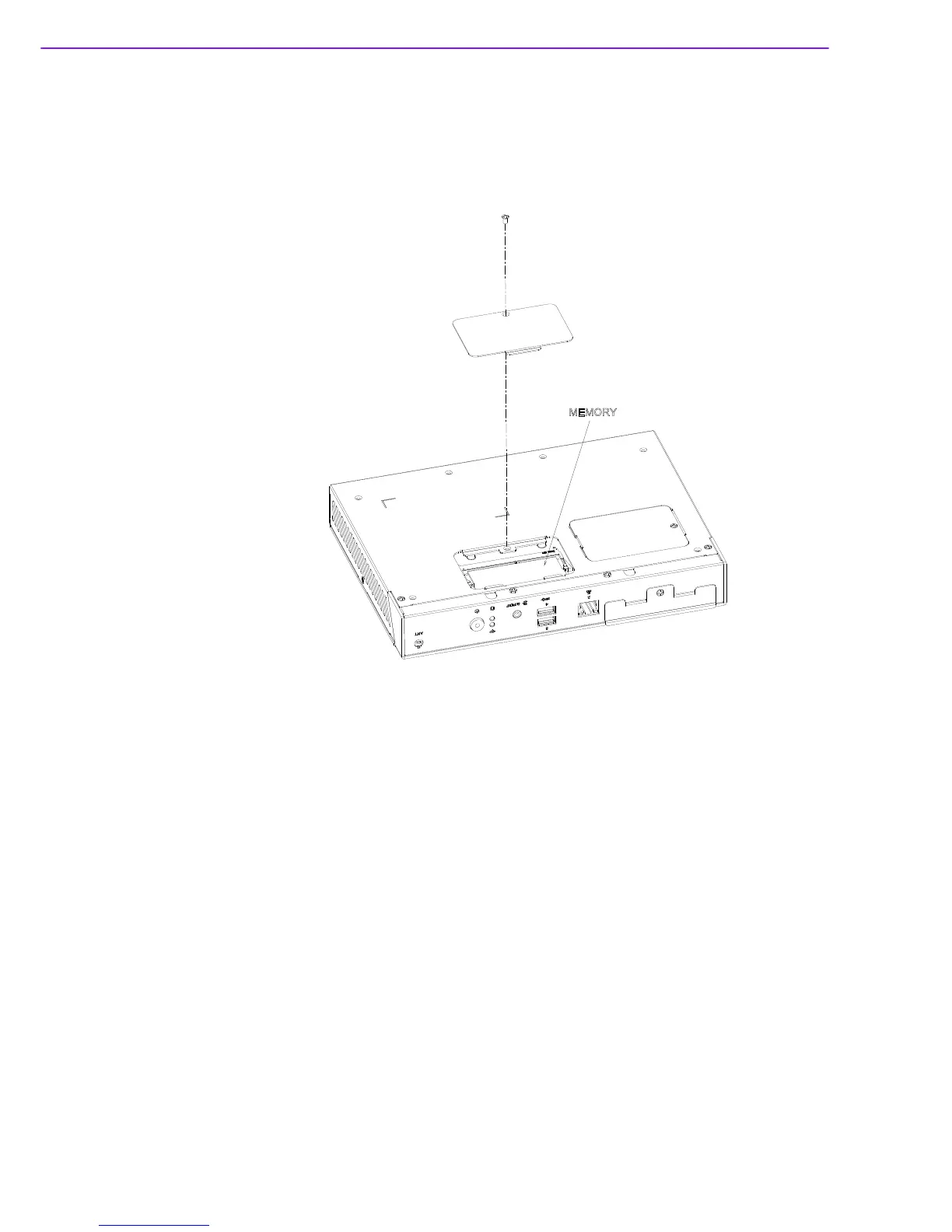

Figure 2.12 Memory module installation-bottom side
MEMORY
