2.3 Connecting Hardware
In this instruction, it will explain how to find a proper location for your EKI-1221/1222/
1224, and how to connect to the network, hock up the power cable, and connect to
the EKI-1221/1222/1224.
2.3.1 Choosing the Location
Due to its versatility and innovative design, the EKI-122/1222/1224 can be:
Fixed to a panel mount
Fixed to a DIN-rail
Panel/Wall Mounting
The EKI-1221/1222/1224 can be attached to a wall using the included metal
brackets. Each bracket comes with four screws. You can install the EKI-1221/1222/
1224 firmly via the components, please see the figures below.

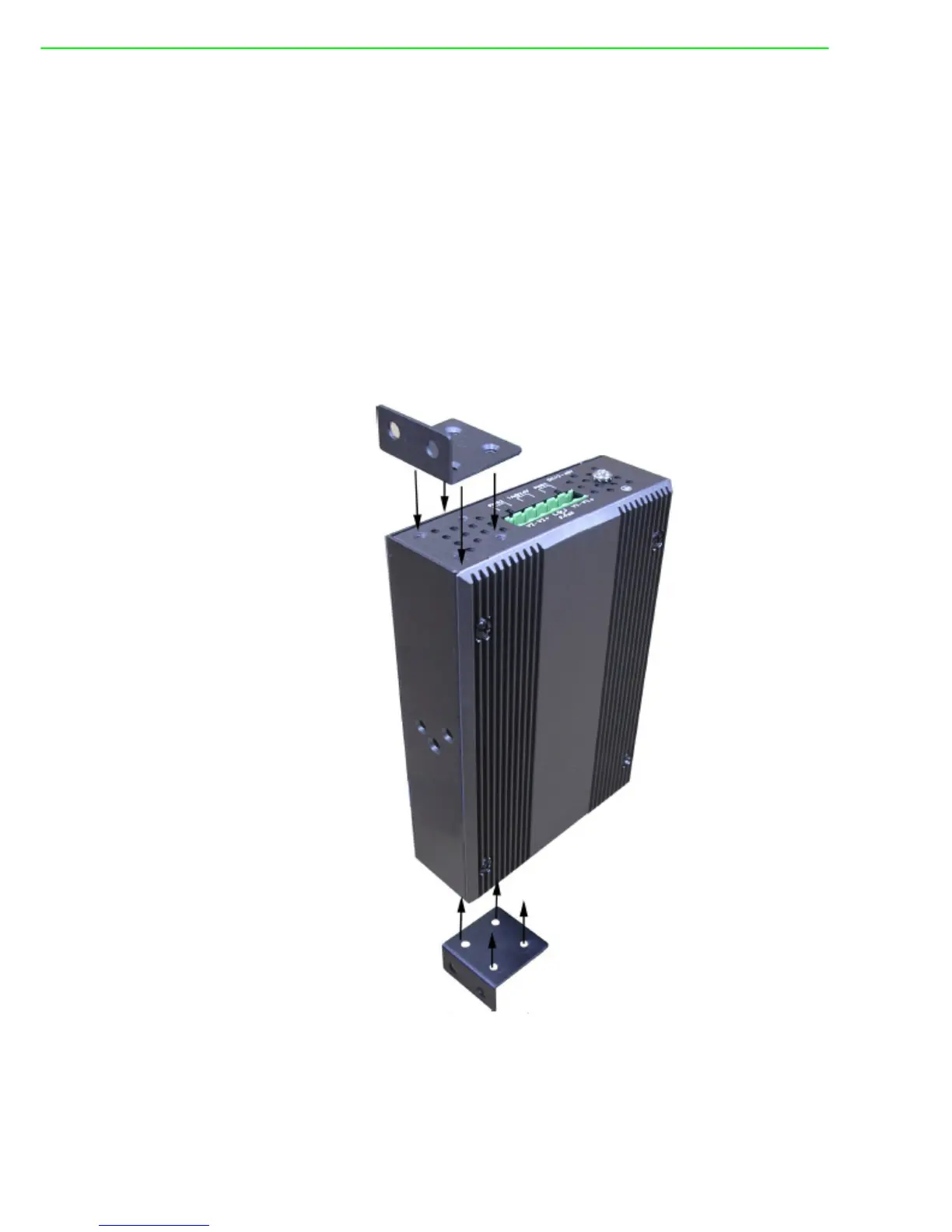

Figure 2.15 Combine the Metal Mounting Kit
