17 EKI-1221/1222/1224 User Manual
Chapter 2 Getting Started
DIN-rail Mounting
The EKI-1221/1222/1224 can be mounted on a standard DIN-rail. The DIN-rail kit is
screwed on the Modbus data gateway when out of factory. If the DIN-rail kit is not
screwed on the EKI-1221/1222/1224, please screw the DIN-rail kit on the Modbus
data gateway first.

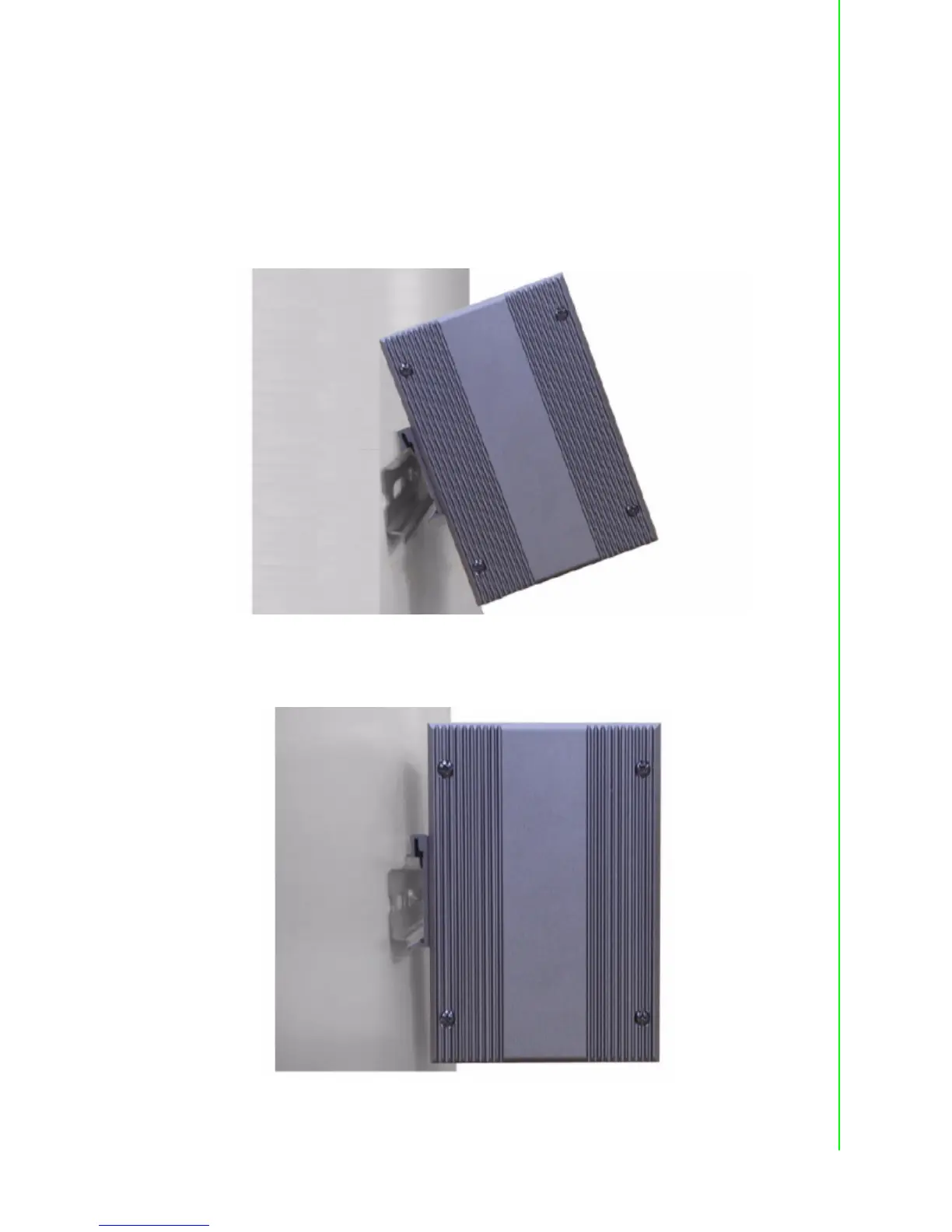

First, hang the EKI-1221/1222/1224 to the DIN-rail with angle of inclination. See
below figure.
Figure 2.16 DIN-rail Step 1
Then, let the EKI-1221/1222/1224 down straight to slide over the rail smoothly.
Figure 2.17 DIN-rail Step 2
