EKI-1221/1222/1224 User Manual 20
3.1 Installing the Configuration Utility
The following section will show you how to install Advantech Serial Device Server
Configuration Utility, a tool to set up and monitor the EKI series Modbus Data
Gateways.
1. Insert the Advantech INET Series Driver Utility CD-ROM into the CD-ROM
drive (e.g. E:\) on the host PC.
2. Use Windows explorer or the Windows Run command to execute the setup
program, the path for the setup program on the CD-ROM should be:
E:\Utility&Driver\SerialDeviceServerConfigurationUtility\Serial_Device_
Server_Configuration_Utility_[Version]_Release_[date].exe

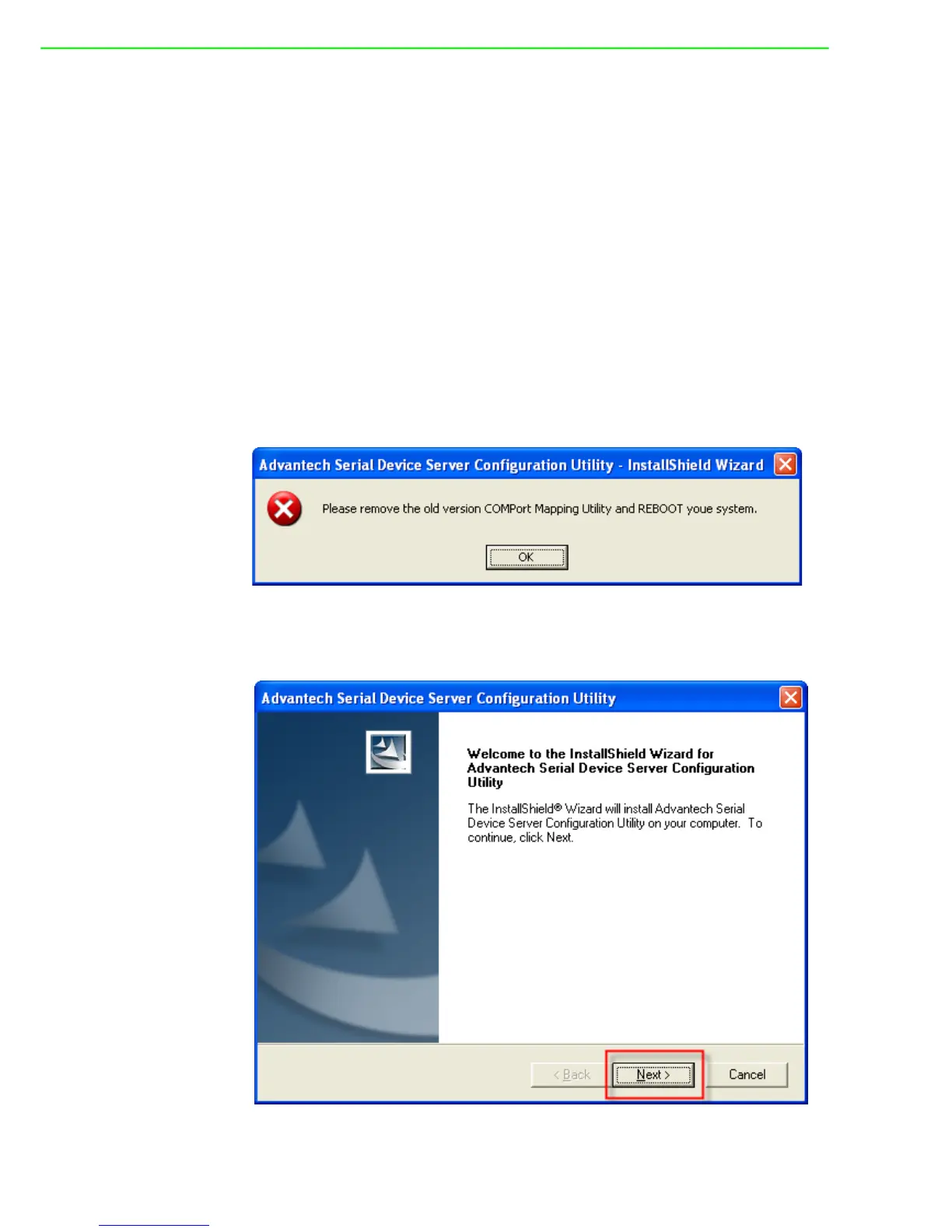

3. If there is an existed COM port mapping utility on the host PC, you have to
remove it and reboot, then go on installing.
4. Once the InstallShield Wizard starts running, click “Next” when the welcome
window opens to proceed with the installation.
Note Be sure the Microsoft .NET Framework on your host PC is
greater than version 2.0 .
