35 EKI-1221/1222/1224 User Manual
Chapter 3 Configuration

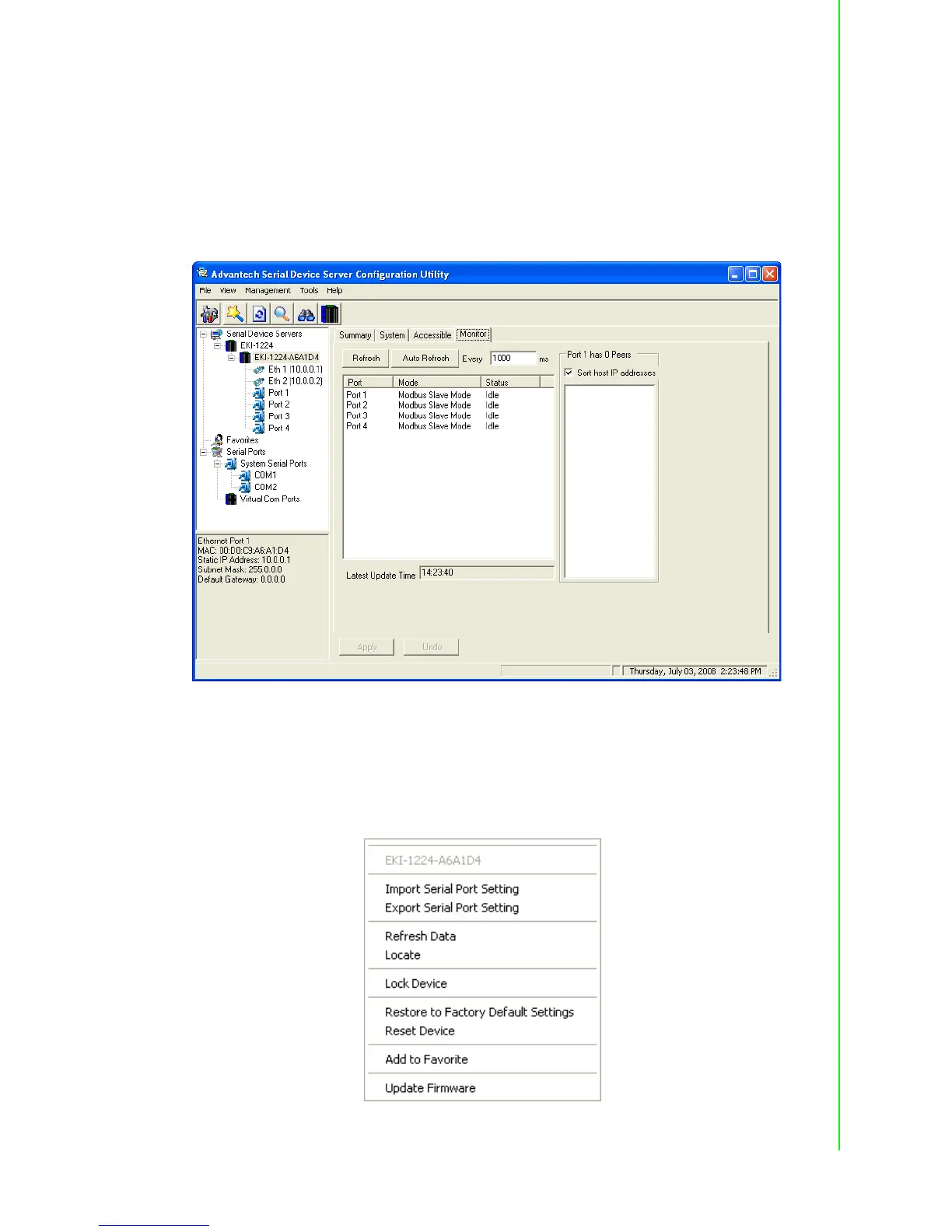

3.7 Monitoring Modbus Status
Configuration utility provides an excellent function that allows monitoring the serial
ports’ status. It will present each serial port’s operation mode and status. The IP
address of the Modbus TCP device which is communicating with serial port will be list
on the right window. Click “Refresh” button, the status will be refresh once. It will be
auto refresh after click “Auto Refresh” and the time duration is depending on the set-
ting (the default value is 1000ms).
3.8 Administrator Setting
The configuration utility provides several administrator settings for easy management
and configuration. Right click the mouse on the device name in the sub-tree of Serial
Device Sever List Area, and select these administrator settings.
