Advantech EKI-1528 - 4.1.2 Manual Mapping

EKI-1528/1526 User Manual 48
4.1.2 Manual Mapping

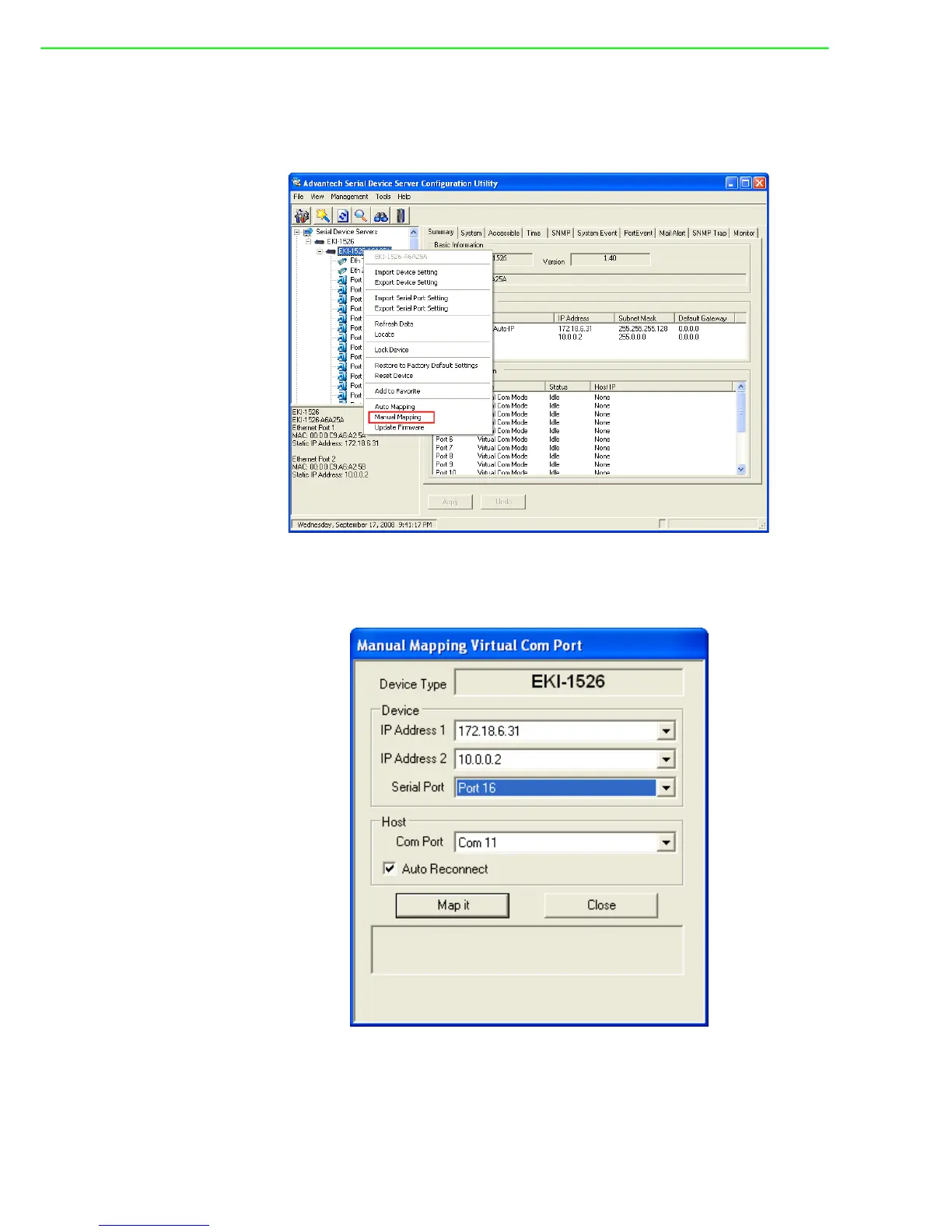

Right click the serial device name on the sub-tree of Device Server List area and
select the “Manual Mapping” function.
Select the serial port on the serial device server and the host COM that you want to
map. Press <Map it> to establish the virtual COM port on the host.
