53 EKI-1528/1526 User Manual
Chapter 4 Setting COM Redirector
Signal Test
RTS -> CTS: check the RTS and CTS signal between two ports
DTR -> RI: check the DTR and RI signal between two ports
DTR -> DSR: check the DTR and DSR signal between two ports
DTR -> DCD: check the DTR and DCD signal between two ports
Communication Parameters Test
Baud rate: 50bps ~ 921.6kbps
Data bit: 5, 6, 7, 8
Stop bit: 1, 1.5, 2
Parity: Odd, Even, None, Space, Mark

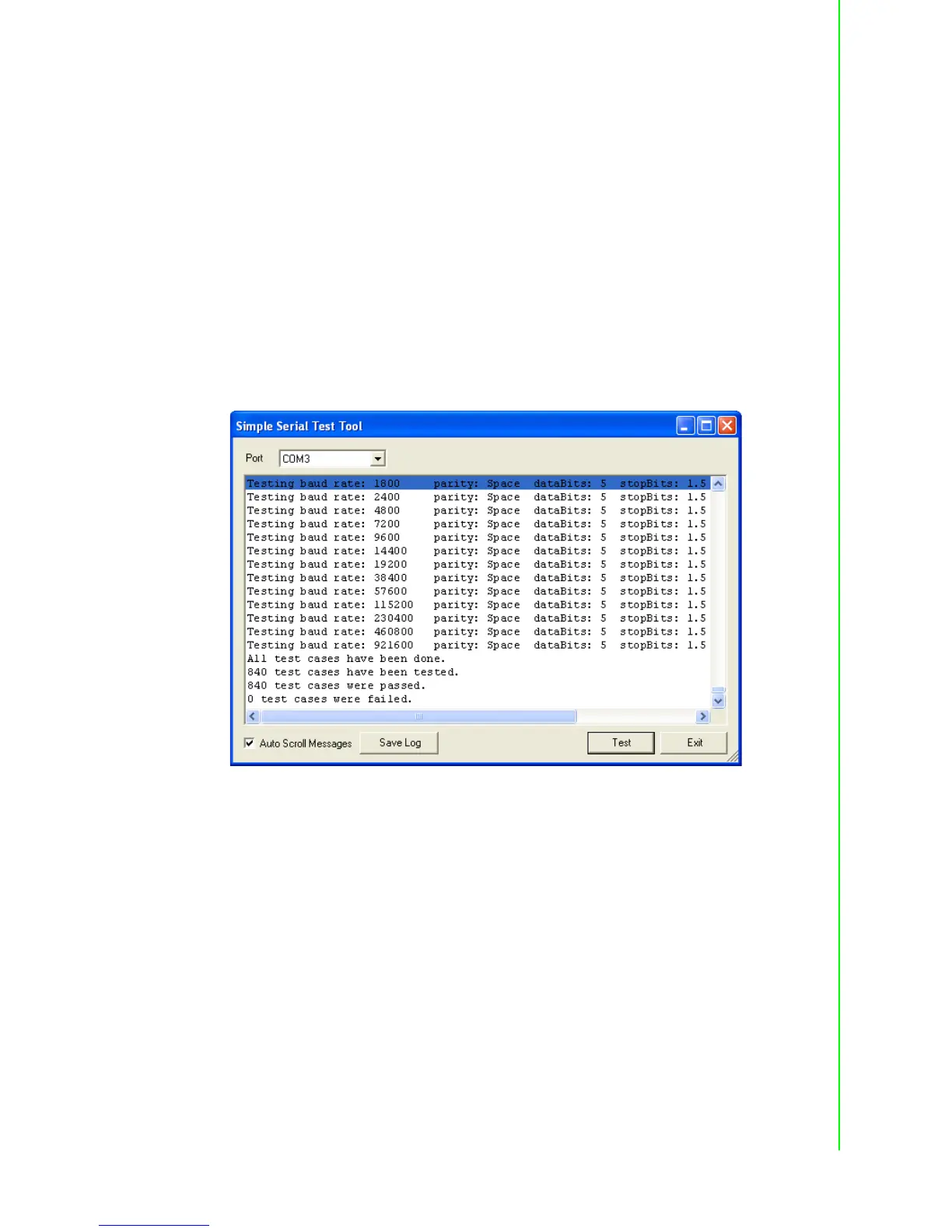

When the test is finish, it will show the test result, the click “Exit” button to return to
the utility window.
