ICR
-1601
5.6.6 Ethernet Ports
There are two RJ45 sockets for Fast Ethernet, LAN1 resp. LAN2 interfaces. Only the
LAN1 interface can be used for as the WLAN interface.
The connection of the RJ45 Ethernet socket is described in the table below.
Pin Signal
mark
Descr
iption
Dat
a flow direction
1 TXD+ T
ransmit Data – positive pole
Input/Output
2 TXD- Transmit Data – negative pole Input/Output
3 RXD+ R
eceive Data – positive pole
Input/Output
4 — —
5 — —
6 RXD- R
eceive Data – negative pole
Input/Output
7 — —
8 — —
T
able 4: Connection of Ethernet connector

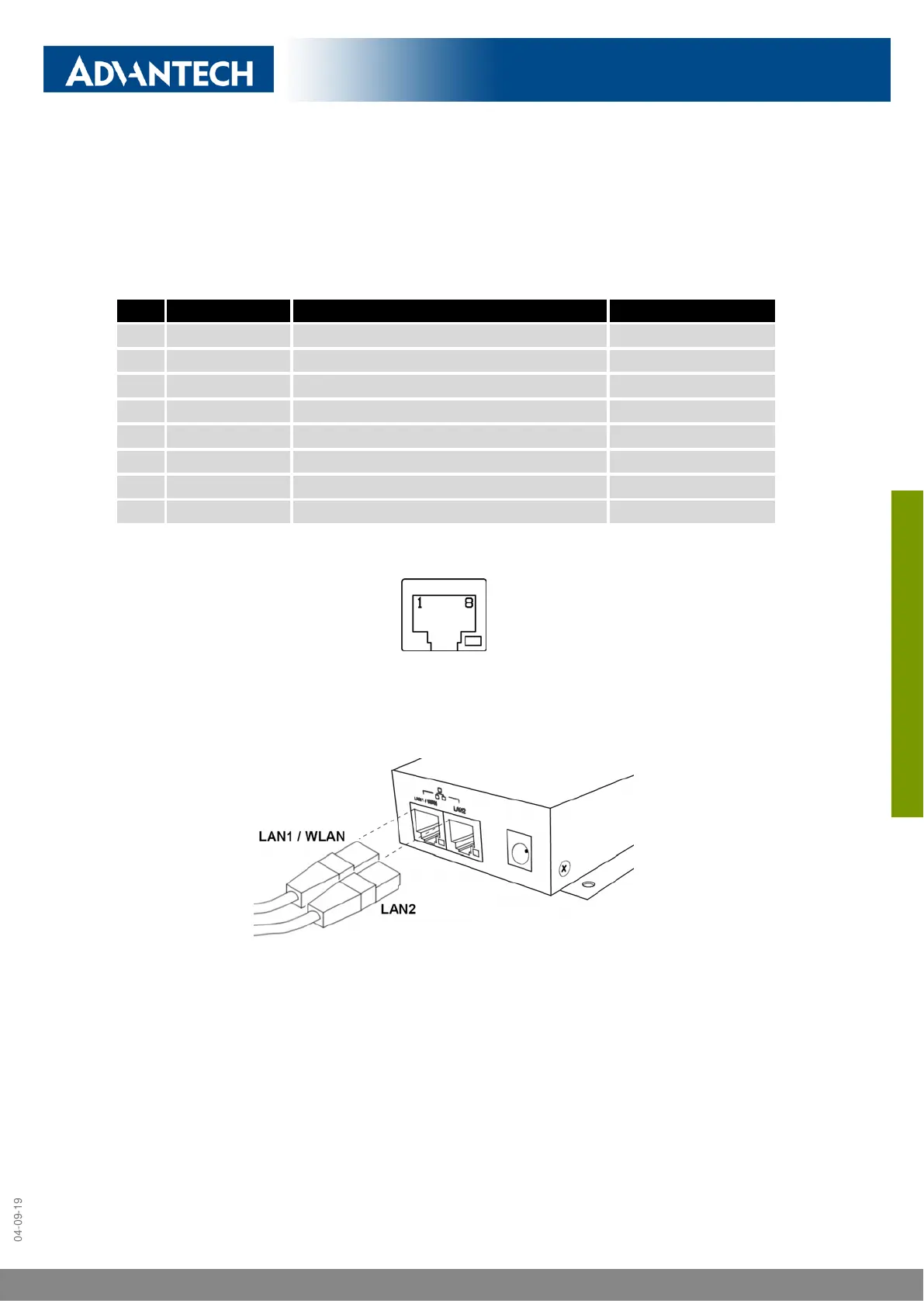

F
igure 15: Ethernet connector
Plug the Ethernet cable into the RJ45 connector, see the figure below.
F
igure 16: Connection of Ethernet cable
18
04-09-19
