5.8 The DIN rail clip
The DIN rail clip supports installation to the TS-32 (G rail), TS-35 (7,5 and 15 mm deep)

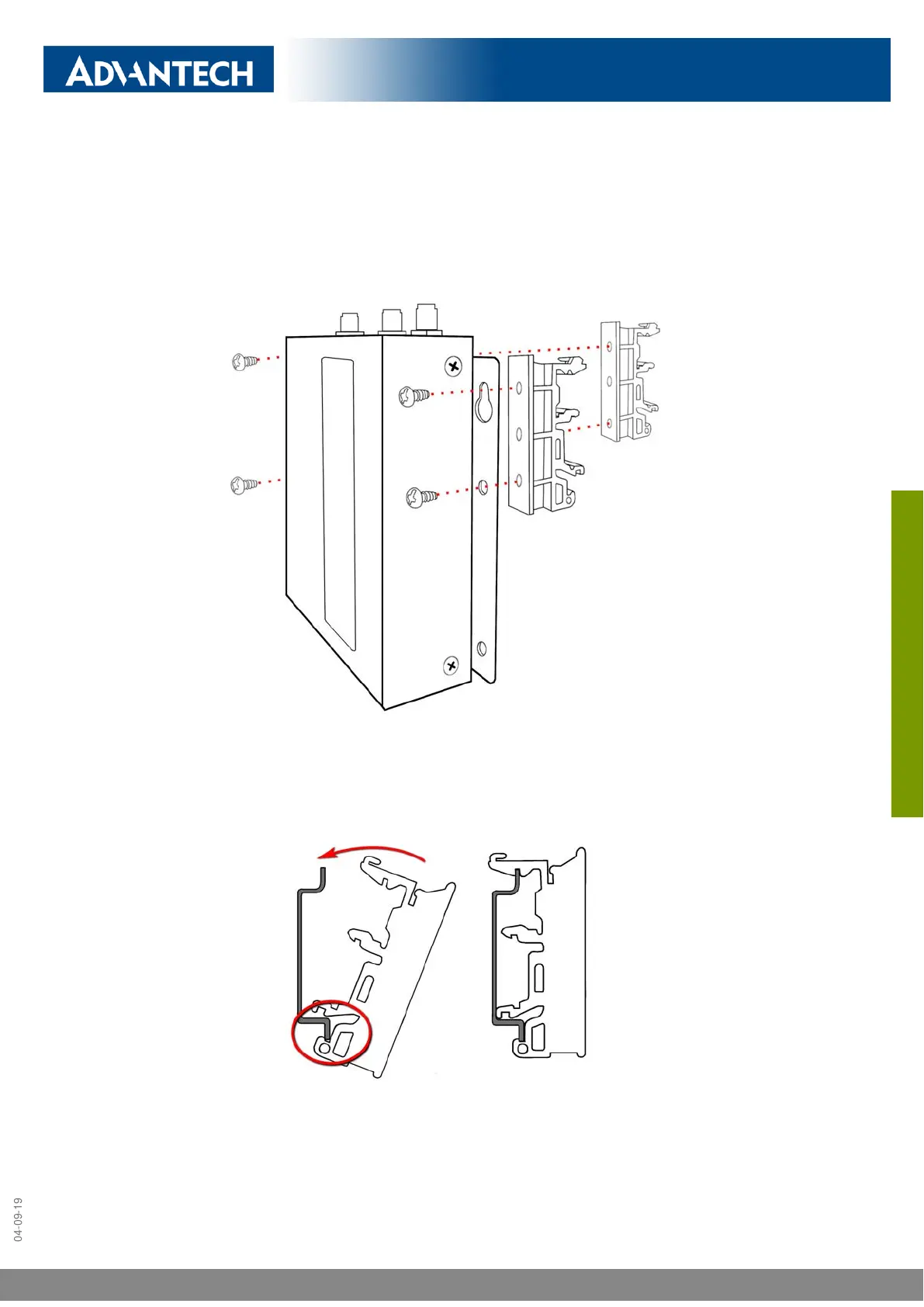

and TS-15 DIN rails. On the picture below is described assembly of the two DIN rail clips to
the router by four screews.
F
igure 19: Installation of the DIN rail clips
Installation of the DIN rail clip to the DIN rail of type TS-35-7,5 is illustrated on the picture
bellow.
F
igure 20: Installation to the DIN rail
