5.1.4 PCI-1604UP

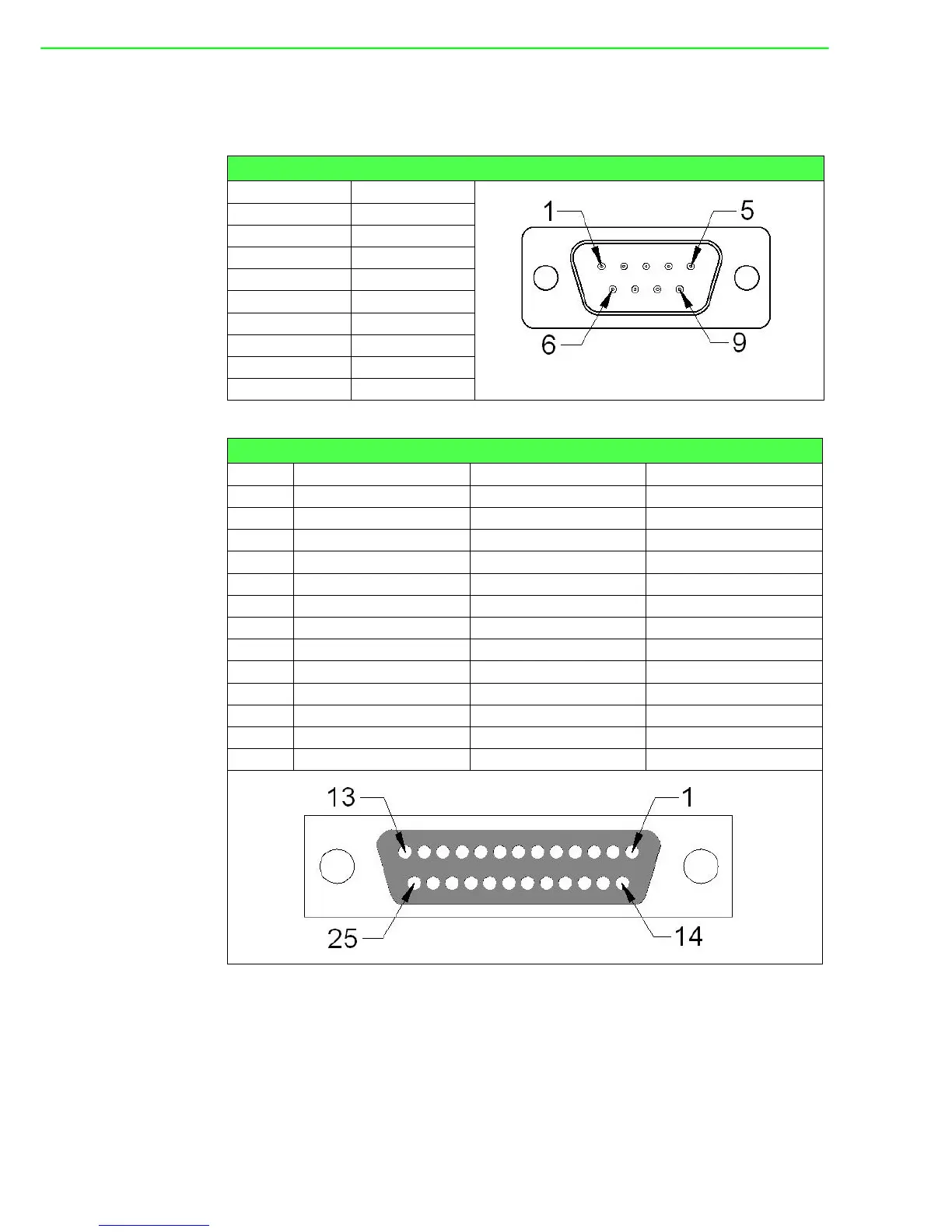

The following tables and figures show the pin assignments of 1 female DB25 connec-
tor on the bracket to two male DB9 for PCI-1604UP card in RS-232 modes.
Table 5.5: PCI-1604UP Male DB9 on cable
Pin RS-232
1DCD
2RxD
3TxD
4DTR
5GND
6DSR
7RTS
8CTS
9RI
Table 5.6: PCI-1604UP Female DB25 on bracket
Pin RS-232 Pin RS-232
1 2_DCD 14 2_DSR
2 2_RxD 15 2_RTS
3 2_TxD 16 2_CTS
4 2_DTR 17 2_RI
5GND 18 -
6- 19 -
7- 20 -
8- 21 -
9 1_DCD 22 1_DSR
10 1_RxD 23 1_RTS
11 1_TxD 24 1_CTS
12 1_DTR 25 1_RI
13 GND
