Chapter 5 Pin Assignments and Wiring
5.1.5 PCI-1610A/B/C
The following tables and figures show the pin assignments of 1 female DB37 connec-
tor on the bracket to male DB9/DB25 for PCI-1610A/B/C cards in RS-232 modes.

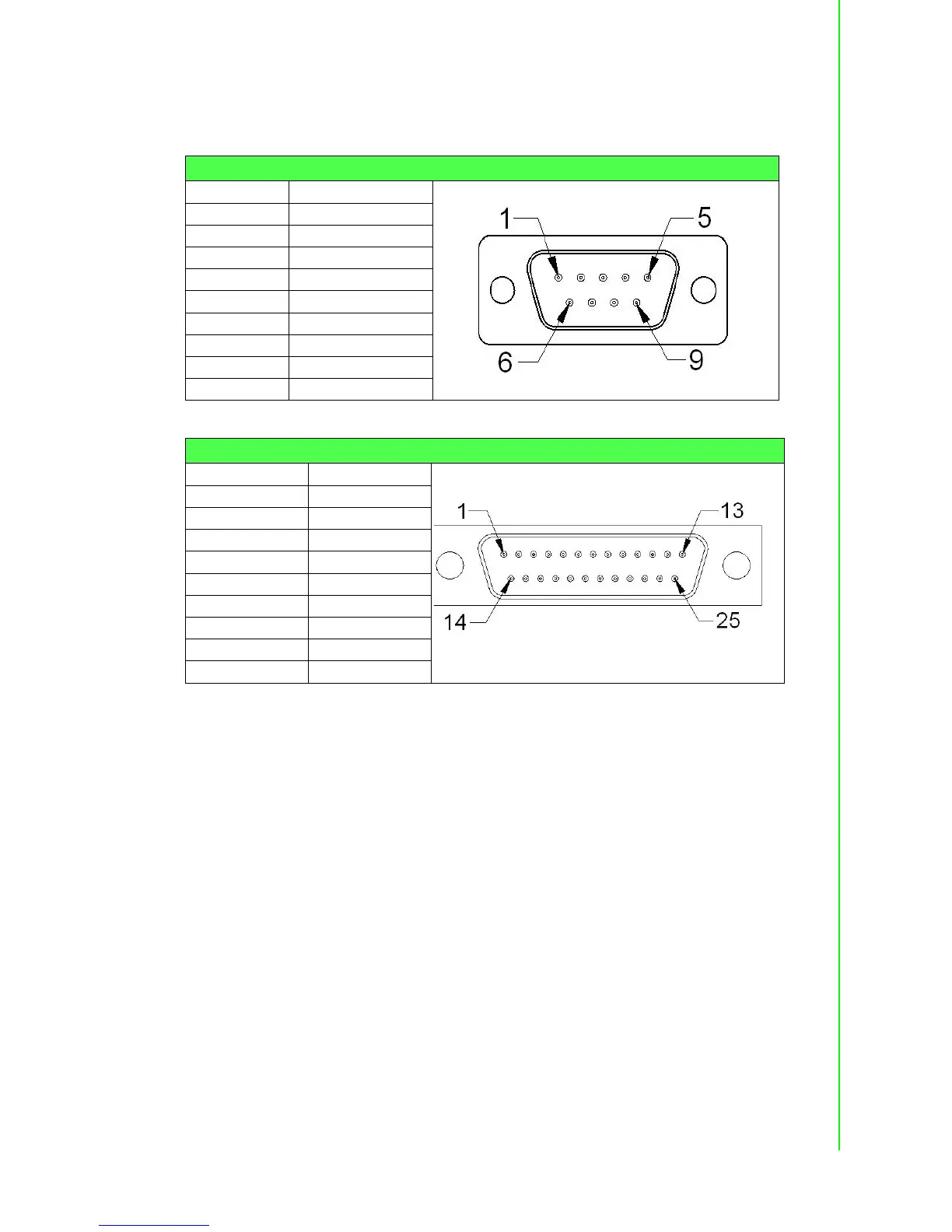

Table 5.7: PCI-1610A/B/C Male DB9 on cable
Pin RS-232
1 DCD
2RxD
3TxD
4DTR
5GND
6DSR
7RTS
8CTS
10 RI
Table 5.8: PCI-1610A/B/C Male DB25 on cable
Pin RS-232
2 TxD
3RxD
4RTS
5CTS
6DSR
7GND
8 DCD
20 DTR
22 RI
