ROM-5620 User Manual 22
4.1.1.3 MIPI DSI to HDMI with ROM-EG56 on LVDS1

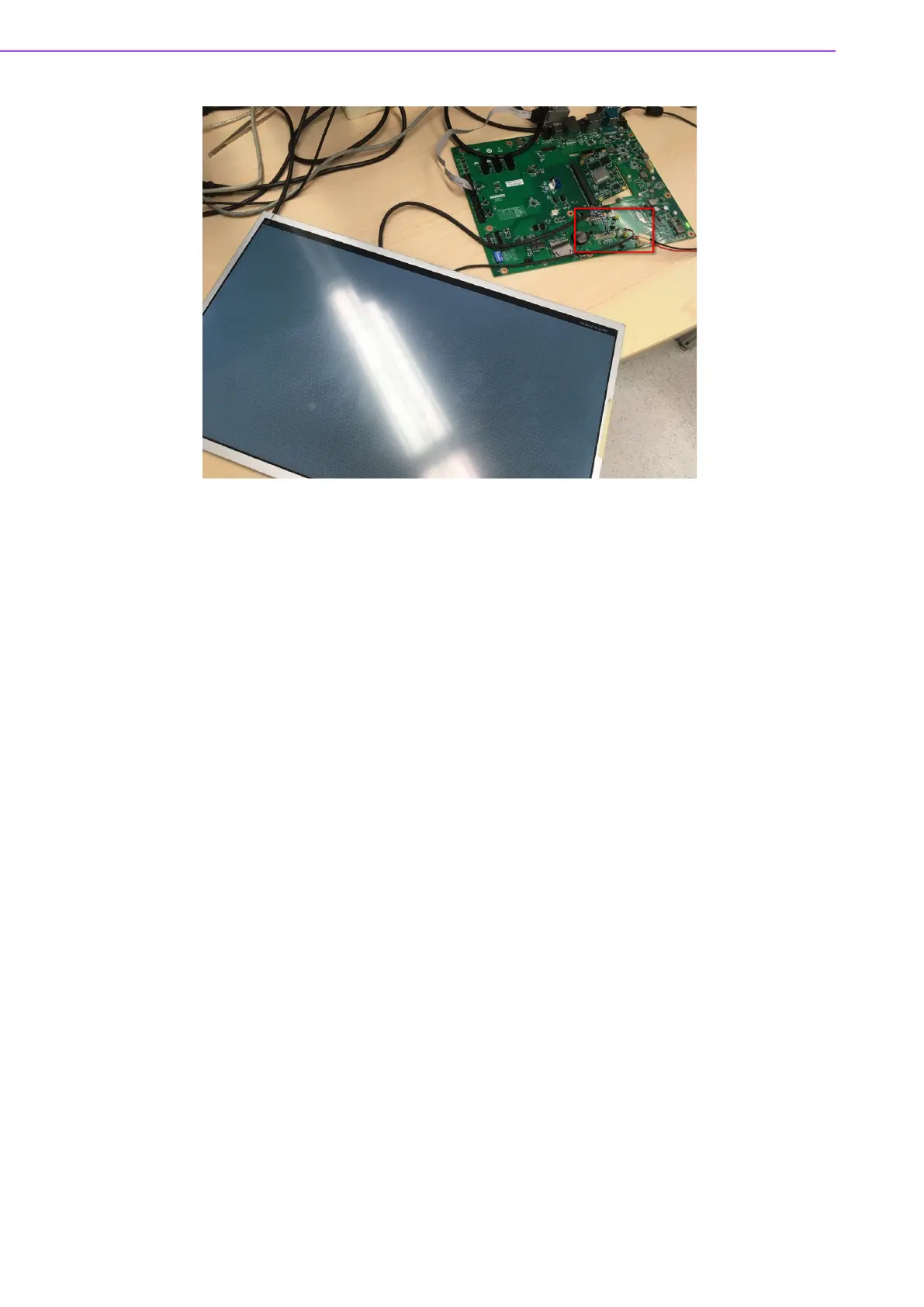

Step 1: Connect ROM-EG56 board with cable (1700030769-01) to LVDS1 and
Backlight cable to LVDS1_BK_PWR.
Step 2: Change LVDS1_VDD0 jumper to (1-2 short), LVDS1_BL jumper to
(1-2 short).
