SPC-800(M) User Manual 14
1.5 I/O Ports Arrangement

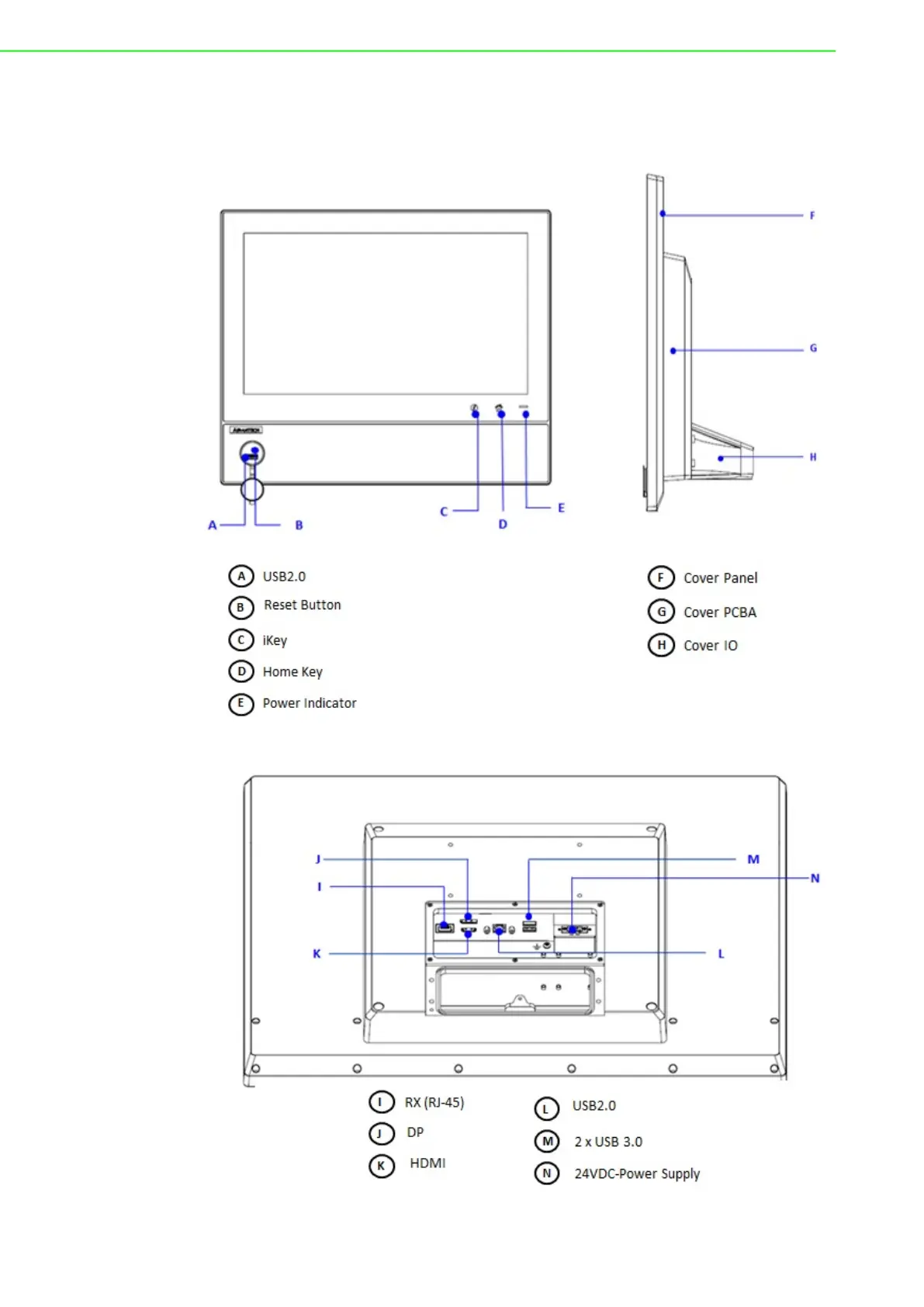

The arrangement of the I/O ports is shown in Figure 1.1.
Figure 1.1 Front view and Side view
Figure 1.2 Rear view for SPC-800-MLAG/SPC-800-MLAP Series
