SPC-800(M) User Manual 30

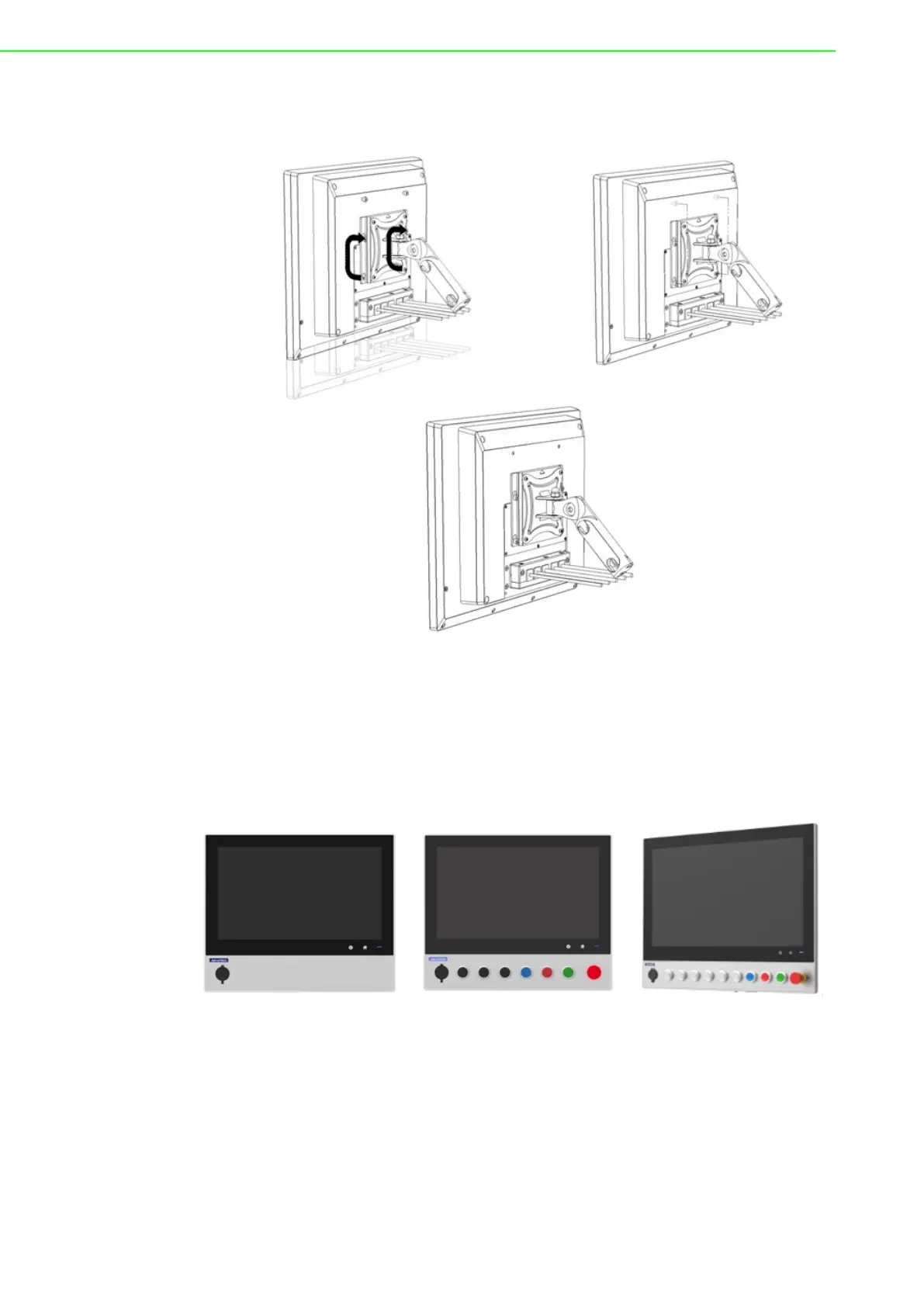

8. Move the unit from downside to upside of VESA kit. And move the upside 2
screws to the screw holes downside of VESA kit. Finally, tighten the 4 screws.
2.4 SPC-800(M) Extension with Operator Controls
The following example shows a SPC-800(M) device with an Extension Unit.
SPC-800(M) device with operator controls extension can order these components
(Push Button, PCBA, terminal plug and Screw) do it by yourself assembly or Com-
prehensive assembly also via Advantech (Build To Order)
To Next Page
