31 SPC-800(M) User Manual
Chapter 2 System Setup

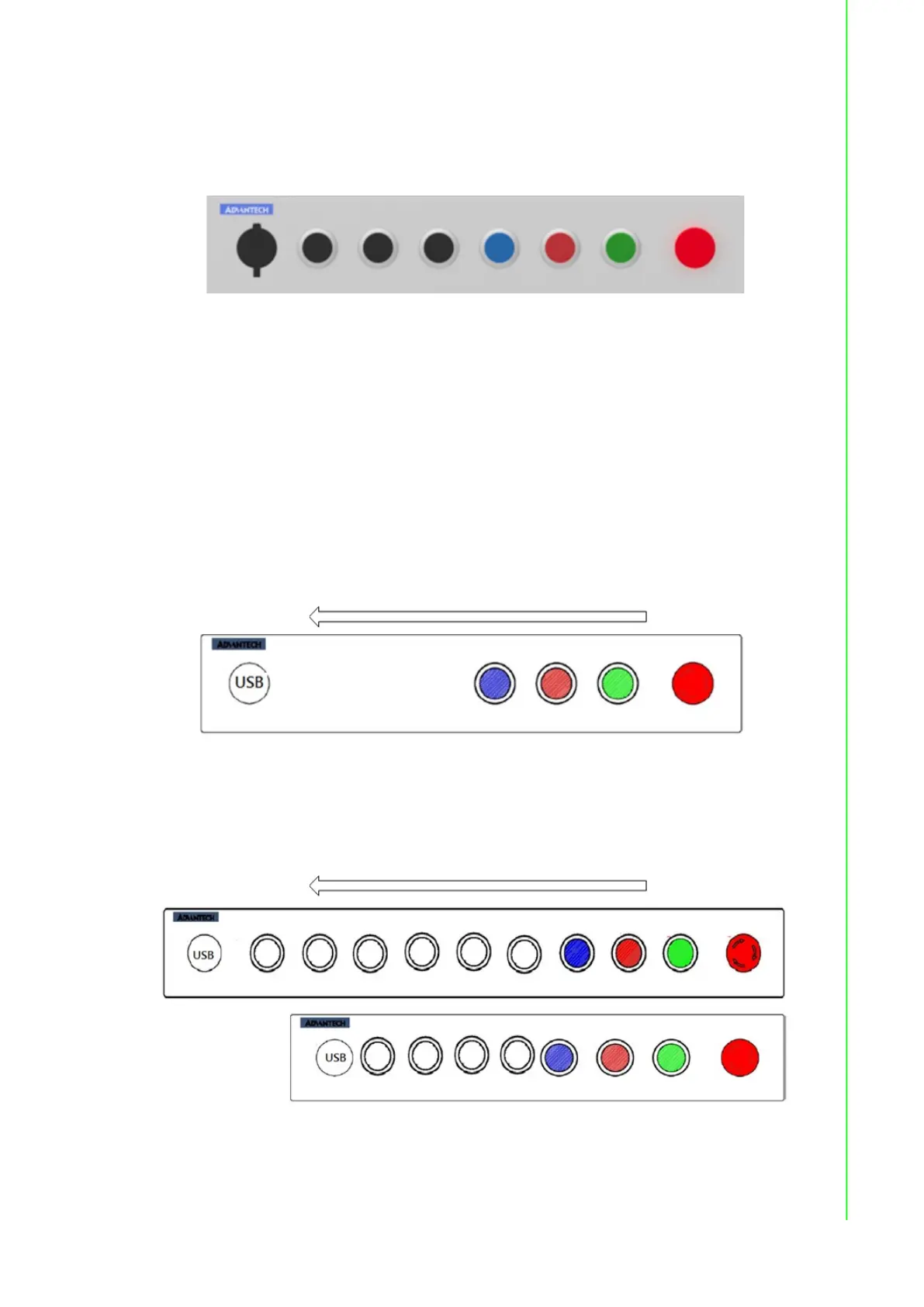

Base Unit design for Extension Unit
The Base Unit design is support to RAFI RAFIX 22 Buttons, and the rightmost button
is reserved for Emergency Stop Button Push-button. And the other side design for
Front USB location.
Customized for your Plant with Operator Controls
Extension Unit Size, SPC-800(M) standard device with an operator is 15” and
21”
Push Button Hole, SPC-800(M) operator controls design has pre-hole
(1.) 15” with seven pre-hole and USB location.
(2.) 21” with ten pre-hole and USB location.
Push Button with Extension Unit(Use four Button), Extension Unit 15” and
21”, base unit operator controls from right to left location design is Emergency
Stop Button, Green Push Button, Red Push Button, Blue Push Button and USB.
Push Button with Extension Unit(Use All Button), Extension Unit 15” and
21”, base unit operator controls from right to left location design is Emergency
Stop Button, Red Push Button, Black Push Button, Blue Push Button, the other
button color is White and USB
USB
2.0
Push
Button
Push
Button
Push
Button
Emergency Stop
Button
