2.1 Introduction
The following figures show the connectors on UNO-2483G/UNO-2473G. The follow-
ing sections give you information about each peripheral.

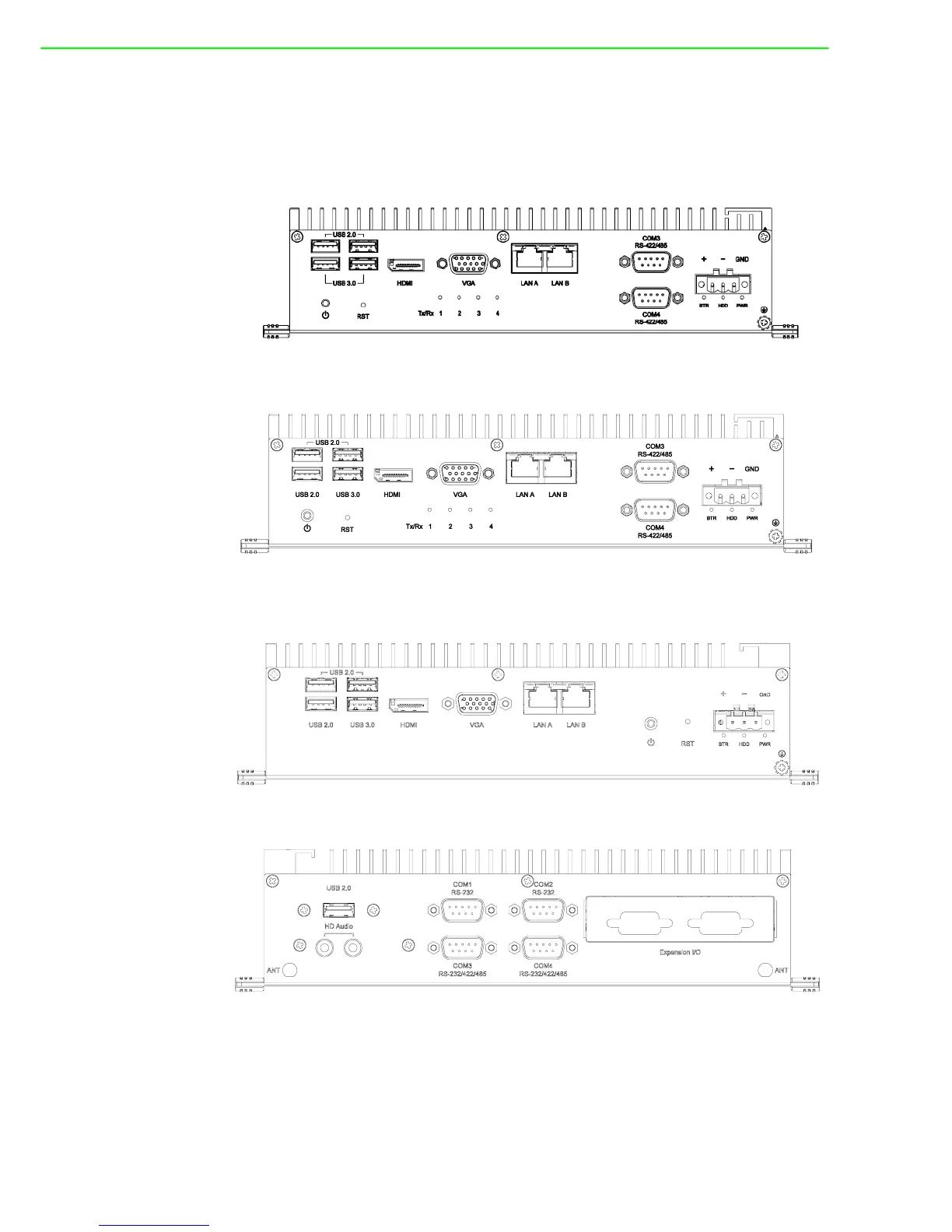

Figure 2.1 Front Panel of UNO-2483G
Figure 2.2 Rear Panel of UNO-2483G/UNO-2473G-E3AE
Figure 2.3 Front Panel of UNO-2473G-J3AE
Figure 2.4 Rear Panel of UNO-2473G-J3AE
