11 UNO-2483G/2473G User Manual
Chapter 2 Hardware Functionality

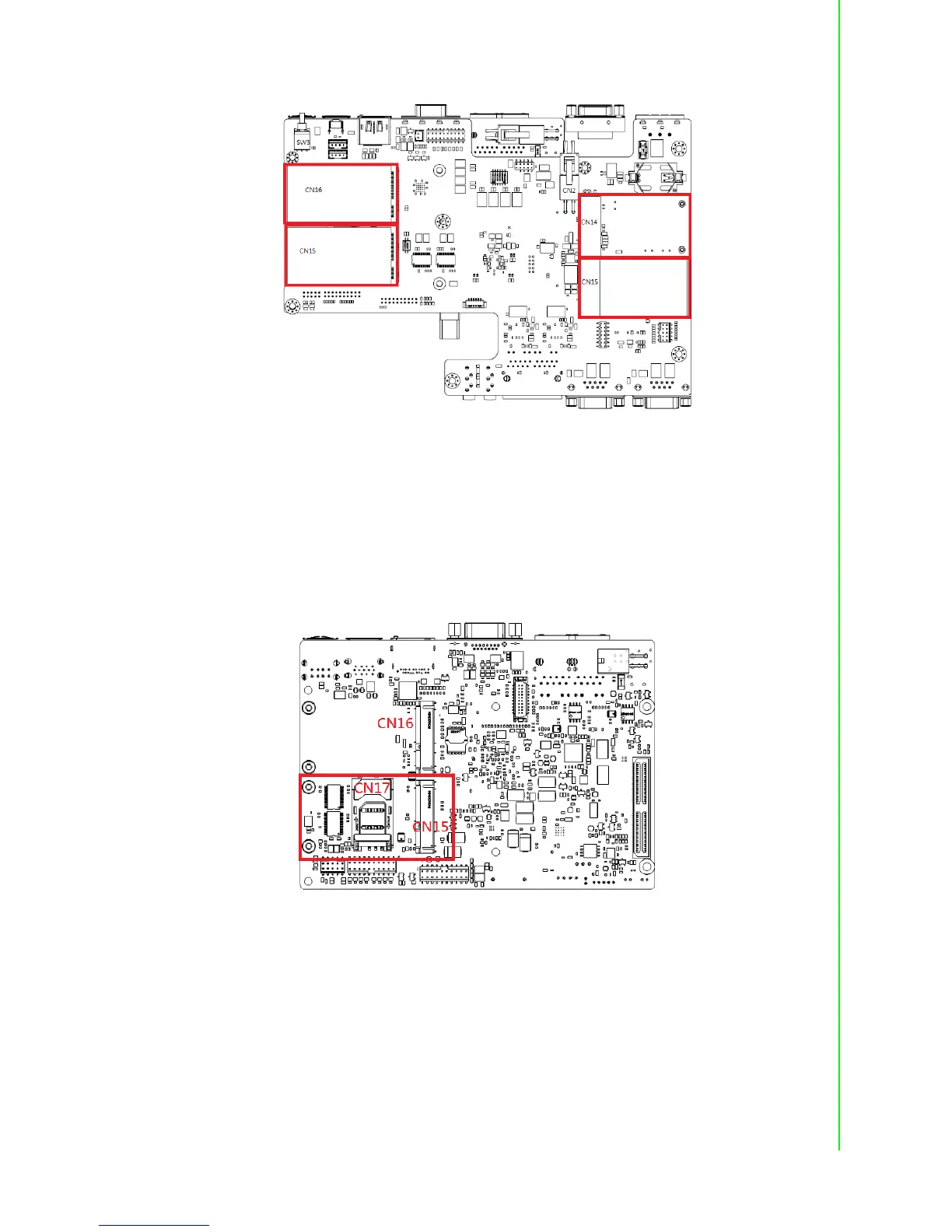

Figure 2.7 UNO-2473G-E3AE mPCIe Location
The UNO-2473G-J3AE supports two sockets for full size PCI Express mini cards.
The first interface, CN16, is the default and defined ONLY for mSATA storage. The
other interface is mainly targeted at supporting iDoor technology/modules for diverse
applications such as isolated COM port, Profibus, WLAN GPRS, 3G, mRAM and
iDoor Module. Users can install the card easily using the optional kit, please refer to
Chapter 3.5 for details.
Figure 2.8 UNO-2473G-J3AE mPCIe Location
