15 UNO-2483G/2473G User Manual
Chapter 3 Initial Setup

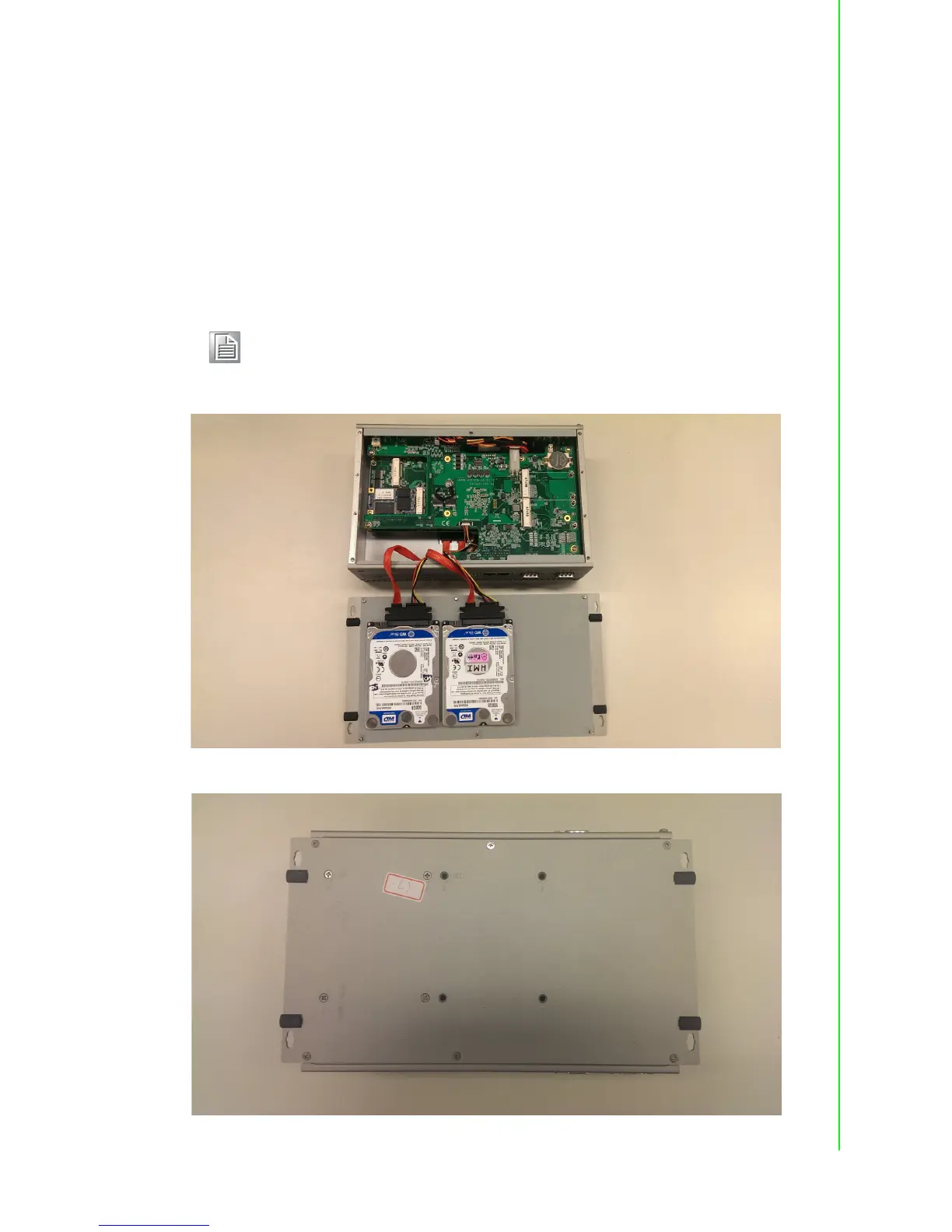

3.4 Installing a Hard Disk
The procedure for installing a hard disk into the UNO-2483G/UNO-2473G is below.
Please follow these steps carefully. Please note the system is not compatible with
+12V HDD. Please use a HDD with lower power input.
1. Remove the power cord.
2. Unscrew the four screws from the bottom cover.
3. Screw HDD to the bottom cover.
4. Connect the SATA signal with power cable (already connected with M/B) to hard
disk. Then connect the other side of the cable to SATA hard disk.
5. Secure the bottom cover with four screws.
Note! The UNO-2473G only has ONE HDD/SSD SATA slot.
