17 UNO-2483G/2473G User Manual
Chapter 3 Initial Setup
Antenna
Please select the necessary specification according to your application.
One of the suggested antenna is 1750002842.
Then follow the below steps for the installation:
1. Unscrew the bottom panel and open it.
2. Remove the hole(s) on the rear panel for antenna installation.
3. Install the internal cable 1750006043 (15cm) on the rear panel.
4. Plug the Wireless module with bracket kit (9656EWMG00E) onto the PCI
Express mini card socket.

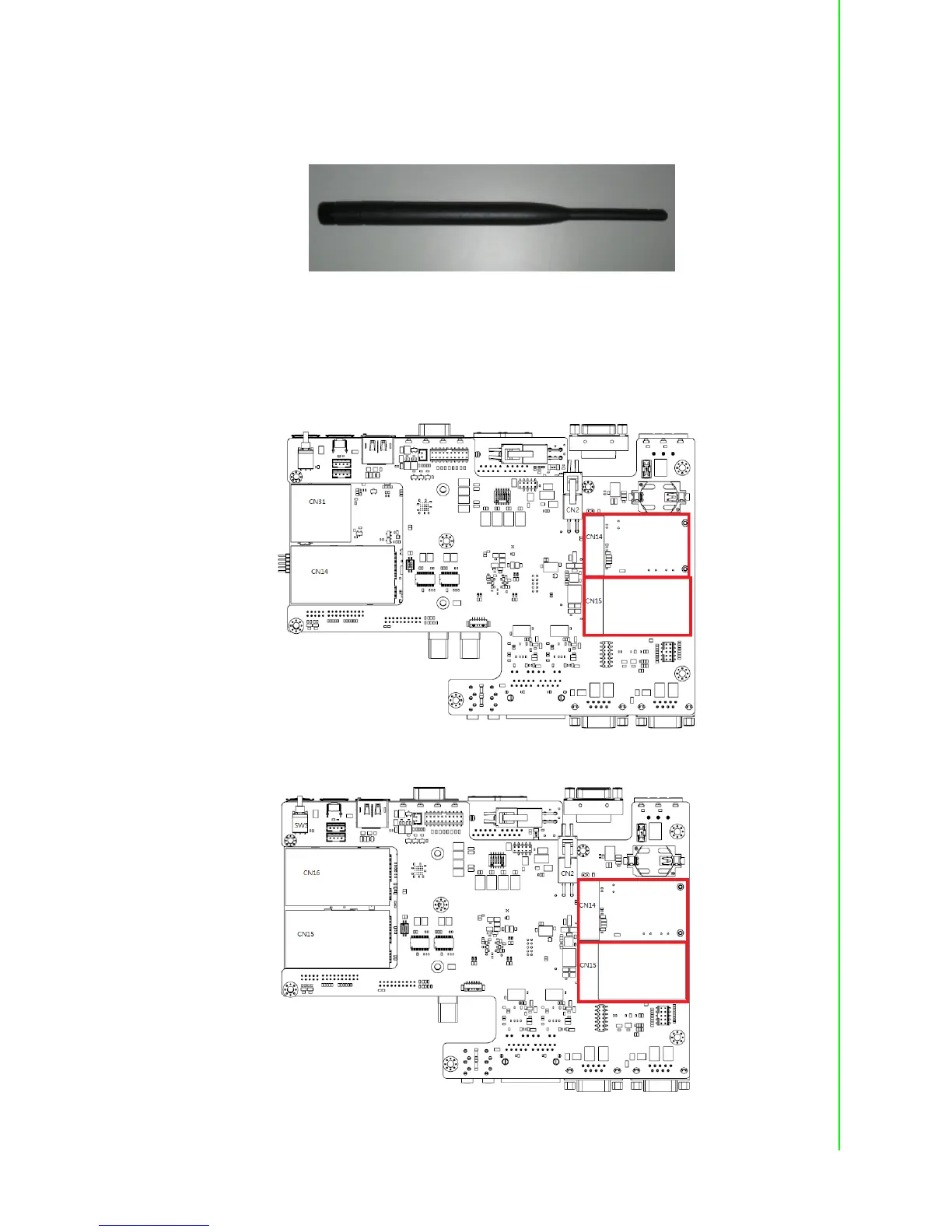

Figure 3.2 UNO-2483G
Figure 3.3 UNO-2473G
