USC-360 User Manual 4
 Touch Panel: Projected capacitive (P-CAP) touch control (flat glass)
 USB: 3 x USB-C (One for DP, one for DC in, one for IO Hub), 2 x USB 3.0, 1 x
USB 2.0 (broadside)
 Audio: 2 x 2W speaker installed. 1 x Line out
 Power Supply: 65W via power adapter
 Bus Expansion: 1 x Mini PCIe for 4G (optional)
 Ethernet: 1 x RJ45 10/100/1000 Mbps (PoE optional) / Onboard WIFI 5+BT
module (optional)
 Operating System: Android 12, Linux
 Cash Drawer: 1 x cash drawer port
 USB-C Input: 20 VDC
 IP Rating: IP65 for front panel
 Dimensions (W x H x D): 381 x 230.4 x 31.5 mm
 Weight: 4 kg (Net); 4.5 kg (Gross)
 Color: Black
 I/O on extension HUB:
UP36 Power USB Hub: 2 x COM, 3 x 12V Power USB, 1 x 24V Power USC, 2 x
USB 2.0, 1 x USB C, 1 x DC IN (powered by 180W adapter)
UP37 COM Port Hub: 4 x COM (RJ-48 connector), 1 x USB C Input, 6 x USB
2.0 (powered by USC-360 65W adapter
1.2.3.2 Environmental Specifications
 Operating Temperature: 0 ~ 40 °C (32 ~ 104°F)
 Relative Humidity: 10 ~ 90% @ 40 °C/104 °F
 Shock: 10G peak acceleration (11 ms duration)
 Vibration: 5 ~ 500 Hz 0.5 Grms, random
 Certification: FCC, CE, CCC, BSMI, UL, CB, BIS
1.2.3.3 Power
 Power Input Voltage: 65W (100-240Vac,47-63Hz,1.5A) power adapter / 180W
by UP36 Hub (100-240Vac,47-63Hz,7.5A) power adapter (optional)
 Power Switch: Orange: standby/Green: power on
1.3 Dimensions

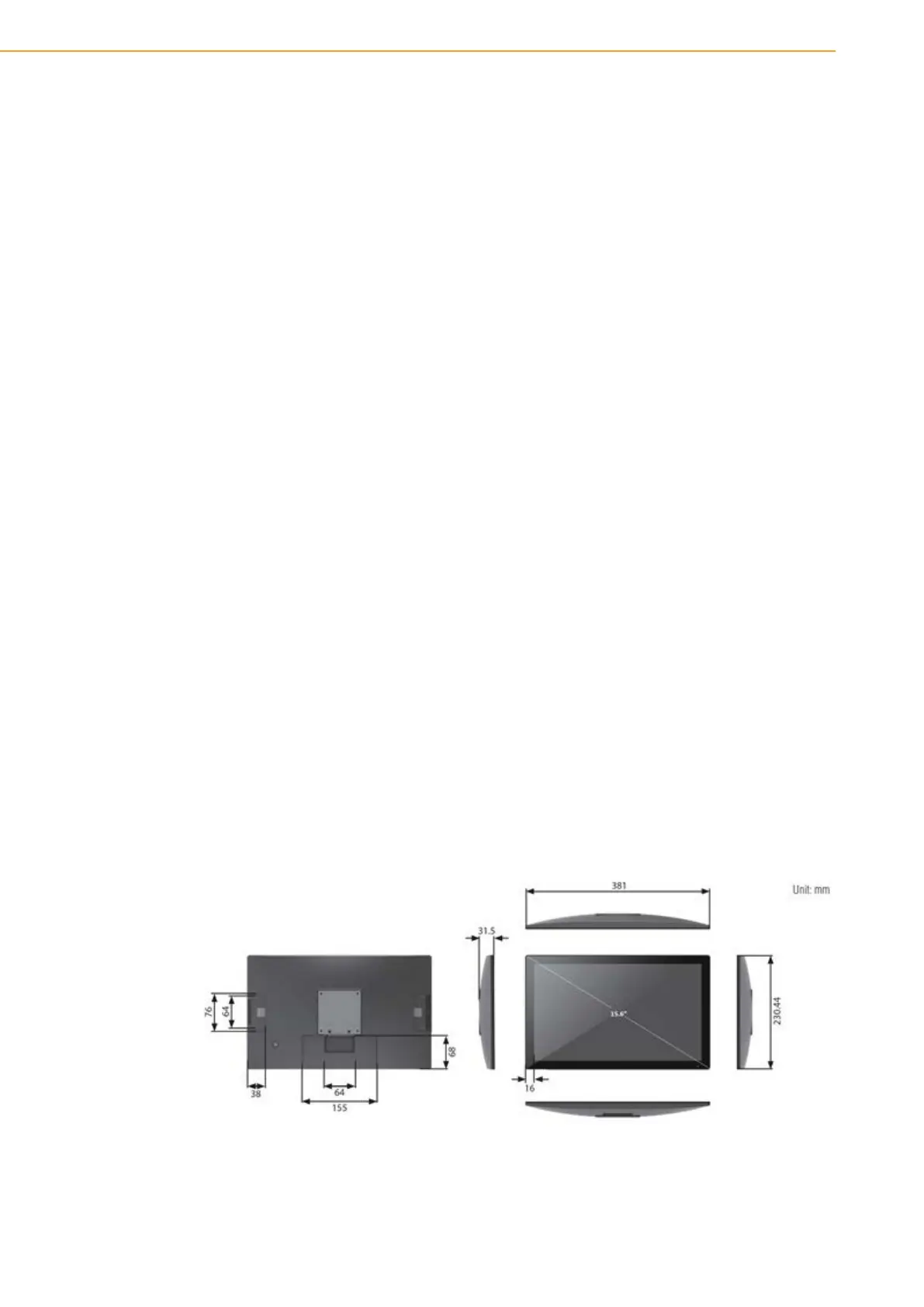

Figure 1.1 USC-360 dimensions
