69 WISE-4000 User Manual
Chapter 4 System Configuration

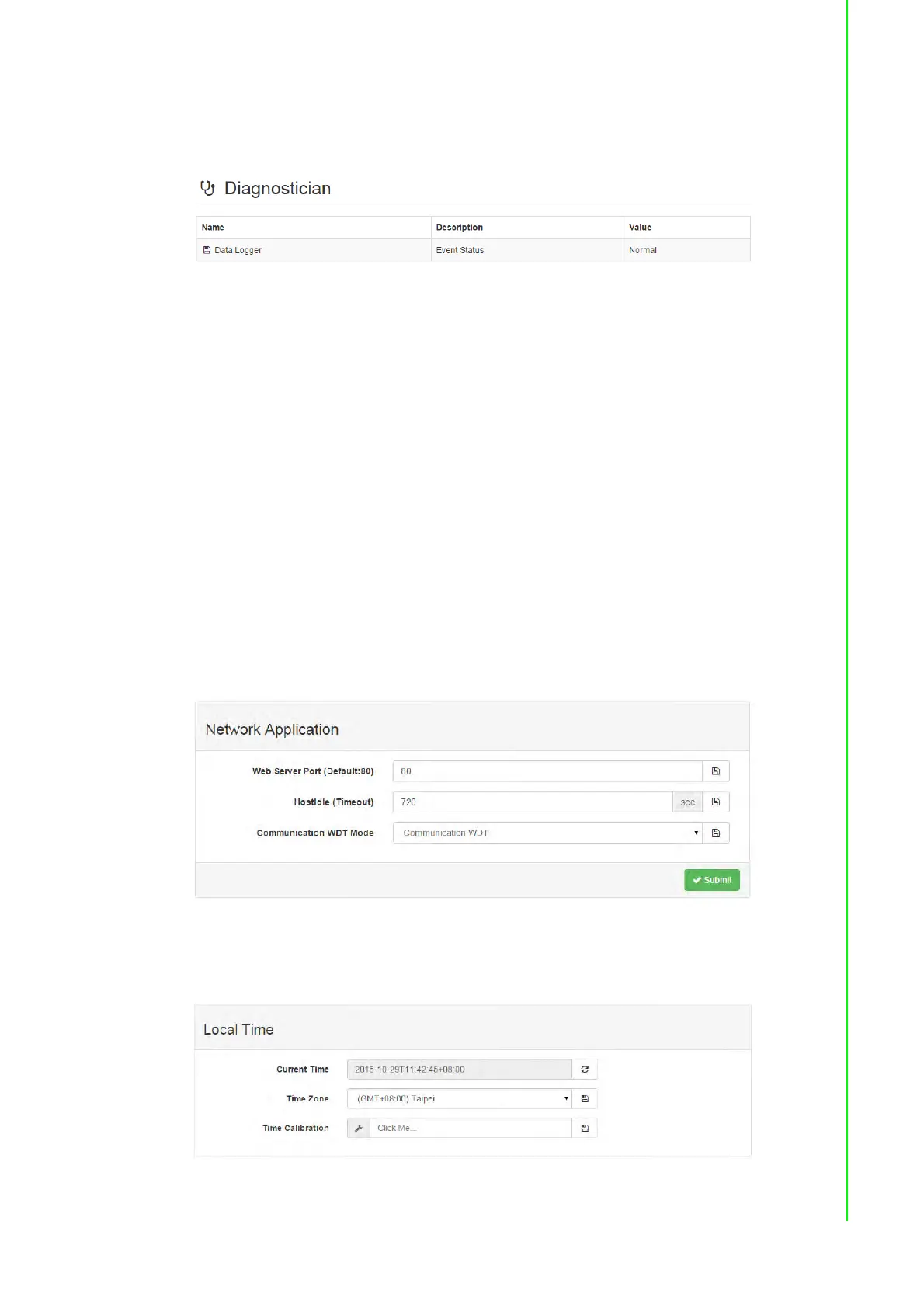

– Diagnostician
WISE modules provide a Diagnostician page for indicating the operating status of the
WISE module. The status of each function is shown for easy troubleshooting.
System Configuration
– Network Application
You configure the Web Server Port, Host Idle (timeout), and decide whether to
enable Communication WDT here. The Web Server Port decides which Ethernet
port can be used for the web service, which includes the web configuration and
RESTful Web API. The default port is 80, and if you change the port number as 8080,
you need to access the module through http://192.168.1.1:8080/config in AP mode
for example.
The Host Idle (timeout) decides the availability of the TCP connection between the
host controller and WISE. MCU-based WISE modules support four TCP connections
at the same time for visiting users. It means WISE can be visited by four TCP hosts
at the same time, and is not able to connect a fifth host. In this case, if one of the
hosts stops communicating with the WISE module for longer than the configured host
idle time, default 720 seconds, for example, the WISE module will close the TCP con-
nection with the host.
The Communication WDT has a Host Idle time, and will be triggered when all TCP
connections are closed. This includes all hosts which visit WISE and also the com-
munication between remote servers like Dropbox or private servers. Once the WDT
is enabled, it will trigger systems events like FSV of output channel or system log.
– Time & Date / SNTP
You can see the current time here, decide which time zone you use, and calibrate the
time by clicking Click Me and reading the time from host devices.
