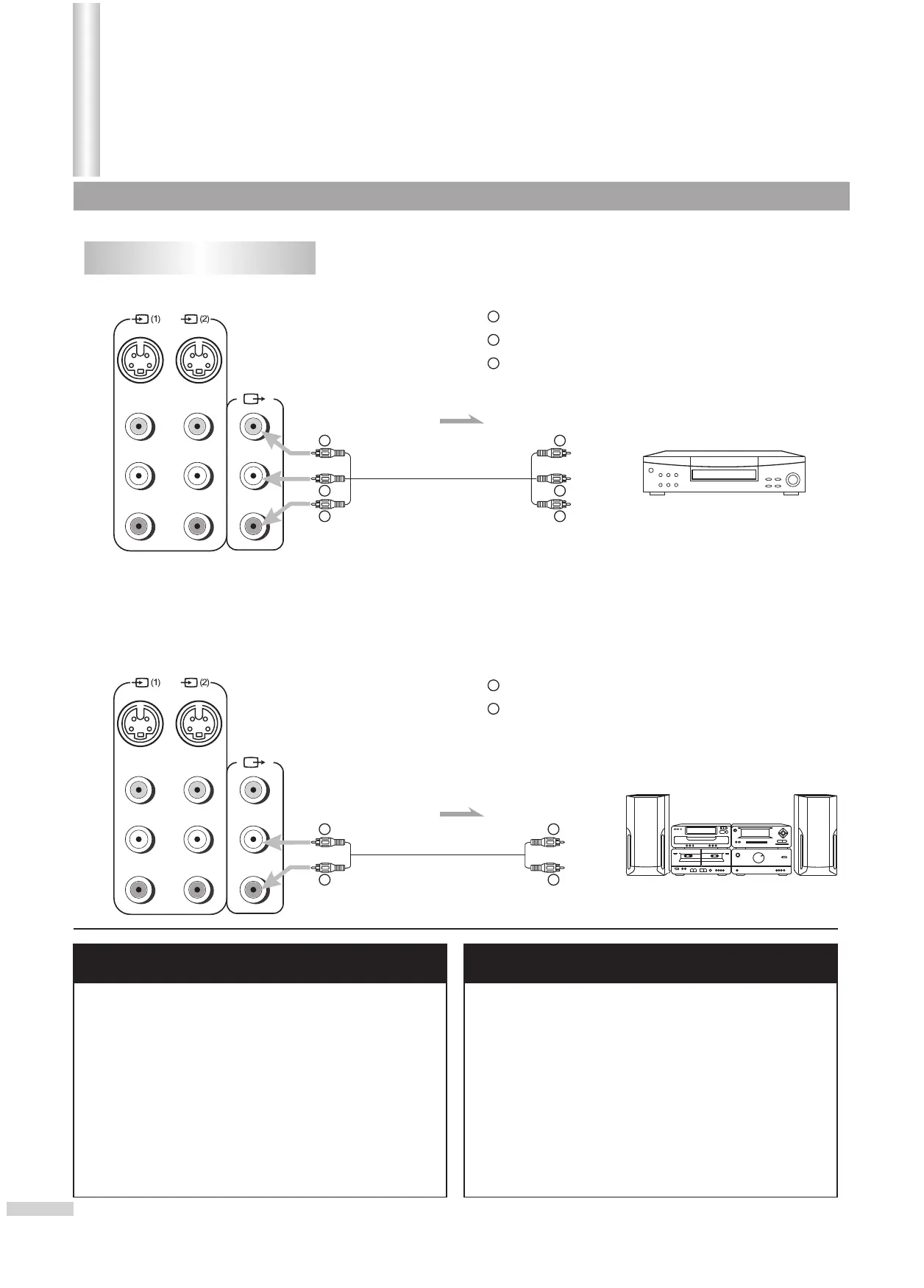

Using MONITOR outputs
Installation(continued)
VIDEO
L
/MONO
AUDIO
R
S-VIDEO
MONITOR
To video
output
To audio
outputs
WW
YY
RR
VCR for recording
WW
YY
RR
Rear terminals
To video
input
To audio
inputs
You can connect the MONITOR output terminals to the VCR to record the program you like.
OR you can connect a stereo system to the MONITOR output terminals on the TV set rear to
enjoy a high quality sound from the stereo system.
VIDEO
L
/MONO
AUDIO
R
S-VIDEO
MONITOR
WW
RR
WW
RR
Rear terminals
To audio
inputs
Yellow (VIDEO)
White (AUDIO L/MONO)
Red (AUDIO R )
WW
YY
RR
Recording TV program Connecting Audio Amplifier
External Amplifier
Connect the MONITOR outputs to VCR
as the figure above.
Select the desired TV program that you
would like to record.
Press "RECORD" button of the VCR to
record TV program.
Connect the audio outputs to audio
amplifier as the figure above.
Set amplifier volume to minimum.
Adjust amplifier to a proper volume.
Select the desired TV program that you
would like to amplify.
1
2
3
1
2
3
4
White (AUDIO L/MONO)
Red (AUDIO R )
WW
RR
Signal
Signal
Please refer to the owner's manual of your specific equipment as well.
11
